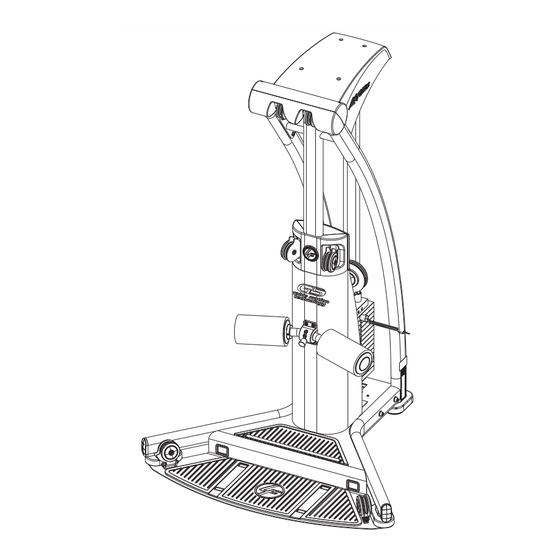

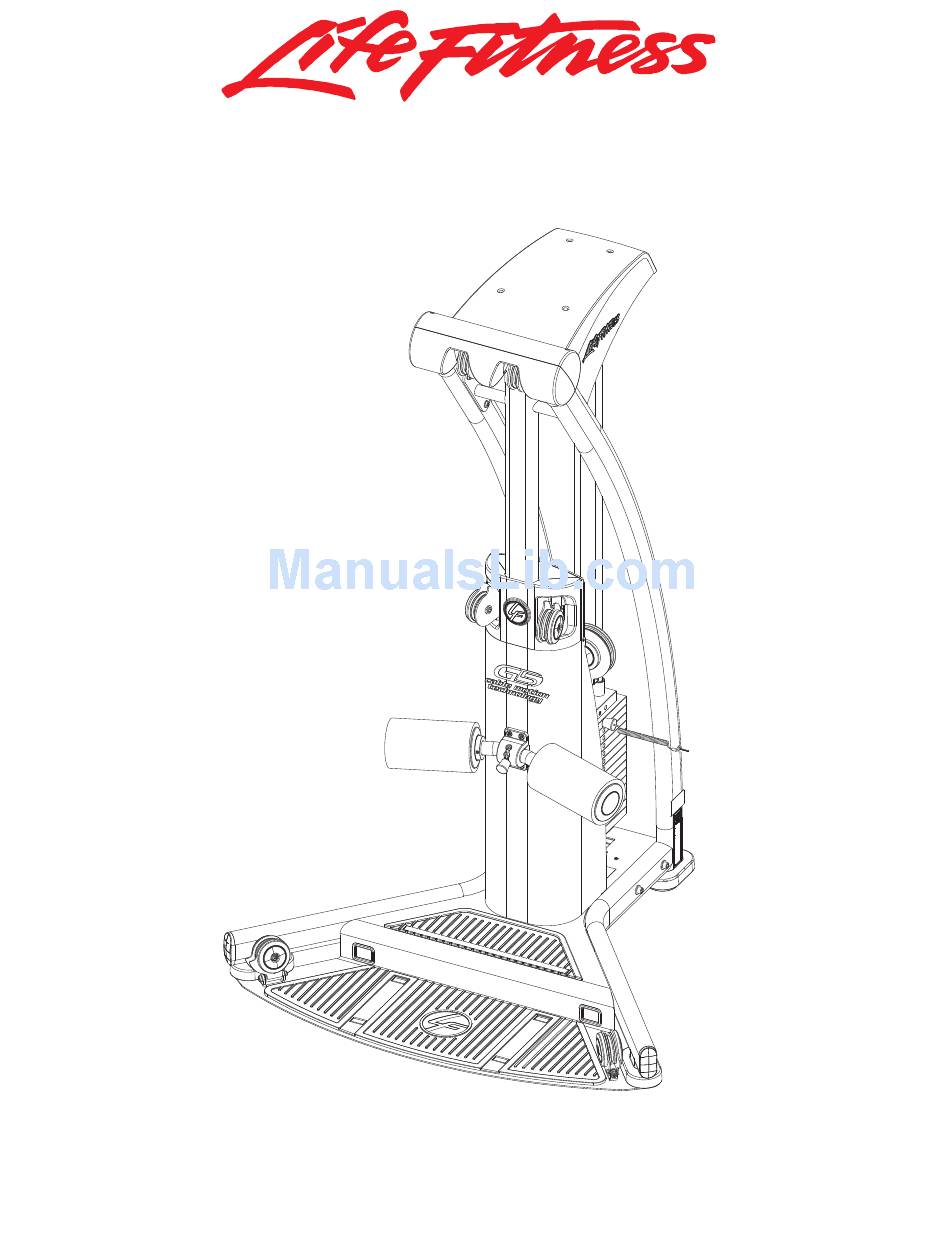

- Page 1 LFG5-003 G5 HOME GYM (VERSION 3) Customer Support Services PARTS MANUAL Page 1...
-
Page 2: Table Of Contents
LFG5-003 G5 HOME GYM ______________________________________ CONTENTS COMPONENT ASSEMBLY COMPONENT ASSEMBLY LEGEND FRONT UPRIGHT LEGEND RIGHT UPRIGHT ASSEMBLY RIGHT BASE ASSEMBLY FOOT PLATE ASSEMBLY LEFT BASE ASSEMBLY LEFT UPRIGHT ASSEMBLY UPPER SWIVEL PULLEY ASSEMBLY UPPER RIGHT PULLEY ASSEMBLY UPPER LEFT PULLEY ASSEMBLY... -
Page 3: Component Assembly
LFG5-003 G5 HOME GYM COMPONENT ASSEMBLY ______________________________________ LEGEND ON PAGE 4 Page 3... -
Page 4: Component Assembly Legend
LFG5-003 G5 HOME GYM COMPONENT ASSEMBLY LEGEND ______________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 8188301 PTD ASSY, FRONT UPRIGHT 8349801 ASSY, RIGHT UPRIGHT 8350001 ASSY, G5 BASE RIGHT 8210501 ASSY, G5, FOOT PLATE WITH MATS 8350101 ASSY, G5 BASE LEFT... - Page 5 LFG5-003 G5 HOME GYM ______________________________________ FRONT UPRIGHT ASSEMBLY - 8188301 LEGEND ON PAGE 6 Page 5...
-
Page 6: Front Upright Legend
LFG5-003 G5 HOME GYM ______________________________________ FRONT UPRIGHT ASSEMBLY LEGEND ITEM NO. QTY. PART NO. DESCRIPTION 8297601 WLDMT, FRONT UPRIGHT 3258301 PULLEY, 88.9 OD X 10 X 25.4 6533501 BRKT, L 2-3/8 X 1 X 1 3241401 WASHER, FLAT 8350801 ASSY, MID PULLEY RIGHT 3256214 SCREW, M10 X1.5 85MM... -
Page 7: Right Upright Assembly
LFG5-003 G5 HOME GYM ______________________________________ RIGHT UPRIGHT ASSEMBLY - 8349801 ITEM NO. QTY. PART NO. DESCRIPTION 8349801 ASSY., G5 RIGHT SIDE UPRIGHT 7763001 FOOT, 2.50 X 4.49 FLOV 3256202 SCREW, M10 X1.5 25MM 3242002 NUT, M10 X 1.5 HEX NYLOCK... -
Page 8: Right Base Assembly
LFG5-003 G5 HOME GYM ______________________________________ RIGHT BASE ASSEMBLY - 8350001 ITEM NO. QTY. PART NO. DESCRIPTION 8350001 ASSY, G5 BASE RIGHT 8167401 CAP, 50x100x2.5 Page 8... -
Page 9: Foot Plate Assembly
LFG5-003 G5 HOME GYM ______________________________________ FOOT PLATE ASSEMBLY - 8210501 ITEM NO. QTY. PART NO. DESCRIPTION 8210501 ASSY., G5, FOOT PLATE 7775301 GROMMET, CABLE HOLE 8206501 RUBBER, G5 FLOOR MAT UPPER 8189301 RUBBER, G5 FLOOR MAT LOWER Page 9... -
Page 10: Left Base Assembly
LFG5-003 G5 HOME GYM ______________________________________ LEFT BASE ASSEMBLY - 8350101 ITEM NO. QTY. PART NO. DESCRIPTION 8350101 ASSY, G5 BASE LEFT 8167401 CAP, 50x100x2.5 Page 10... -
Page 11: Left Upright Assembly
LFG5-003 G5 HOME GYM ______________________________________ LEFT UPRIGHT ASSEMBLY - 8349901 ITEM NO. QTY. PART NO. DESCRIPTION 8349901 ASSY., G5 LEFT SIDE UPRIGHT 7763001 FOOT, 2.50 X 4.49 FLOV 3256202 SCREW, M10 X1.5 25MM 3242002 NUT, M10 X 1.5 HEX NYLOCK... -
Page 12: Upper Swivel Pulley Assembly
LFG5-003 G5 HOME GYM ______________________________________ UPPER SWIVEL PULLEY ASSEMBLY - 8349701 ITEM NO. QTY. PART NO. DESCRIPTION 8187501 WLDMT, UPPER PULLEY 8350601 ASSY, UPPER PULLEY RIGHT 8350701 ASSY, UPPER PULLEY LEFT 3102514 WASHER, FLAT 3/8" SAE ST ZN 3256213 SCREW, M10 X1.5 80MM 3242002 NUT, M10 X 1.5 HEX NYLOCK... -
Page 13: Upper Right Pulley Assembly
LFG5-003 G5 HOME GYM ______________________________________ UPPER RIGHT PULLEY ASSEMBLY - 8350601 ITEM NO. QTY. PART NO. DESCRIPTION 8276501 WLDMT, UPPER SWIVEL PULLEY, RIGHT 3261501 BEARING, FLANGED BALL, 10MM ID X 19MM OD 3258301 PULLEY, 88.9 OD X 10 X 25.4 3256206 SCREW, M10 X1.5 45MM... -
Page 14: Upper Left Pulley Assembly
LFG5-003 G5 HOME GYM ______________________________________ UPPER LEFT PULLEY ASSEMBLY - 8350701 ITEM NO. QTY. PART NO. DESCRIPTION 8149501 WLDMT, UPPER SWIVEL PULLEY, LEFT 3258301 PULLEY, 88.9 OD X 10 X 25.4 3261501 BEARING, FLANGED BALL, 10MM ID X 19MM OD 3102514 WASHER, FLAT 3/8"... -
Page 15: Guide Rod Assembly
LFG5-003 G5 HOME GYM ______________________________________ GUIDE ROD ASSEMBLY - 8264702 ITEM NO. QTY. PART NO. DESCRIPTION 8166902 GUIDE ROD, HOLLOW, 19MM 8264601 PLUG, GUIDE ROD Page 15... -
Page 16: Head Plate Pulley Assembly
LFG5-003 G5 HOME GYM ______________________________________ HEAD PLATE PULLEY ASSEMBLY - 8350401 ITEM NO. QTY. PART NO. DESCRIPTION 8288201 BRACKET, 6 PULLEY 8229001 COVER, PULLEY, FULL 8315701 THREADED PLUG, G5 3102702 NUT, HEX 3102514 WASHER, FLAT 3/8" SAE ST ZN 3242004 NUT, M8 X 1.25 HEX NYLOCK... -
Page 17: Thigh Hold Down Assembly
LFG5-003 G5 HOME GYM ______________________________________ THIGH HOLD DOWN ASSEMBLY - 8350501 ITEM NO. QTY. PART NO. DESCRIPTION 8259101 CLAMP, THIGH HOLD FRONT 8263001 WLDMNT, THIGH HOLD TUBE 7621301 NUT, SPIDER 3/8-16 7322301 PLATE, 1.97 OD X .44 ID 10GA 3102909 .375 - 16 X 1.00 HEX HEAD BOLT... -
Page 18: Front Shroud Assembly
LFG5-003 G5 HOME GYM ______________________________________ FRONT SHROUD ASSEMBLY - 8317801 ITEM NO. QTY. PART NO. DESCRIPTION 8317801 ASSY., FRONT SHROUD 7762801 LABEL, G5 CM TECHNOLOGY Page 18... -
Page 19: Floating Pulley Assembly
LFG5-003 G5 HOME GYM ______________________________________ FLOATING PULLEY ASSEMBLY - 8264801 ITEM NO. QTY. PART NO. DESCRIPTION 8265001 WLDMT, G5, FLOATING PULLEY 8264901 SHEET, FLOATING 7630101 RETAINER, CM/MJ, PULLEY 3258301 PULLEY, 88.9 OD X 10 X 25.4 8229001 COVER, PULLEY, FULL 3256207 SCREW, M10 X1.5 50MM... -
Page 20: Lower Right Pulley Assembly
LFG5-003 G5 HOME GYM ______________________________________ LOWER RIGHT PULLEY ASSEMBLY - 8350201 ITEM NO. QTY. PART NO. DESCRIPTION 8258701 WLDMNT, LOWER SWIVEL PULLEY, RIGHT 3258301 PULLEY, 88.9 OD X 10 X 25.4 3261501 BEARING, FLANGED BALL, 10MM ID X 19MM OD 8229001 COVER, PULLEY, FULL 3256208 SCREW, M10 X1.5 55MM... -
Page 21: Lower Left Pulley Assembly
LFG5-003 G5 HOME GYM ______________________________________ LOWER LEFT PULLEY ASSEMBLY - 8350301 ITEM NO. QTY. PART NO. DESCRIPTION 8258601 WLDMNT, LOWER SWIVEL PULLEY, LEFT 3258301 PULLEY, 88.9 OD X 10 X 25.4 8229001 COVER, PULLEY, FULL 7630101 RETAINER, CM/MJ, PULLEY 3256208 SCREW, M10 X1.5 55MM 7335401 NUT, M10 X 1.5 SOCKET HEAD... -
Page 22: Right Bottom Plate Assembly
LFG5-003 G5 HOME GYM ______________________________________ RIGHT BOTTOM PLATE ASSEMBLY - 8344601 ITEM NO. QTY. PART NO. DESCRIPTION 8344601 PLATE ASSY. , REAR BOTTOM 8326901 LABEL, WARNING, LOCK OUT Page 22... -
Page 23: Left Bottom Plate Assembly
LFG5-003 G5 HOME GYM ______________________________________ LEFT BOTTOM PLATE ASSEMBLY - 8344501 ITEM NO. QTY. PART NO. DESCRIPTION 8344501 PLATE ASSY., REAR BOTTOM 8326901 LABEL, WARNING, LOCK OUT Page 23... -
Page 24: Right Mid Pulley Assembly
LFG5-003 G5 HOME GYM ______________________________________ RIGHT MID PULLEY ASSEMBLY - 8350801 ITEM NO. QTY. PART NO. DESCRIPTION 8206101 WLDMNT, MID SWIVEL PULLEY, RIGHT 3258301 PULLEY, 88.9 OD X 10 X 25.4 3256207 SCREW, M10 X1.5 50MM 8229001 COVER, PULLEY, FULL... -
Page 25: Left Mid Pulley Assembly
LFG5-003 G5 HOME GYM ______________________________________ LEFT MID PULLEY ASSEMBLY - 8350901 ITEM NO. QTY. PART NO. DESCRIPTION 8149401 WLDMNT, MID SWIVEL PULLEY, LEFT 8229001 COVER, PULLEY, FULL 7630101 RETAINER, CM/MJ, PULLEY 3256207 SCREW, M10 X1.5 50MM 3258301 PULLEY, 88.9 OD X 10 X 25.4... -
Page 26: Cables
LFG5-003 G5 HOME GYM ______________________________________ CABLES ITEM NO. 201.97" 73" QTY. PART NO. DESCRIPTION 8285901 CABLE, BS-BS, T2 X 5130MM 8285902 CABLE, BS-BS, T2, X 5634MM 8286101 CABLE, BS-TP1, T2, 73 Page 26 221.81"... -
Page 27: Quick Connect Assembly
LFG5-003 G5 HOME GYM ______________________________________ QUICK CONNECT ASSEMBLY - 7872601 ITEM NO. QTY. PART NO. DESCRIPTION 7726201 COUPLER, QUICK CONNECT 7726401 HSNG, QUICK CONNECT 7726301 SLEEVE, QUICK CONNECT 3249901 SPRING, COMPRESSION 3250002 M5 X 0.8 HXS SOC CS ST BZ X 8... -
Page 28: Supplied Accessories
LFG5-003 G5 HOME GYM ______________________________________ SUPPLIED ACCESSORIES ITEM NO. QTY. PART NO. DESCRIPTION 8140701 HANDLE AND STRAP ASSY 7 INCH STRAP 8140702 HANDLE AND STRAP ASSY 12 INCH STRAP 7745501 HANDLE, STRAP ADJUSTABLE 8289001 DVD, G5 8288601 ASSY THIGH STRAP... -
Page 29: Hardware Bags
LFG5-003 G5 HOME GYM ______________________________________ HARDWARE BAGS IF HARDWARE BAG/S ARE MISSING AT INSTALL, ORDER NEEDED HARDWARE BAG/S: 8548001 8345501 8345601 QTY. PART NO. 8345501 8345601 KIT, BLISTER PACK SET G5 (Includes both packs shown below) 10-0059-072( 3226001) 6-20 SCREW, PHILLIPS PAN... -
Page 30: Image
LFG5-003 G5 HOME GYM ______________________________________ IMAGE LFADJ-002 BENCH NOT INCLUDED Page 30... -
Page 31: Spec Sheet
LFG5-003 G5 HOME GYM ______________________________________ SPEC PAGE ITEM CODE LFG5-003 PACKAGING BOX 1: LFG5-103 WEIGHT: 247 Lbs. DIMENSIONS: 87” L x 54” W x 12” H BOX 2: LFG5-203 WEIGHT: 245 Lbs. DIMENSIONS: 87” L x 53” W x 12.5” H BOXED WEIGHT PLATES: 7954901 (Qty.
