Related Manuals for Kunzle & Tasin VEGA

Summary of Contents for Kunzle & Tasin VEGA

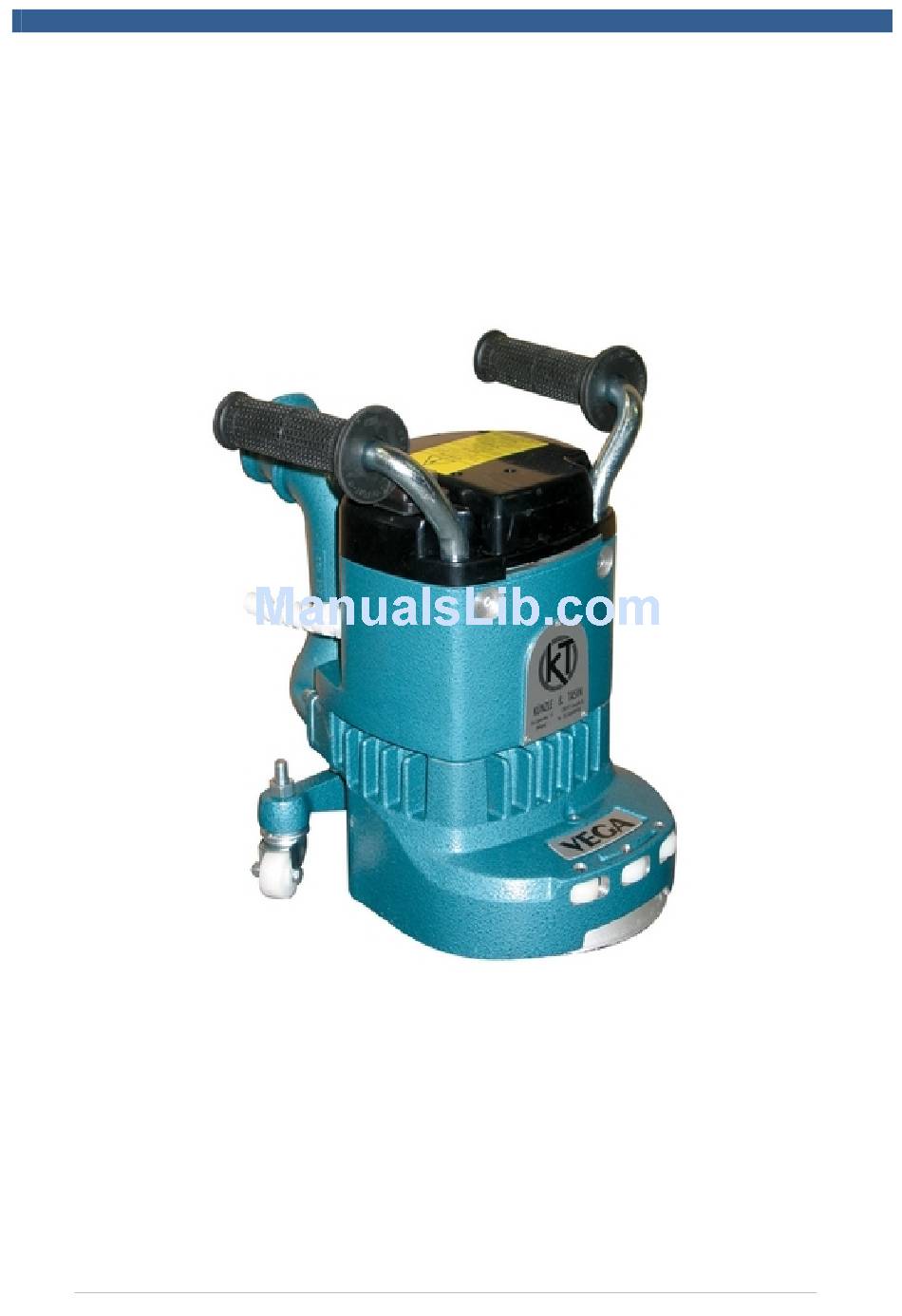

  • Page 1 VEGA EDGE SANDER FOR WOOD USER & MAINTENANCE MANUAL...
  • Page 2 VEGA User Manual_ March 2013 Edition Foreword This manual contains important information on the safe use and operation of this machine. Failure to read this manual before operating, adjusting or servicing this machine could cause injury or damage to persons or objects.

  • Page 3: Table Of Contents

    VEGA User Manual_ March 2013 Edition Contents Key for machine symbols Operator safety instructions Storage Transporting and handling the machine Introduction Information on safe use Correct use Machine data plate Placing into service Instructions on electrical connection Cables, extensions and plugs...

  • Page 4: Key For Machine Symbols

    HAZARD: Failure to read the VEGA machine manual before operating, adjusting or performing maintenance operations on the machine could cause injury or damage to persons or objects. Anyone operating the machine should understand how to use and operate it before starting it up.

  • Page 5: Storage

    If a situation arises which has not been described in this manual contact your retailer or Kunzle & Tasin s.r.l. Correct use The VEGA edge sander is designed to dry sand wooden floors. Any other use without the consent of the manufacturer is prohibited.

  • Page 6: Machine Data Plate

    VEGA User Manual_ March 2013 Edition Introduction Machine data plate The following information can be found on the machine data plate: 1. Machine model 2. Safety symbols 3. Motor power 4. Frequency 5. Supply voltage 6. Name of manufacturer 7. Country of manufacture 8.

  • Page 7: Cables, Extensions And Plugs

    VEGA User Manual_ March 2013 Edition Placing into service Cables, extensions and plugs Only use approved cables. The maximum recommended cable length is 7m; for greater lengths use cables with a larger cross-section. CAUTION Using the machine with unsuitable cable cross-sections and/or excessively long cables may cause injury or damage to people or objects.

  • Page 8: Compliance With Safety Measures And Warnings

    VEGA User Manual_ March 2013 Edition Recommendations on prevention measures for users Personal safety measures Lengthy exposure to noise levels during sanding operations may damage the hearing. WARNING Always use ear protectors during sanding operations. CAUTION Never become distracted during sanding operations, check what is happening continually.

  • Page 9: Instructions On Correct Machine Use

    VEGA User Manual_ March 2013 Edition Recommendations on prevention measures for users Compliance with safety measures and warnings Injury or damage may occur if the sander runs over the power supply cable and it HAZARD becomes damaged. Keep the cable away from the lower part of the machine to avoid contact with the abrasive.

  • Page 10: Machine Specifications

    VEGA User Manual_ March 2013 Edition Machine specifications Abrasive disc size Ø 178mm Disc size Ø 178mm Disc speed 3000 revs/min Motor speed 11000 revs/min Motor 230V ∼ 50 Hz 1.25 Kw (A25) Europe 240V ∼ 50 Hz 1.25 Kw (A26) UK 110V ∼...

  • Page 11: Machine Warnings

    VEGA User Manual_ March 2013 Edition Machine warnings Prohibited use WARNING This equipment is not to be used by anyone (children included) with physical or mental disabilities, or anyone without the relevant experience and knowledge, unless they have received instructions on using the equipment and are supervised by a responsible person to ensure their safety.
  • Page 12 VEGA User Manual_ March 2013 Edition Starting the machine 5. Locate the power supply. The socket must be compatible with the plug. To avoid electrical hazards the socket must be earth protected with a 20 A fuse. Connect the plug to the socket.

  • Page 13: Machine Adjustment Procedures

    VEGA User Manual_ March 2013 Edition Machine adjustment procedures Abrasive assembly procedures 1. Ensure the electric cable is connected from the power. 2. Turn the machine over, resting the handles on the floor. 3. Remove the screws Y (fig. 1) and the tapered washer keeping disk P locked with pin A in the hole on the machine body.

  • Page 14: Adjusting The Working Surface On The Floor

    VEGA User Manual_ March 2013 Edition Machine adjustment procedures Adjusting the working surface on the floor The abrasive disc holder P fig. 1) has a truncated cone shape with a large opening. For the disc to work on the flat its axis must be tilted with respect to the floor.

  • Page 15: Routine Maintenance To Be Performed

    VEGA User Manual_ March 2013 Edition Routine maintenance to be performed To keep the machine in good working condition the following items must be checked and serviced regularly: Sawdust chamber (for the user) Hoover the sawdust from the chamber regularly to prevent the hazardous accumulation of dust.

  • Page 16: Dust Bag (For The User)

    VEGA User Manual_ March 2013 Edition Routine maintenance to be performed Dust bag (for the user) Remove the bag and shake it well to remove sawdust. Turn the bag inside out and wash it in the machine in cold water to prevent blockage of the pores and a decrease in dust collection ability.

  • Page 17: Graphite Brushes (For The User)

    VEGA User Manual_ March 2013 Edition Routine maintenance to be performed Graphite brushes (for the user) The motor has two graphite brushes that must be checked every six months or after 500 hours of operation. The check the brushes carry out the following procedure: 1.

  • Page 18: Emergency Situations (For The User)

    VEGA User Manual_ March 2013 Edition Emergency situations (for the user) FAULTS CAUSES SOLUTIONS Insufficient cutting Unsuitable or worn abrasive Replace the abrasive Insufficient motor speed Insufficient tension due to: Excessive cable length or unsuitable Use cables of suitable length and...

  • Page 19: Declaration Of Conformity

    VEGA User Manual_ March 2013 Edition DECLARATION OF CONFORMITY DECLARATION OF CONFORMITY 2006/95 EC, 2006/42 EC 2004/108 EC, 2002/95 EC 2002/96 EC KUNZLE & TASIN S.r.l. Manufacturer and entity authorised to compile and maintain the technical file Registered headquarters Business Management and Production Site Via Circonvallazione Est.

  • Page 20: Disposal

    VEGA User Manual_ March 2013 Edition Disposal Smaltimento di apparecchiature da rottamare da parte di privati nell’Unione Europea. Questo simbolo che appare sul prodotto o sulla confezione indica che il prodotto non deve essere smaltito assieme ad altri rifiuti domestici. Gli utenti devono provvedere allo smaltimento delle apparecchiature da rottamare portandole al luogo di raccolta indicato per il riciclaggio delle apparecchiature elettriche ed elettroniche.

  • Page 21: Diagrams

    VEGA User Manual_ March 2013 Edition Diagrams...
