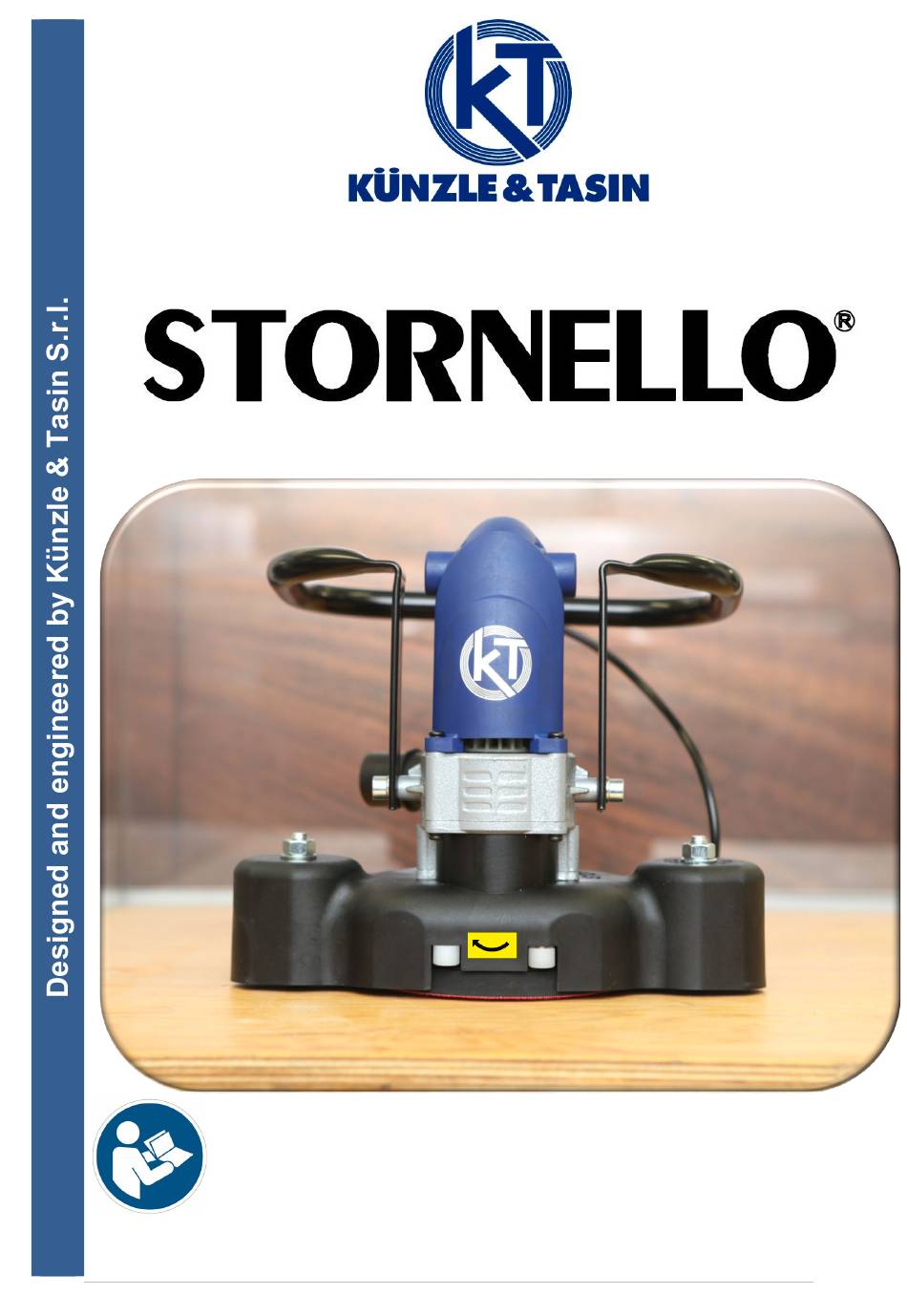

- Page 1 PRECISION VERTICAL SANDER Operating Manual and Safety Instructions STEN118...
- Page 3 Operating Manual STORNELLO ® Foreword This manual contains important information on the safe use and operation of this machine. Failure to read this manual before operating, adjusting or servicing this machine could cause injury or damage to person or objects. Anybody operating the machine should understand how to use and operate it before starting up it.
-
Page 4: Table Of Contents
Operating Manual STORNELLO ® Table of contents Pictograms legend Operator safety Storage Introduction Safe and correct use Machine data plate Commencing operation Instructions for electrical connection Cable,extension and plugs Removing sawdust generated during use Prevention measures for users Personal safety measures Compliance with safety measures and warnings General Power Tool Safety Warnings Safety instruction for all operations... -
Page 5: Pictograms Legend
Operating Manual STORNELLO ® Pictograms legend PLEASE READ THE INSTRUCTION IN THE MANUAL AND MAINTENANCE BEFORE USING THE MACHINE DURING USE IT’S RECOMMENDED TO PROTECT YOUR HEARING DURING USE IT’S RECOMMENDED TO PROTECT YOUR EYES DURING USE IT’S RECOMMENDED TO PROTECT RESPIRATORY DANGER ELECTRICITY DANGER MOVING PARTS Operator safety... -
Page 6: Storage
Operating manual STORNELLO ® Storage It is advisable to store the machine without removing it from home. The trolley, provided with the machine, protects it from moisture. Furthermore, you can form a three-trolley column to maximum one above the other. If the machine is removed from the original and is not used for a long time, it should ensure that the pad does not remain in contact with the ground. -
Page 7: Commencing Operation
Operating manual STORNELLO ® Commencing operation HAZARD Using the machine when not fully assembled may cause injury or damage to people or objects. Do not use the machine when it is not fully assembled. Keep all fittings tightly closed. Maintain machine settings in accordance with the specifications. Instruction for electrical connection CAUTION This machine only operates with the voltage and frequency shown on the machine data... -
Page 8: Removing Sawdust Generated During Use
Operating manual STORNELLO ® Commencing operation Removing sawdust generated during use HAZARD Sawdust can ignite spontaneously and cause injury or damage. The sanding dust must be appropriately disposed of. Always empty sawdust into metal containers which are placed outside of the buildings. HAZARD Empty the contents of the bag for the powder when it is 1/3 full. - Page 9 Operation manual STORNELLO ® Prevention measures for users Compliance with safety measures and warnings HAZARD Striking nails when sanding may generate an explosion or fire. Always ensure all nails are sunk before sanding surfaces. HAZARD Serious damage may occur if the power supply circuit trips repeatedly or is undersized. Have the fuses, safety circuit and power supply line checked by an authorized electrician.
- Page 10 Operation manual STORNELLO ® Prevention measures for users Compliance with safety measures and warnings HAZARD Striking nails when sanding may generate an explosion or fire. Always ensure all nails are sunk before sanding surfaces. HAZARD Serious damage may occur if the power supply circuit trips repeatedly or is undersized. Have the fuses, safety circuit and power supply line checked by an authorized electrician.
-
Page 11: General Power Tool Safety Warnings
Operation manual STORNELLO ® Prevention measures for users General Power Tool Safety Warnings WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool"... -
Page 12: Safety Instruction For All Operations
Operation manual STORNELLO ® Prevention measures for users General Power Tool Safety Warnings Power tool use and care WARNING - Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. WARNING - Do not use the power tool if the switch does not turn it on and off. - Page 13 Operation manual STORNELLO ® Prevention measures for users Safety instruction for all operations Safety Warnings Common for Sanding or Polishing Operations WARNING - Do not use a damaged accessory. Before each use inspect the accessory such as abrasive wheels for chips and cracks, backing pad for cracks, tear or excess wear, wire brush for loose or cracked wires.
-
Page 14: Additional Safety Instructions For Sanding Operations
Operation manual STORNELLO ® Prevention measures for users Safety instruction for all operations Further safety instructions for all operations DANGER - Never place your hand near the rotating accessory. Accessory may kickback over your hand. WARNING - Do not position your body in the area where power tool will move if kickback occurs. Kickback will propel the tool in direction opposite to the wheel’s movement at the point of snagging. -
Page 15: Instruction On Correct Machine Use
Operation manual STORNELLO ® Prevention measures for users Instructions on correct machine use Read this manual carefully and become familiar with the machine. The equipment is suitable for commercial use, for example in hotels, schools, hospitals, offices, factories and shops. The following information highlights particularly hazardous situations for the operator and/or to the machine. -
Page 16: Machine Warnings
Operation manual STORNELLO ® Machine warnings Prohibited use WARNING Children should be supervised to ensure that they do not play with the appliance. This machine is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge unless they have received instructions regarding the use and are supervised by a person responsible for the their safety. -
Page 17: Machine Adjustment Procedures
Operation manual STORNELLO ® Starting machine 8. To lock the machine in the working position without holding down the starting button, press the lock button sideways on the main handle. 9. Choose the inclination and the pressure to apply on the working surface by adjusting the handwheel. To increase the pressure and therefore more tilt the plate to rotate toward the "+"... -
Page 18: Tool Speed Adjustment
Operation manual STORNELLO ® Machine adjustment procedures Tool speed adjustment The machine is equipped with a speed controller, which controls the speed of rotation of the abrasive tool or disc used. The sanding speed may be adjusted according to the different conditions of the working surface, the material of the working surface and the sanding quality requirements (finishing). -
Page 19: Routine Maintenance
Operation manual STORNELLO ® Routine maintenance Graphite brushes (for the user) 1. Unscrew with a screwdriver the two blacks caps 2. Remove the old worn brushes, insert the new on the sideways machine head. brushes and replace the two blacks caps. CODE SPARE PART COUPLE OF GRAPHITE BRUSHES: 7600030022 Cleaning spherical wheel (for the user) Keep constantly clean the three spherical wheels in the... -
Page 20: Replacing Rear Spherical Wheel (For The User)
Operation manual STORNELLO ® Routine maintenance Replacing front spherical wheels (for the user) Note: The position of the hole in the cup is turned towards the suction chamber to allow the suction of removing dust inside the wheel. To facilitate the correct setting of the wheel there are the positioning turrets in the wheel housing. CODE SPARE PART WHEEL: OC999503500BHN1 Replacing rear spherical wheel (for the user) The complete replacement of the adjustable rear wheel, being locked to the screw, is performed in the following way:... -
Page 21: Emergency Situations (For The User)
Operation manual STORNELLO ® Emergency situations (for the user) PROBLEM CAUSES SOLUTIONS Check power supply or try on a No power supply voltage different job-site Insufficient voltage for unstable Check power supply or try on a The motor does not start connections different job-site Faulty switch... -
Page 22: Declaration Of Property
Operation manual STORNELLO ® Declaration of property STORNELLO ® precision vertical sander has been engineered and designed by KUNZLE & TASIN S.r.l. and it is covered by several patents. Patent N°: EP2732919 ITPC20120027 These deposited patents cover the system machine and some its elements. STORNELLO ®... -
Page 23: Disposal
Operating manual STORNELLO ® Disposal Disposal of Waste Equipment by Users in Private Households in the European Union. This symbol on the product on or its packaging indicates that this product must on be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. - Page 24 www.kunzletasin.com...
