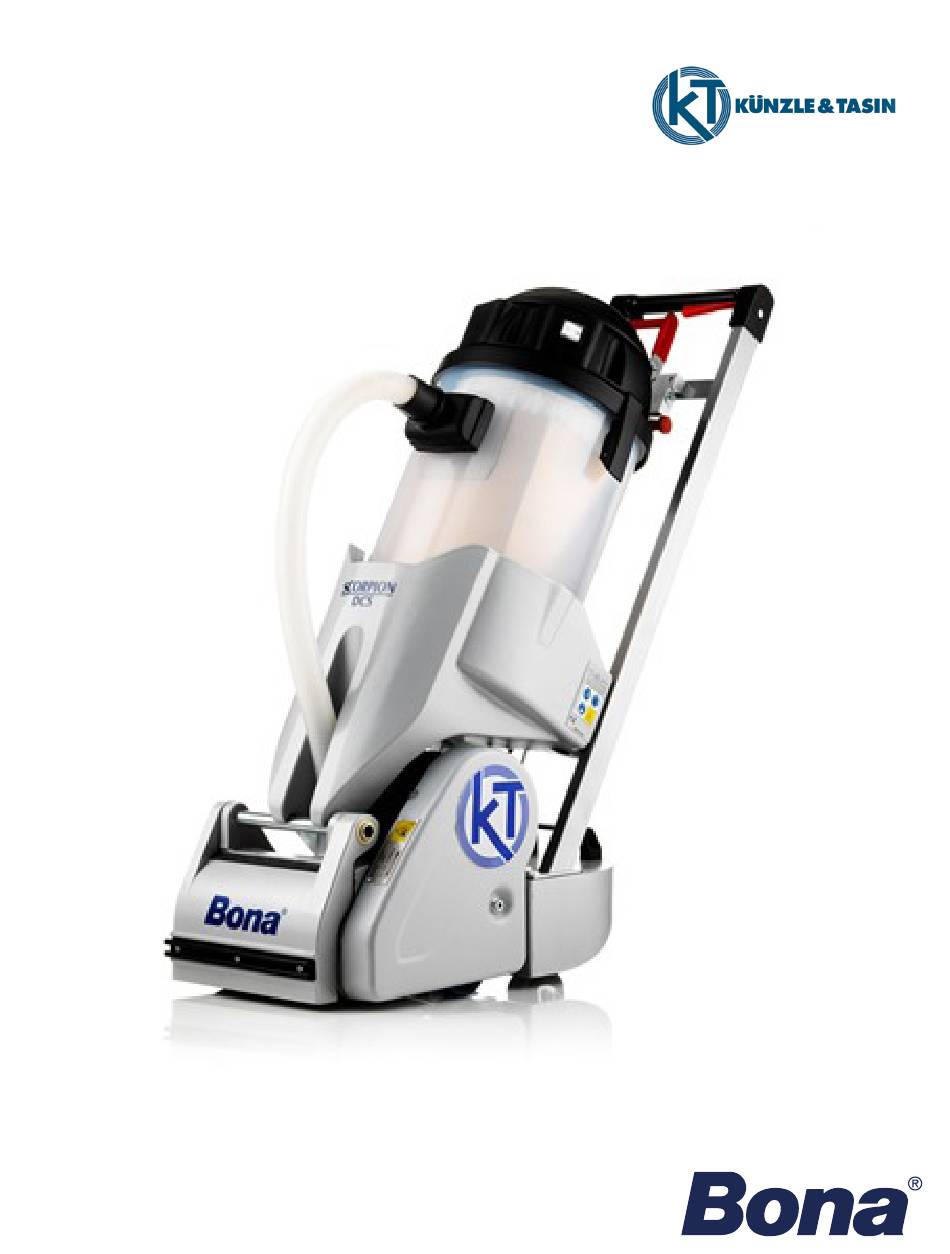

  • Page 1 Bona Scorpion DCS Operating Manual...

  • Page 2: Foreword

    Foreword Bona Scorpion DCS Manual ATTENTION: This manual contains important information on the safe use and operation of this machine. Failure to read this manual before operating, adjusting or servicing this machine could cause injury or damage to persons or objects.

  • Page 3: Table Of Contents

    Table of Contents Foreword Table of Contents Machine Symbols Key Operator Safety Storage Transporting and Handling With one person With two people Introduction Safe and correct use Machine data plate Commencing Operation Instructions for assembly following transportation Instructions for electrical connection Cables, extensions and plugs Removing sawdust generated during use Prevention Measures for Users...

  • Page 4: Machine Symbols Key

    Read and follow all 'Caution' alerts on this machine or in this manual. Failure to read the Bona Scorpion DCS machine manual before operating, adjusting or performing maintenance operations on the machine could cause injury or damage to persons or objects.
  • Page 5 Operator Safety (Cont.) Sanding/finishing wood floors can create an environment that can be explosive. The following safety procedures must be adhered to: • Cigarette lighters, pilot lights, and any other sources of ignition can create an explosion when active during a sanding session. All sources of ignition should be extinguished or removed entirely, if possible, from the work area.

  • Page 6: Storage

    Operator Safety (Cont.) Bona Scorpion DCS Manual Injury to the operator or bystanders could occur if the machine is plugged in while performing maintenance, servicing, changing filter, or inspecting. Always unplug machine when not in use. DO NOT use solvents or other flammable products to clean this machine.

  • Page 7: Transporting And Handling

    Transporting and Handling With one person Request assistance to lift the machine due to its heavy weight. The machine can be dismantled into several parts to facilitate transportation: Handle Extraction unit Basket holder Base frame with (with handle if required) drum and motor Transporting the machine by yourself? Proceed as follows: Disconnect the extractor power supply cable from the electricity...
  • Page 8 Transporting and Handling (Cont.) Bona Scorpion DCS Manual With one person (cont.) Remove the flexible hose from the outlet on the extractor trunk (A) then lift the extractor from its housing (B). Loosen the screw knob (A). Detach the basket holder from the handle.

  • Page 9: With Two People

    Transporting and Handling (Cont.) With one person (cont.) Loosen the wing knob (A). Remove the handle from its housing by moving it backwards slightly (A) and then lifting it vertically (B). Lift the base frame by clasping the drum guard pin at the front (A) and the transporting handle at the back (B). With two people Transporting the machine with two people? Repeat the preceding steps until step 8, then proceed as follows: One operator should clasp the drum guard pin (A)...

  • Page 10: Introduction

    Introduction Safe and correct use This instruction manual should be read carefully before using the Bona Scorpion DCS wood flooring sander for the first time. The instruction manual contains important information on safety and preventing improper use of the machine and will resolve any doubts or questions, making it possible to operate the machine safely and with ease.

  • Page 11: Machine Data Plate

    Introduction (Cont.) Safe and correct use (cont.) The Bona Scorpion DCS wood flooring sander is suitable for the dry sanding of wood floors. Any other use without the consent of the manufacturer is prohibited. DO NOT use on wet floors.

  • Page 12: Commencing Operation

    Commencing Operation Bona Scorpion DCS Manual Instructions for assembly following transportation To re-assemble the machine after transportation, proceed as follows: Insert the handle into the side guides in sequence (A), (B). Tighten the wing knob (A). Insert the rod (A) into the coupling (B) and lower the tube (C), tightening everything securely.
  • Page 13 Commencing Operation (Cont.) Instructions for assembly following transportation (cont.) Insert the extractor into the basket holder (A), (B). Connect the motor plug to the socket on the head of the extractor. Connect the handle/motor interconnection cable to the socket on the side of the motor box.

  • Page 14: Instructions For Electrical Connection

    Commencing Operation (Cont.) Bona Scorpion DCS Manual Instructions for electrical connection This machine only operates with the voltage and frequency shown on the machine data plate. Before connecting the cable to the power supply ensure the correct voltage and frequency are available.

  • Page 15: Removing Sawdust Generated During Use

    Commencing Operation (Cont.) Removing sawdust generated during use Sawdust can ignite spontaneously and cause injury or damage. Replace the dust bag when it is 1/3 full into metal containers which are located outside the building. DO NOT re-use the dust bag: use a new replacement each time.

  • Page 16: Compliance With Safety Measures And Warnings

    Prevention Measures for Users (Cont.) Bona Scorpion DCS Manual Compliance with safety measures and warnings Using the machine when not fully assembled may cause injury or damage to people or objects. DO NOT use the machine when it is not fully assembled. Keep all fittings tightly closed. Maintain machine settings in accordance with the specifications.

  • Page 17: Instructions On Correct Machine Use

    Prevention Measures for Users (Cont.) Compliance with safety measures and warnings (cont.) Failure to comply with instructions on this machine and in this manual may cause serious injury and/ or damage. Read and comply with all safety instructions. Ensure that all plates, labels, warnings and instructions are secured to the machine.

  • Page 18: Machine Specifications

    Machine Specifications Bona Scorpion DCS Manual Abrasive Dimensions: Expansion (belt): 200mm x 480mm (Per Drum) Drum Width: Expansion: 200mm Drum Diameter: Expansion: 150.5mm Drum Speed: Expansion: 3000rpm Motor: (A52) EU − 230V~50Hz − 1.3 kW Suction Unit: 230V~50Hz − 1.2 kW...

  • Page 19: Machine Warnings

    Machine Warnings Prohibited use Children should be supervised to ensure that they do not play with the appliance. This machine is not intended for use by persons (including children) with reduced physical, sensory or mental capabil- ities, or lack of experience and knowledge unless they have received instructions regarding the use and are supervised by a person responsible for their safety.
  • Page 20 Starting the Machine (Cont.) Bona Scorpion DCS Manual Sander operation (cont.) Arrange the paper bag in the container as shown below. Replace the head, securing it to the trunk with the clamping hooks. Locate the power supply. The socket must be compatible with the Keep the cable away from the pathway of the machine.
  • Page 21 Starting the Machine (Cont.) Sander operation (cont.) Check the motor cable is connected to the socket on the Connect the plug to the socket. extractor head and handle/motor interconnection cable is plugged into the socket on the side of the motor box. Switch on the extractor by pressing the switch on the head (A).

  • Page 22: Vacuum Cleaner Operation

    Starting the Machine (Cont.) Bona Scorpion DCS Manual Sander operation (cont.) To stop the machine, engage the drum lifting lever and release the start button Suddenly releasing the lever may cause excessively deep furrows on the work surface which may be difficult to remove with additional sanding.

  • Page 23: Machine Adjustment Procedures

    Starting the Machine (Cont.) Vacuum cleaner operation (cont.) Switch on the vacuum cleaner by pressing the switch on Start up the connected tool and commence use. the head. Machine Adjustment Procedures Adjusting sanding pressure To vary drum pressure on the floor using the pressure adjustment handle proceed as follows: To change from lower to higher pressure proceed by lifting the Move the handle to position (A) for less drum pressure on the floor, handle (A) and turning it so that the pins are placed in the other...

  • Page 24: Wheel Adjustment

    Machine Adjustment Procedures (Cont.) Bona Scorpion DCS Manual Wheel adjustment To adjust wheel position, proceed as follows: Open the belt safety guard by loosening the screws. Loosen the locking nut. Turning the adjustment screw clockwise lowers the drum end on the motor fan side towards the floor.

  • Page 25: Abrasive Assembly Procedure

    Machine Adjustment Procedures (Cont.) Abrasive Assembly Procedure Fit the abrasive disc to the drum ensuring that the abrasive protrudes approximately 1.5mm from the drum itself. Do not start the machine without the abrasive inserted, otherwise the drum will be damaged and must be replaced.

  • Page 26: Drums (For The User)

    Routine Maintenance (Cont.) Bona Scorpion DCS Manual Drums (for the user) Check the outer surface of the drum regularly. Remove any dirt. Wheels (for the user) Remove dirt from the machine unit and wheels regularly. Dirt may cause uneven sanding.

  • Page 27: Dust Bag (For The User)

    Routine Maintenance (Cont.) Dust bag (for the user) Replace the bag when it is 1/3 full or when the machine is not to be used again. Do not re-use dust bags, use a new replacement each time. Belt tension (for the user) Check the belt tension every 500 hours of operation.

  • Page 28: Bearings (Only For Tech Support Service)

    Routine Maintenance (Cont.) Bona Scorpion DCS Manual Bearings (only for tech support service) Check bearings regularly for wear or damage according to the following timescales: Wheels: After the first 2500 hours Fan Shaft: After the first 2500 hours Sanding Drum:...
  • Page 29 Emergency Situations (for the user) Faults Causes Solutions FAULTS CAUSES SOLUTIONS The drum doesn’t come off Wheels joint, between the two parts of the Adjust it enough from the floor drum lifting rod, not properly adjusted Unsuitable or worn-out abrasive Replace the abrasive The abrasive doesn’t sand Insufficient drum pressure...

  • Page 30: Declaration Of Conformity

    Declaration of Conformity Bona Scorpion DCS Manual 2006/95 EC, 2006/42 EC, 2004/108 EC, 2011/65 EU, 2012/19 EU KUNZLE & TASIN S.r.l. Registered Headquarters Business Management and Production Site Via Circonvallazione Est. 2/6 Via Cajkovskij, 14 27023 Cassolnovo (PV) - Italy 20092 –...

  • Page 31: Disposal

    Disposal Smaltimento di apparecchiature da rottamare da parte di privati nell’Unione Europea. Questo simbolo che appare sul prodotto o sulla confezione indica che il prodotto non deve essere smaltito assieme ad altri rifiuti domestici. Gli utenti devono provvedere allo smaltimento delle apparecchiature da rottamare, portandole al luogo di raccolta indicato per il riciclaggio delle apparecchiature elettriche ed elettroniche.
  • Page 32 01/2016 Edition bona.com...
