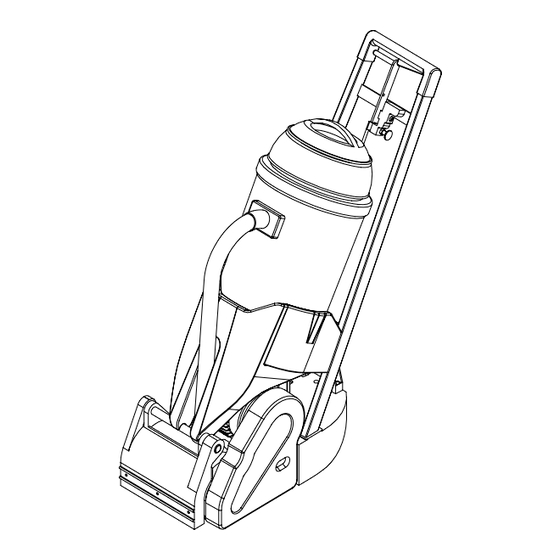

USE AND MAINTENANCE HANDBOOK FOR MACHINE ARLEQUIN
This handbook contains important information regarding the safe use and operation of this machine.
Without reading this handbook before first time use, adjustment or maintenance may produce
damages to the machine and/or personal injury. The user should be on familiar terms with the
machine and its operation before using it. Keep this handbook for future reference. Should you need
other handbooks, please write to:
Künzle & Tasin S.P.A.
Direzione Commerciale e Stabilimento: Via Cajkovskij, 14 20092 Cinisello Balsamo - Milano - Italia
Advertisement
Table of Contents
Related Manuals for Kunzle & Tasin Arlequin
Summary of Contents for Kunzle & Tasin Arlequin
- Page 1 USE AND MAINTENANCE HANDBOOK FOR MACHINE ARLEQUIN This handbook contains important information regarding the safe use and operation of this machine. Without reading this handbook before first time use, adjustment or maintenance may produce damages to the machine and/or personal injury. The user should be on familiar terms with the machine and its operation before using it.
-
Page 2: Table Of Contents
WHEELS ADJUSTMENT (on a plane parallel to the drum's axle) ............12 PROCEDURES FOR THE SETTING OF THE ABRASIVES .................12 ARLEQUIN EXPANSION (drum for expansion type)................12 ARLEQUIN RENT (drum for rent type ) ....................12 ARLEQUIN CLASSIC (drum for classic type) ..................13 PERIODIC MAINTENANCE..........................13 VACUUM UNIT (FOR THE USER) ......................13... -
Page 3: Listed Symbols
DRUM SANDER FOR WOODEN FLOORS ED 04 ARLEQUIN PG. 3/19 LISTED SYMBOLS READ THE INSTRUCTIONS IN THIS HANDBOOK BEFORE USING THE MACHINE NOISE HAZARD – USE EAR PROTECTORS BREATHING HAZARD - USE PROTECTIVE MASK ELECTRICAL SHOCK HAZARD DANGER MOVING PARTS... -
Page 4: Storage
DRUM SANDER FOR WOODEN FLOORS ED 04 ARLEQUIN PG. 4/19 STORAGE We recommend storing the machine without removing it from its original packaging to allow up to a maximum of two packages to be stacked one on the top of the other. -
Page 5: Starting
DRUM SANDER FOR WOODEN FLOORS ED 04 ARLEQUIN PG. 5/19 STARTING ASSEMBLING INSTRUCTIONS (AFTER THE TRANSPORT) To reassemble the machine after the transport, proceed as follows: Insert the grip in the two lateral slides and close the lobes handgrip. Insert the rod in the joint, lower the bush and close everything. -
Page 6: Instructions For Removing The Sawdust Produced During Work
DRUM SANDER FOR WOODEN FLOORS ED 04 ARLEQUIN PG. 6/19 ∼ SINGLE PHASE MOTOR MACHINE 230 - 240V 50Hz For Europe, the power supply cable must be of the HAR approved type, namely HO5VV-3x2.5 mm 2 , and the plug must be of the 2P+T16A-250V approved type. -
Page 7: User Safety Recommendations
DRUM SANDER FOR WOODEN FLOORS ED 04 ARLEQUIN PG. 7/19 USER SAFETY RECOMMENDATIONS PERSONAL SAFETY WARNING: Although the machine has been designed in such a way as to avoid the diffusion of the sanding dust in the air, it can’t be excluded that this event takes place; so it could happen that the user breaths the dust while using the machine. -
Page 8: Instructions For The Correct Use
DRUM SANDER FOR WOODEN FLOORS ED 04 ARLEQUIN PG. 8/19 DANGER: Injury or electrocution may occur if the machine passes over the power supply cable or damages it. Keep the cable away from the lower part of the machine in order to avoid contact with the abrasive. -
Page 9: Machine Specifications
ARLEQUIN EXPANSION 200 x 480 mm RING SHAPED ARLEQUIN CLASSIC 200 x 550 mm ARLEQUIN RENT 200 x 470 mm DRUM WIDTH: ARLEQUIN EXPANSION / CLASSIC 200 mm ARLEQUIN RENT 203 mm DRUM DIAMETER: ARLEQUIN EXPANSION / CLASSIC 151 mm... -
Page 10: User Instructions
DRUM SANDER FOR WOODEN FLOORS ED 04 ARLEQUIN PG. 10/19 USER INSTRUCTIONS INCORRECT USES CAUTION: Using the machine to push other objects or an incline may result in damage and/or personal injury. The machine must be used exclusively to sand dry wooden floors that are flat or with a maximum incline of 2%. - Page 11 DRUM SANDER FOR WOODEN FLOORS ED 04 ARLEQUIN PG. 11/19 Working as vacuum cleaner From point 1 to point 4 follow the previous procedure. 5. Disconnect the flexible pipe of the machine from the pipe union of the tank. 6. Assemble the vacuum kit by inserting the flexible pipe in the pipe union of the tank and the brush in the rigid terminal of the same kit.
-
Page 12: Adjustment Of The Machine
WARNING! Never start the machine without the sanding paper; it may cause the destruction of the drum. ARLEQUIN RENT (drum for rent type) Loosen fixing screws pos. 1 fig. D of the paper pressing bar pos. 2 fig. D on the drum by means of the proper screwdriver. -
Page 13: Arlequin Classic (Drum For Classic Type)
ARLEQUIN PG. 13/19 ARLEQUIN CLASSIC (drum for classic type) Abrasive has to be prepared in the dimensions indicated in fig. E and it has to be cut absolutely with the inclination which is showed in the picture. By means of the proper keys, turn the two tensioning shafts pos. 1 e 2 fig. -
Page 14: Belt Tension (For The User)
DRUM SANDER FOR WOODEN FLOORS ED 04 ARLEQUIN PG. 14/19 BELT TENSION (for the user) – see pic. H Inspect the tension of the belt, every 500 hours of work, by removing the protection of the belt pos. 1, after taking off the screws pos. 2 (quantity 2) and loosening the screws for the motor fixing), pos 3 (quantity 4). -
Page 15: Troubleshooting (For The User )
DRUM SANDER FOR WOODEN FLOORS ED 02 ARLEQUIN PG. 15/20 TROUBLESHOOTING (FOR THE USER ) Insufficient cut worn or unsuitable abrasive replace abrasive insufficient drum pressure increase drum pressure, see pg. 13 insufficient belt tension increase belt tension, see pg. 15... -
Page 16: Pictures
DRUM SANDER FOR WOODEN FLOORS ED 02 ARLEQUIN PG. 16/20 Picture 1 Picture 2 ________________________________________________________________________________________________ USE AND MAINTENANCE HANDBOOK... - Page 17 DRUM SANDER FOR WOODEN FLOORS ED 02 ARLEQUIN PG. 17/19 ________________________________________________________________________________________________ USE AND MAINTENANCE HANDBOOK...
- Page 18 DRUM SANDER FOR WOODEN FLOORS DRUM SANDER FOR WOODEN FLOORS ED 02 ED 02 ARLEQUIN ARLEQUIN PG. 18/19 PG. 18/19 ________________________________________________________________________________________________ ________________________________________________________________________________________________ USE AND MAINTENANCE HANDBOOK USE AND MAINTENANCE HANDBOOK...
-
Page 19: Declaration Of Conformity
Accounting office: Via C. Freguglia 4 20122 Milano - Italy declare under our responsibility that the product ARLEQUIN CLASSIC / RENT / EXPANSION DRUM SANDER to which this declaration relates is in conformity with the following standards or other normative document(s): •...
