10

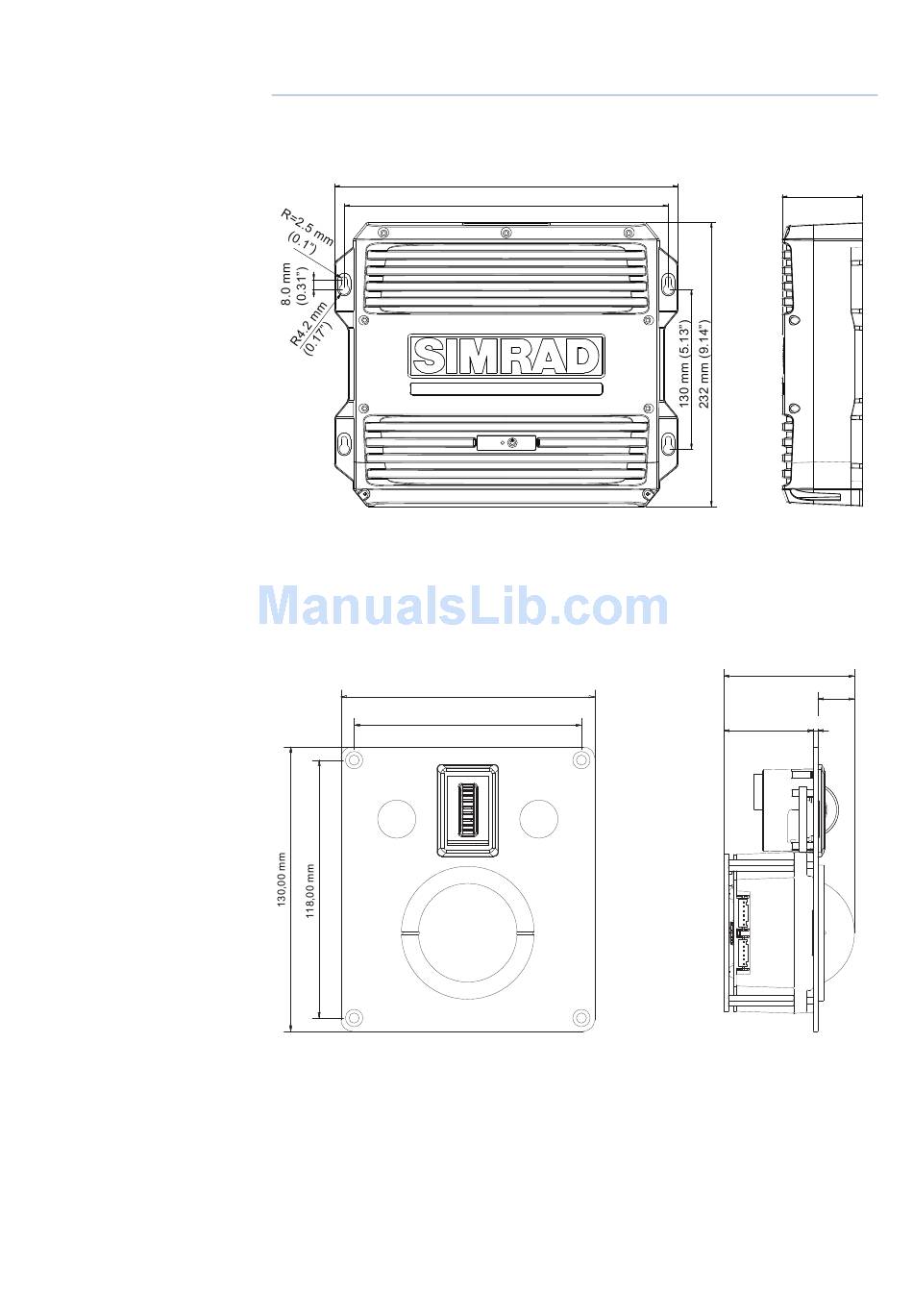

Dimensional drawings
E5000 Dimensional drawings
¼ Note:
LTSX50N8 trackball dimensional drawings
Dimensional drawings |
The dimensional drawings for the monitor and alarm panel are found in a separate
document.
116,00 mm
104,00 mm
E5024 ECDIS Installation Manual
281 mm (11.05")
265 mm (10.42")
66 mm (2.58")
59,70 mm
16,70 mm
41,00 mm
2,00 mm
| 39
