External alarm

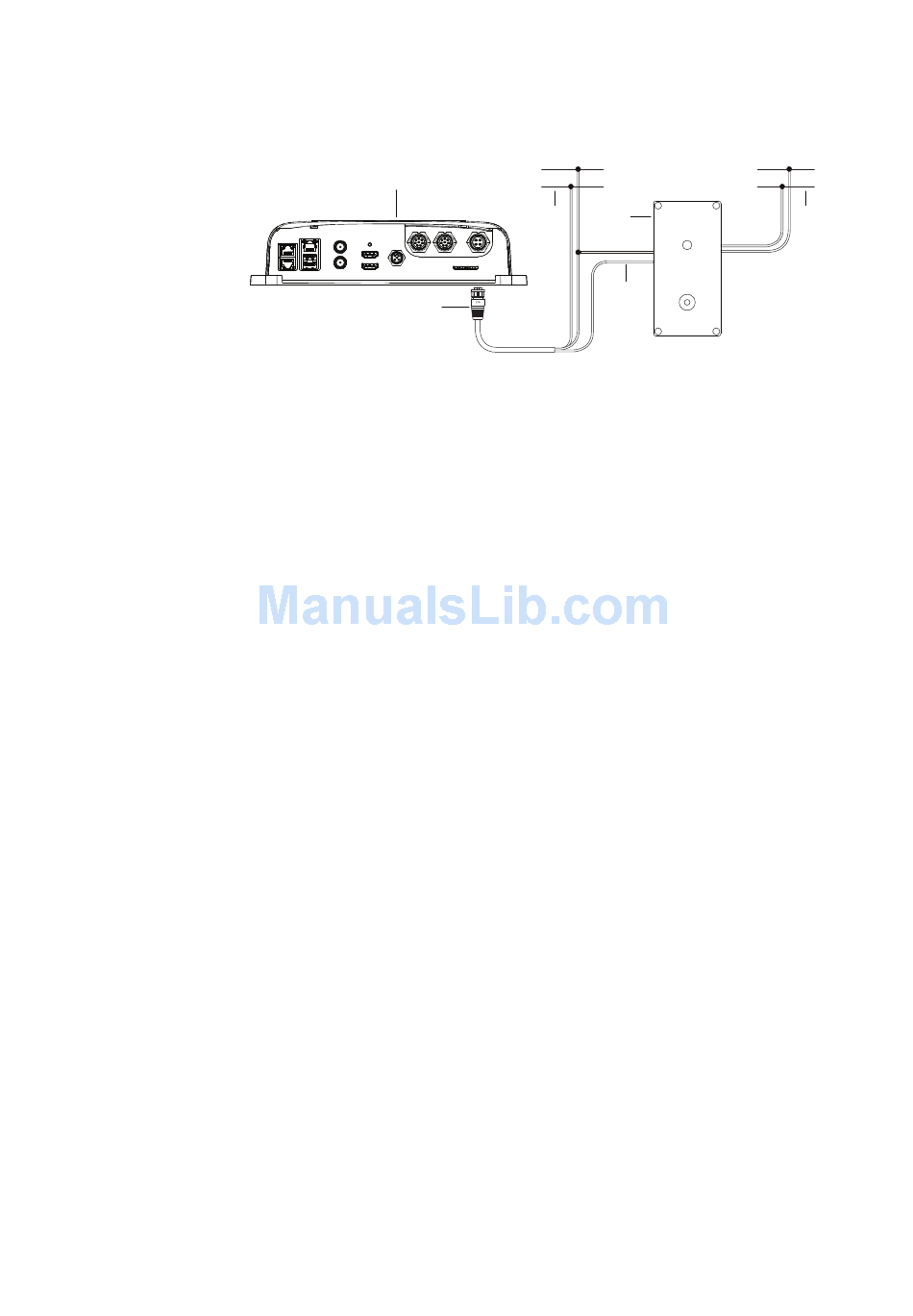

The ECDIS CPU in the E5000 output alarms in the following way:
•
The ECDIS CPU pulls the blue wire to GND (O V)
1
1
E5000 processor
2
Powerplug E5000
3
Main power E5000
4
E0102 Alarm panel
5
Blue alarm pin E5000
6
E0102 separate power
For wiring details for the E0102, refer to the included manual.
¼ Note:
The E5000 processor and E0102 alarm panel must have separate power supplies to be
compliant.
Wiring |
E5024 ECDIS Installation Manual
24 V
NEG
3
2
24 V
NEG
4
SIMRAD
5
ALARM RESET
6
