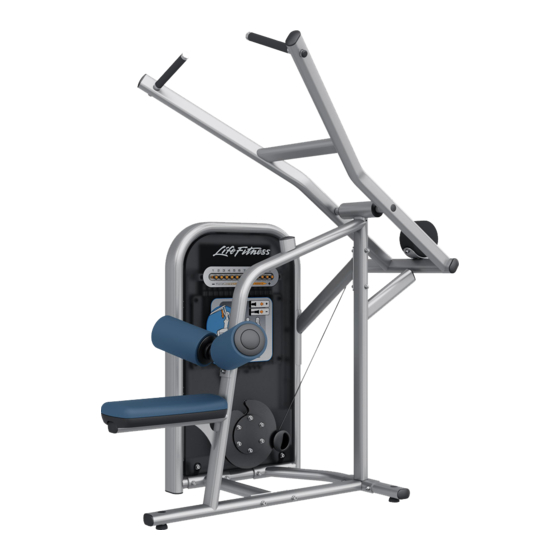

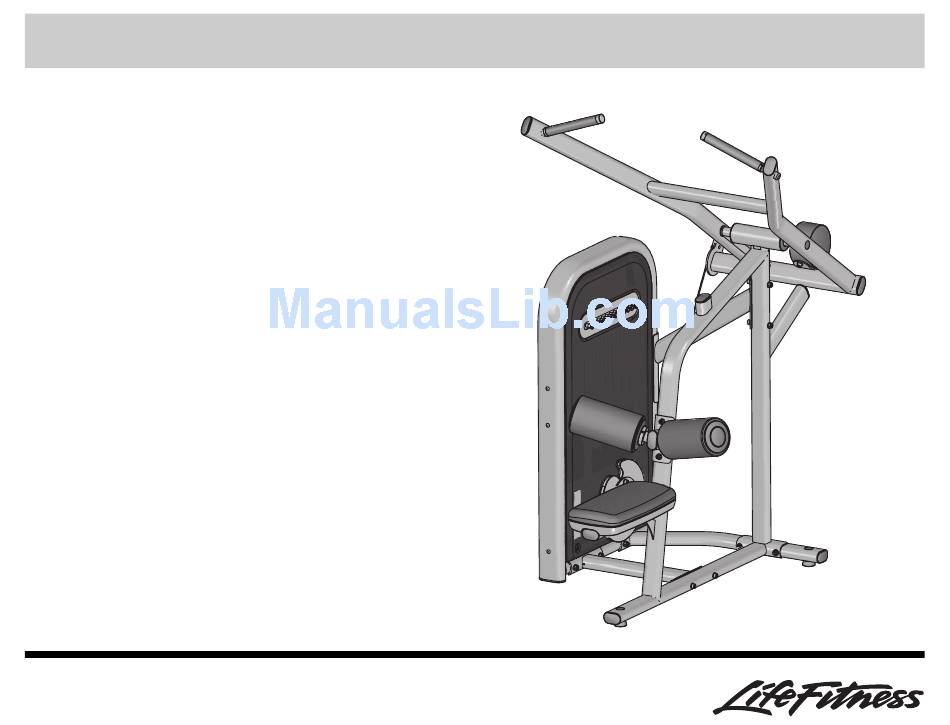

Page 1: Lat Pulldown
Lat Pulldown Assembly Instructions... -
Page 2: Assembly Instructions
Lat Pulldown Assembly Instructions Item Description Front Brace Rear Brace Tower M10 x 130mm Bolt 3/8” Flat Washer M10 Nylock Nut Seat Frame M10 x 90mm Bolt Top Brace M10 x 70mm Bolt Roller Pad Bracket M10 x 35mm Bolt... - Page 4 Lat Pulldown Assembly Instructions 1. LOOSELY assemble the FRONT BRACE (1) and REAR BRACE (2) to the TOWER (3) using four M10 X 130mm BOLTS (4), eight 3/8" SAE WASH- ERS (5) and four M10 NYLOCK NUTS (6) as shown.
- Page 5 8. Assemble the OUTPUT CAM (20), OUTPUT PLATE (21), and OUTPUT RING (22) using three M10 X 45mm BOLTS (23) and three 3/8" SAE WASHERS (5) as shown. Tighten the BOLTS securely. 9. Assemble the REAR SHROUD (24) and FRONT SHROUD (25) to the TOWER (3) using four M10 X 20mm BOLTS (26), four 3/8"...
- Page 6 Lat Pulldown Assembly Instructions 12. Slide one SHAFT COLLAR (30) over each shaft of the ROLLER PAD BRACKET (11). 13. Attach the ROLLER PADS (31) to the ROLLER PAD BRACKET (11) using two M10 X 35mm BOLTS (19) and two PLATES (27) as shown. Tighten the BOLT securely.
- Page 7 NOTE: Some components have been removed from the illustration for clarity. 17. Assemble one M10 HEX JAM NUT (35) onto one end of the CABLE (36) approximately 1/2”. Assemble the ROD END BEARING (37) to the same end of the CABLE until it meets the M10 HEX JAM NUT. Tighten the M10 HEX JAM NUT securely.
- Page 8 Lat Pulldown Assembly Instructions 2006 Life Fitness, a division of Brunswick Corporation. All rights reserved. © Life Fitness is a registered trademark of Brunswick Corporation. TCPD 7.28.06 8060701 RevA-3...
