Life Fitness X30-0000-01 Parts List

Life Fitness X30-0000-01 Parts List

Life fitness cross-trainer parts list
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

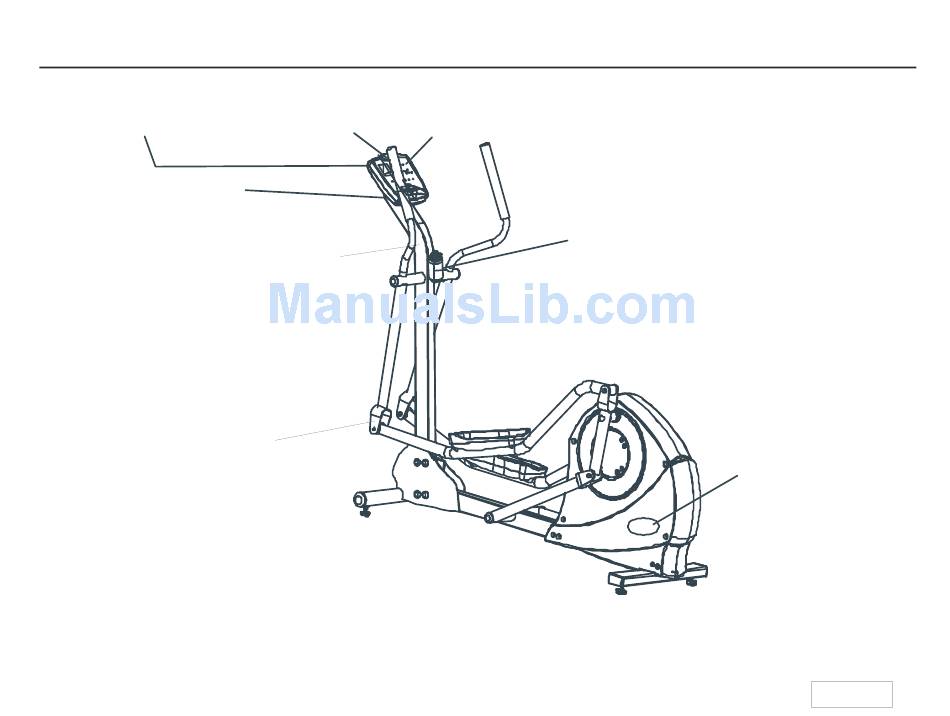

LF Cross-Trainer
General Assembly
CONSOLE ASSEMBLY
REX2AXQ
GERMAN CONSOLE ASSEMBLY
REX2CTB
ENDCAP
REX21MV
ENDCAP SCREWS
REX0KC6
FRONT
COMPONENTS
CLEVIS COVERS
FRONT
REX2AQU
REAR
REX2AQT
MOVEMENT ARMS
& HARDWARE
CONSOLE DECAL
REX2AV7
MODEL BADGE
REX2AVN
X30-0000-01
OVERLAY
REX2AXM
WATER BOTTLE
REX2B96
WATER BOTTLE HOLDER
REX21CV
SCREWS
REX0K4R
BLOCK
DIAGRAM
120V Dom. Eng/Eng
ACCESSORY TRAY: REX2AYF
HARDWARE BAG: REX2AZ8
TOUCH UP PAINT: 7967401
RECEIVER: REX21PV
TRANSMITTER: REX2B95
OPER. MANUAL: 7953401
REAR
COMPONENTS
LF LOGO LABEL
REX2ARH
CABLES
rev. 07 May 07

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the X30-0000-01 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Life Fitness X30-0000-01

Summary of Contents for Life Fitness X30-0000-01

  • Page 1: Rear Components

    REX0KC6 MODEL BADGE REX2AVN FRONT COMPONENTS CLEVIS COVERS FRONT REX2AQU REAR REX2AQT MOVEMENT ARMS & HARDWARE X30-0000-01 CONSOLE DECAL OVERLAY REX2AV7 REX2AXM BLOCK DIAGRAM 120V Dom. Eng/Eng ACCESSORY TRAY: REX2AYF HARDWARE BAG: REX2AZ8 TOUCH UP PAINT: 7967401 RECEIVER: REX21PV TRANSMITTER: REX2B95 OPER.

  • Page 2: Movement Arms And Hardware

    REX0HVQ C-RING REX0JEJ COUPLER ASSEMBLY REX2AWK FLAT WASHER REX20TJ SPRG WASHER(2) REX0J9C BOLT(2) REX21B8 ENDCAP REX219H X30-0000-01 LEFT TOP CLEVIS COVER REX2AQR LEFT TOP CLEVIS COVER REX2AQS LOCKING NUT(4) REX22RR BALL BEARING REX0HVP WAVE WASHER REX0JB7 WASHER REX22B0 C-RING REX0JFP...
  • Page 3 RIGHT PEDAL REX2BAD REX2AQ9 BALL BEARING REX2BKB C-RING REX0JE0 C-RING REX0JEE SPRG WASHER(8) REX0J92 SCREW(8) WASHER C-RING REX0KEH REX22B0 REX0JFP X30-0000-01 BALL BEARING REX2BKB SHAFT REX2BAD WASHER REX22B0 C-RING REX0JFP BUSHING REX218W WAVE WASHER REX0JB7 RT PEDAL ARM REX2AWJ SHAFT BUSHING...
  • Page 4 REX21A7 HOOK CLAMP BOLT REX21A6 MAGNETIC BRAKE ASSY REX21BJ C-RING REX0JEJ BOLT(2) REX21NS REX2BKC SCREW(12) COVER PLATE(2) REX0KDJ REX217M RT SHROUD REX2ARA X30-0000-01 BOLT(3) REX0K2W WASHER REX0J69 BOLT(4) REX21NT IDLER TENSIONER REX21AA BEARING(2) REX0HVY C-RING(1) REX0JEG LOCK NUT(4) REX0KR3 BOLT...
  • Page 5 Console, Upright & User Arm Components GRIP REX2AV4 BUSHING WASHER REX219V REX22B4 SPRG WASHER(2) REX0J9C ENDCAP BOLT(2) REX219H 21B8 BOLT REX21BA X30-0000-01 C-RING REX0JEJ WASHER WASHER REX22B36 REX22B3 SPRG WASHER(2) CONSOLE SCREWS(8) REX0JBD REX20YL INSERTS(2) REX21NN RIGHT ARM ASSY REX2AWM...
  • Page 6 LF Cross-Trainer Upright Hardware and Levelers RIGHT FRONT COVER (NOT SHOWN) REX2AQ1 LEFT FRONT COVER (NOT SHOWN) REX2AQ6 MAST COVER SCREWS (3 PER COVER) REX0K4S X30-0000-01 SCREW(12) REX0KDJ BOLT (4) REX21NR END CAP(2) REX218D Page 6 of 8 120V Dom. Eng/Eng...
  • Page 7 LF Cross-Trainer Cables ADAPTOR 120/60 DOM. - REX24ZJ 230/50 CONT. - REX22H1 230/50 U.K. - REX22EZ 240/50 AUS. - REX24ZK X30-0000-01 SPEED SENSOR POWER CABLE REX01J8 REX01HU BASE CABLE REX01QT Page 7 of 8 120V Dom. Eng/Eng UPRIGHT MAIN CABLE...

  • Page 8: Block Diagram

    LOWER FRAME CABLE REX01QT GRAY BLUE GREEN CONSOLE BLACK WHITE YELLOW MAIN UPPER CABLE REX01RT LOWER FRAME CABLE REX01QT X30-0000-01 (BLACK) MOTOR+ (RED) -5VDC ORANGE YELLOW BLACK POWER CABLE REX01HU BLACK WHITE BLACK BLACK / WHITE Page 8 of 8 120V Dom.
