ARCTIC SILVER CROSS-TRAINER X9i-0XXX-04
Customer Support Services
PARTS MANUAL
revised 18 Mar 2008

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the X9i and is the answer not in the manual?

Questions and answers

Tom Poole
May 31, 2025

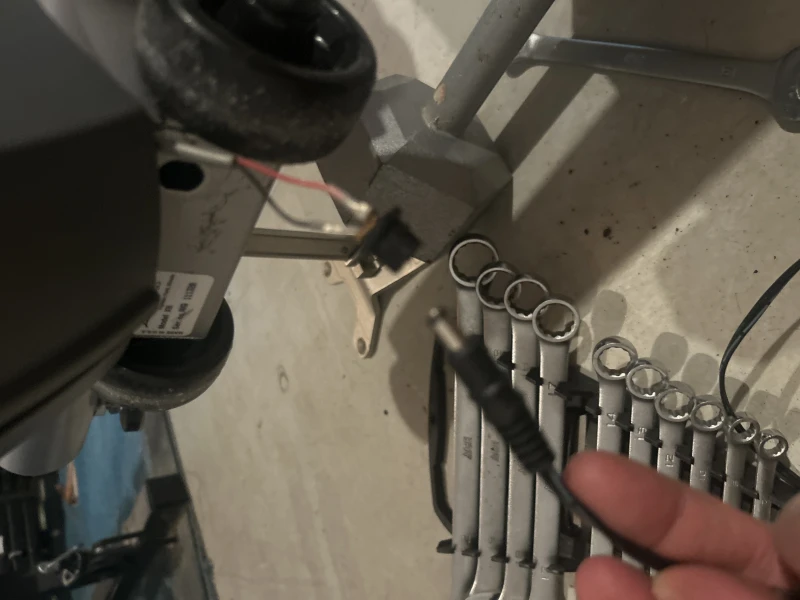

Does unit use power block or cord simply plugs into unit

User image 683b6bfa24285
1 comments:
Mr. Anderson
May 31, 2025

The Life Fitness X9i uses a power adapter that plugs into a barrel plug on the back of the cross-trainer and then into a wall outlet. This indicates it uses a power block, not just a simple cord.

This answer is automatically generated

Summary of Contents for Life Fitness X9i

  • Page 1 ARCTIC SILVER CROSS-TRAINER X9i-0XXX-04 Customer Support Services PARTS MANUAL revised 18 Mar 2008...
  • Page 2 X9I ARCTIC SILVER CROSS-TRAINER REFERENCES OPERATION MANUAL SERVICE MANUAL ARCTIC SILVER TOUCH UP PAINT: SPRAY CAN .5 OZ BOTTLE W/APPLICATOR .33 OZ PEN STEALTH GRAY TOUCH UP PAINT ( FOR ROCKER ARMS): SPRAY CAN .5 OZ BOTTLE W/APPLICATOR HARDWARE BAG...
  • Page 3: Table Of Contents

    X9I ARCTIC SILVER CROSS-TRAINER CONTENTS DRIVE BELTS AND ALTERNATOR...4 CONSOLE SUPPORT ASSEMBLY...5 CONSOLE ASSEMBLY ...6 ROLLER ASSEMBLY ...7 CRANKSHAFT ASSEMBLY ...8 DRIVE LINKAGE ASSEMBLY...9 ANTI-LIFT BRACKET AND OUTER PEDAL COVERS...10 FRAME ASSEMBLY ...11 CLEVIS AND FRONT FRAME COVERS ...12 PEDAL LEVER ASSEMBLY...13 ROCKER ARM COVERS ...14...
  • Page 4: Drive Belts And Alternator

    X9i ARCTIC SILVER CROSS-TRAINER DRIVE BELTS AND ALTERNATOR Alternator 0017-00009-0841 Alternator w/Flywheel Assembly AK61-00250-0001 Mando Alternator Brushes 0017-00009-0895 Alternator Flywheel 0K61-02500-0001 Lock Nut 0017-00103-0117 Alternator Belt 0K53-01184-0000 Intermediate Pulley Bolt 0017-00101-1651 Intermediate Bracket Alternator Pivot Bolt 0K61-02400-0001 0017-00101-0964 Intermediate Pulley Assy...
  • Page 5: Console Support Assembly

    X9i ARCTIC SILVER CROSS-TRAINER CONSOLE SUPPORT ASSEMBLY Accessory Tray Kit GK63-00002-0062 Main Cable AK61-00138-0000 Console Cap 0K61-01283-0001 Bolt-2 0017-00101-1645 Flat Washer-2 0017-00104-0192 S/N AXQ100000 and up Mounting Screws (8) (not shown for accessory tray and console) 0017-00101-1242 Bullhorn Grip 11.75” (2)
  • Page 6: Console Assembly

    X9i ARCTIC SILVER CROSS-TRAINER CONSOLE ASSEMBLY Bezel/Switch Assembly AK63-00075-0001 Upper Overlay Lower Overlay Console Assembly AK61-00193-0001 Eng/Eng AK61-00193-0002 Eng/Met AK61-00193-0003 Ger/Met AK61-00193-0004 Spn/Met AK61-00193-0007 Frn/Met AK61-00193-0008 Itl/Met AK61-00193-0009 Dut/Met AK61-00193-0010 Por/Met Switch Membrane 118E-00001-0133 Console Board - Upper A084-92219-A007 Console Case Assembly...
  • Page 7: Roller Assembly

    X9i ARCTIC SILVER CROSS-TRAINER ROLLER ASSEMBLY Snap Ring 0017-00100-0152 Locking Nut 0017-00103-0025 Bolt 0017-00101-1606 Flat Washer 0017-00104-0417 Roller Bearing Assembly GK61-00002-0026 Set Screws 0017-00101-0314 Set Screw Square Key 1/4-20x5 0K53-01122-0000 0017-00101-0333 X9-0XXX-04 S/N AXQ100000 and up Shaft Collar Allen-Head 0K61-01260-0001...
  • Page 8: X9I Arctic Silver Cross-Trainer X9-0Xxx

    X9i ARCTIC SILVER CROSS-TRAINER X9-0XXX-04 CRANKSHAFT ASSEMBLY – AK61-00157-0003 S/N AXQ100000 and up...
  • Page 9: Drive Linkage Assembly

    X9i ARCTIC SILVER CROSS-TRAINER X9-0XXX-04 DRIVE LINKAGE ASSEMBLY S/N AXQ100000 and up...
  • Page 10: Outer Pedal Cover

    X9i ARCTIC SILVER CROSS-TRAINER ANTI LIFT BRACKET & OUTER PEDAL COVERS Allen Head Bolt 0017-00101-1645 Phillips Pan Screw 0017-00101-1646 Left Link Cover w/decal AK61-00199-0002 S/N AXQ100000 and up Right Link Cover w/decal AK61-00199-0001 Roller Retainer Plate 0K61-04114-0000 X9-0XXX-04...
  • Page 11: Frame Assembly

    X9i ARCTIC SILVER CROSS-TRAINER FRAME ASSEMBLY Control PCB w/bracket AK61-00146-0000 S/N AXQ100000 and up X9-0XXX-04...
  • Page 12: Clevis And Front Frame Covers

    X9i ARCTIC SILVER CROSS-TRAINER CLEVIS & FRONT FRAME COVERS Grommets-14 0017-00042-0754 Clevis Cover Screw-2 0017-00101-1242 Phillips Screw-18 0017-00101-1242 Clevis Cover-2 AK61-00062-0001 Wheel Cap-2 0017-00042-1066 Front Cover-RT 0K61-06210-0004 X9-0XXX-04 S/N AXQ100000 and up Stabilizer Cap-4 0K61-01284-0001 Leg Leveler-4 AK61-00035-0000 Wheel Shaft...
  • Page 13: Pedal Lever Assembly

    X9i ARCTIC SILVER CROSS-TRAINER PEDAL LEVER ASSEMBLY Left Pedal Assembly AK61-00172-0002 Right Pedal Assembly AK61-00172-0001 Screw 0017-00101-1242 Inside Covers Left 0K61-06300-0004 Right 0K61-06320-0004 Pedal Kit GK61-00002-0054 Push-On Clips (4) 0017-00009-1143 O-Rings 0017-00041-0053 Beveled Washer 0K61-01356-0000 X9-0XXX-04 S/N AXQ100000 and up...
  • Page 14: Rocker Arm Covers

    X9i ARCTIC SILVER CROSS-TRAINER ROCKER ARM COVERS Rear Rocker Arm Cover 0K61-06341-0003 Front Rocker Arm Cover 0K61-06340-0003 Rear Deadshaft Cover 0K61-06351-0003 Rear Rocker Arm Cover 0K61-06340-0003 X9-0XXX-04 S/N AXQ100000 and up Polar Receiver AK40-00045-0001 Insulator Receiver Tube 0K36-01059-0002 Front Deadshaft Cover...
  • Page 15: Rocker Arm Assembly

    X9i ARCTIC SILVER CROSS-TRAINER ROCKER ARM ASSEMBLY Flat Washer 0017-00104-0454 Hex Bolt 0017-00101-1635 S/N AXQ100000 and up Shaft Split Collar 0K61-01259-0000 Rocker Arm AK61-00094-0003 X9-0XXX-04...
  • Page 16: Rear Drive Shrouds W/Decals

    X9i ARCTIC SILVER CROSS-TRAINER REAR DRIVE SHROUDS W/DECALS Left Rear Cover w/Decal AK61-00176-0002 Phillips Pan Screw-22 0017-00101-1242 Right Rear Cover w/Decal AK61-00176-0001 Plug-2 0k14-01384-0000 X9-0XXX-04 S/N AXQ100000 and up...
  • Page 17: Upper Arm/Heart Rate Assembly

    X9i ARCTIC SILVER CROSS-TRAINER UPPER ARM/HEART RATE ASSEMBLY Upper Arm - RT Assembly AK61-00178-0001 Electrode Kit GK20-00002-0005 S/N AXQ100000 and up Upper Arm - LT Assembly AK61-00178-0002 Flat Washer 0017-00104-0450 Bolt 0017-00101-1645 Life Pulse Cable AK61-00051-0000 Strain Relief Bushing 0017-00042-1078...
  • Page 18: Cables

    X9i ARCTIC SILVER CROSS-TRAINER X9-0XXX-04 CABLES S/N AXQ100000 and up...
