Summary of Contents for LMI Technologies HDI 120

  • Page 1: Quick Start Guide

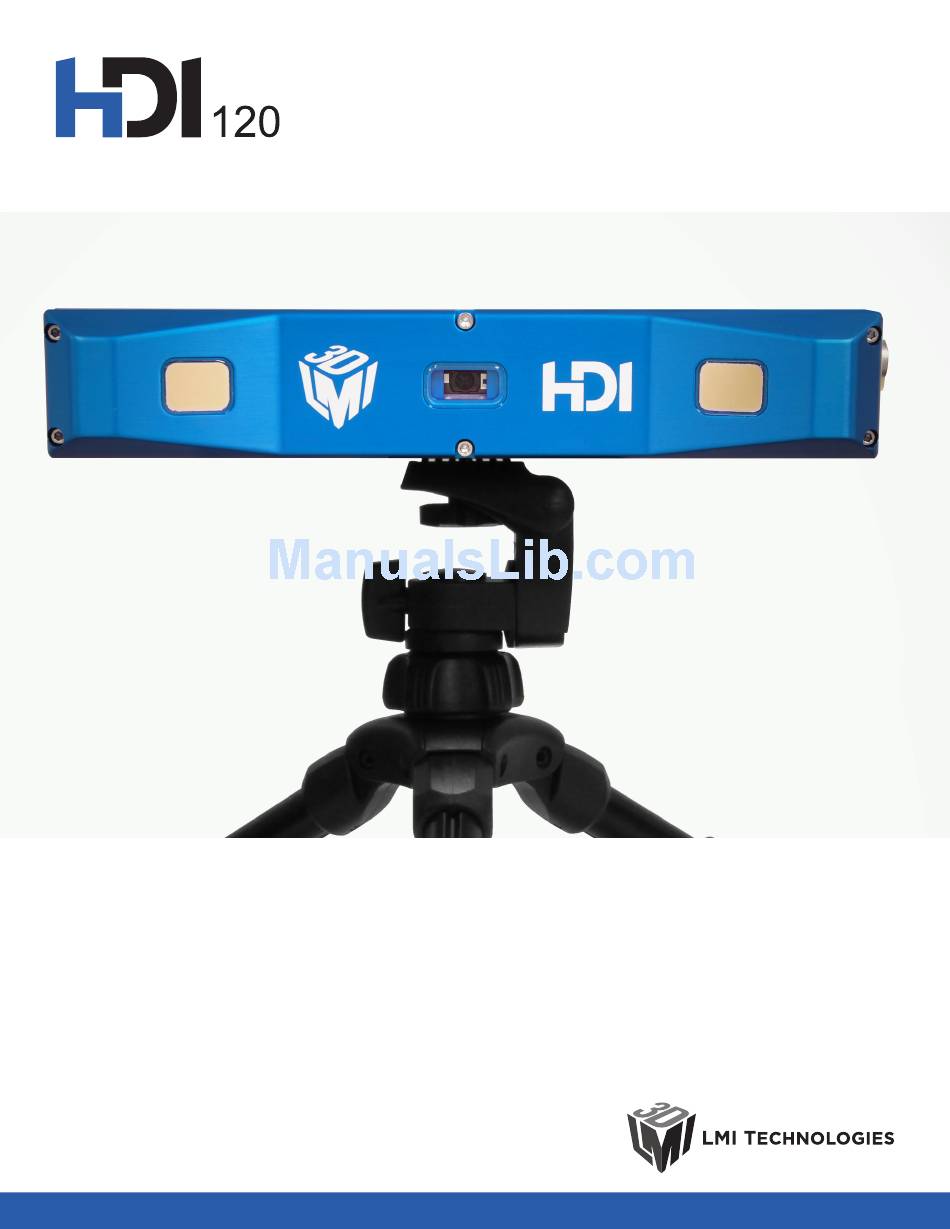

    Quick Start Guide 15197-1.0_MANUAL_Quickstart-HDI-120.pdf...
  • Page 2 Getting Started with the HDI 120 3D Scanner Congratulations on purchasing the HDI 120 3D Scanner. This quick start guide provides you with the resources to get you started on 3D scanning. The HDI 120 3D Scanner comes with: •...
  • Page 3 Hardware included with your HDI 120 Scanner NOTE: Please refer to the FlexScan3D User’s Guide for information on installing and using the Flexscan3D software at http://manual.lmi3d.com. Once you have received your HDI 120 3D Scanner, please verify these items were included: HDI 120 Scanner, Blue LED Table-top Tripod 5m Power/Ethernet to Master cordset, 90-degrees, 2xRJ45 ends 5m Sensor Trigger cordset, open wire end...
  • Page 4 Set up the Table-top Tripod and mount the Scanner • Spread the Table-top Tripod legs and place them on a flat, stable surface. Attach the HDI 120 Scanner to the Table-top Tripod head by hand-tightening the • head knob. Head knob Connect the Cordsets to the Scanner • Connect the Power/Ethernet to Master Cordset...
  • Page 5 Connect the Power/Ethernet to Master Cordset to the Master 100 • Plug the Power/Sync (black cord) RJ45 end of the Power/Ethernet to Master Cordset to the Power port on the Master 100 • Plug the Ethernet (yellow cord) RJ45 end of the Power/Ethernet to Master Cordset to the Ethernet port on the Master 100 Connect the black cord first Connect the yellow cord after the black Connector the Sensor Trigger Cordset to the Master 100 •...
  • Page 6 Connect the Master 100 Power Supply • Connect the Master 100 Power Supply to the 48V port on the Master 100 Plug the Master 100 Power Supply power cable into an electrical outlet. • Connect the Master 100 to your computer Connect the Host port on the Master 100 to your computer using a CAT5e or better RJ45 •...
  • Page 7: Power Up The Scanner

    The Power and LED indicators should light once the Power and Safety buttons have been switched on (Consult the User Manual for troubleshooting tips if these indicators remain unlit) The physical assembly of the HDI 120 3D Scanner is now complete Next Steps - Installing FlexScan3D NOTE: Please refer to the FlexScan3D User’s Guide for information on installing and using the Flexscan3D software.
  • Page 8 Copyright © 2013 LMI Technologies Inc. All rights reserved.
