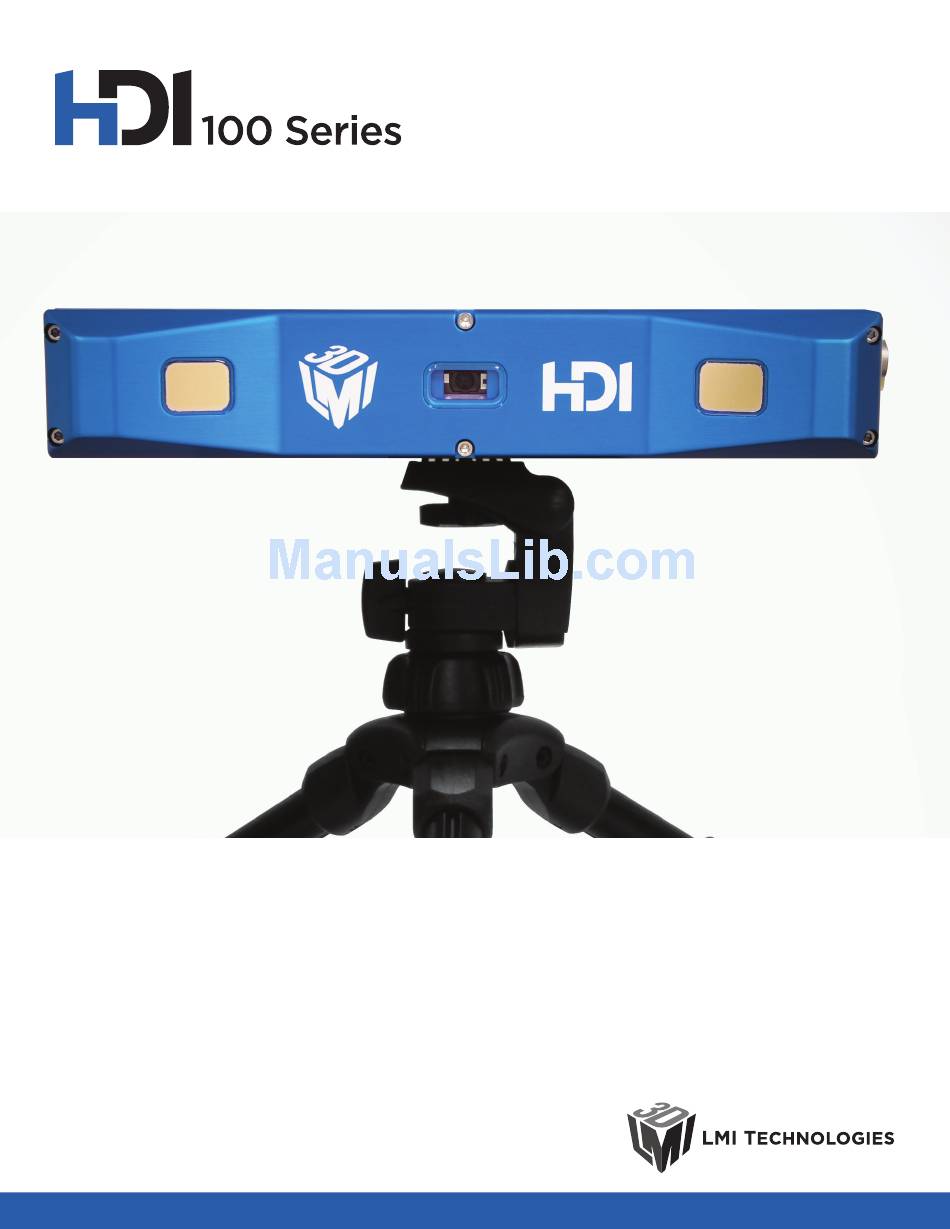

Page 1: Quick Start Guide
Quick Start Guide 15197-1.2_MANUAL_Quickstart_HDI-100-Series-Master-100.pdf... - Page 2 Getting Started with the HDI 100 Series 3D Scanner Congratulations on purchasing the HDI 100 Series 3D Scanner. This quick start guide provides you with the resources to get you started on 3D scanning. The HDI 100 Series 3D Scanner comes with: •...
- Page 3 Hardware included with your HDI 100 Series Scanner NOTE: Refer to the FlexScan3D User’s Guide for information on installing and using the FlexScan3D software at http://manual.lmi3d.com. When you receive your HDI 100 Series 3D Scanner, check that these items are included: HDI 100 Series Scanner, Blue LED Table-top Tripod 5m Power/Ethernet to Master cordset, 90-degrees, 2xRJ45 ends...
- Page 4 Set up the Table-top Tripod and mount the Scanner • Spread the Table-top Tripod legs and place them on a flat, stable surface. • Attach the HDI 100 Series Scanner to the Table-top Tripod head by hand-tightening the head knob. Head knob Connect the Cordsets to the Scanner • Connect the Power/Ethernet to Master Cordset...
- Page 5 Connect the Power/Ethernet to Master Cordset to the Master 100 • Plug the Power/Sync (black cord) RJ45 end of the Power/Ethernet to Master Cordset to the Power port on the Master 100 • Plug the Ethernet (yellow cord) RJ45 end of the Power/Ethernet to Master Cordset to the Ethernet port on the Master 100 Connect the black cord first Connect the yellow cord after the black Connect the Sensor Trigger Cordset to the Master 100 • If you wish to use the Master 100 Trigger button to trigger the scanner, connect the green connector end of the Sensor Trigger Cordset to the Sensor I/O port on the Master 100...
- Page 6 Connect the Master 100 Power Supply • Connect the Master 100 Power Supply to the 48V port on the Master 100 • Plug the Master 100 Power Supply power cable into an electrical outlet. Connect the Master 100 to your computer • Connect the Host port on the Master 100 to your computer’s Ethernet jack using a CAT5e cable (not supplied).
-
Page 7: Power Up The Scanner
The Power and LED indicators should light once the Power and Safety switches have been turned on (Consult the User Manual for troubleshooting tips if these indicators remain unlit) The physical assembly of the HDI 100 Series 3D Scanner is now complete Next Steps - Installing FlexScan3D NOTE: Refer to the FlexScan3D User’s Guide for information on installing and using the FlexScan3D software at http://manual.lmi3d.com. - Page 8 Copyright © 2014 LMI Technologies Inc. All rights reserved.
