Summary of Contents for LMI Technologies HDI 109

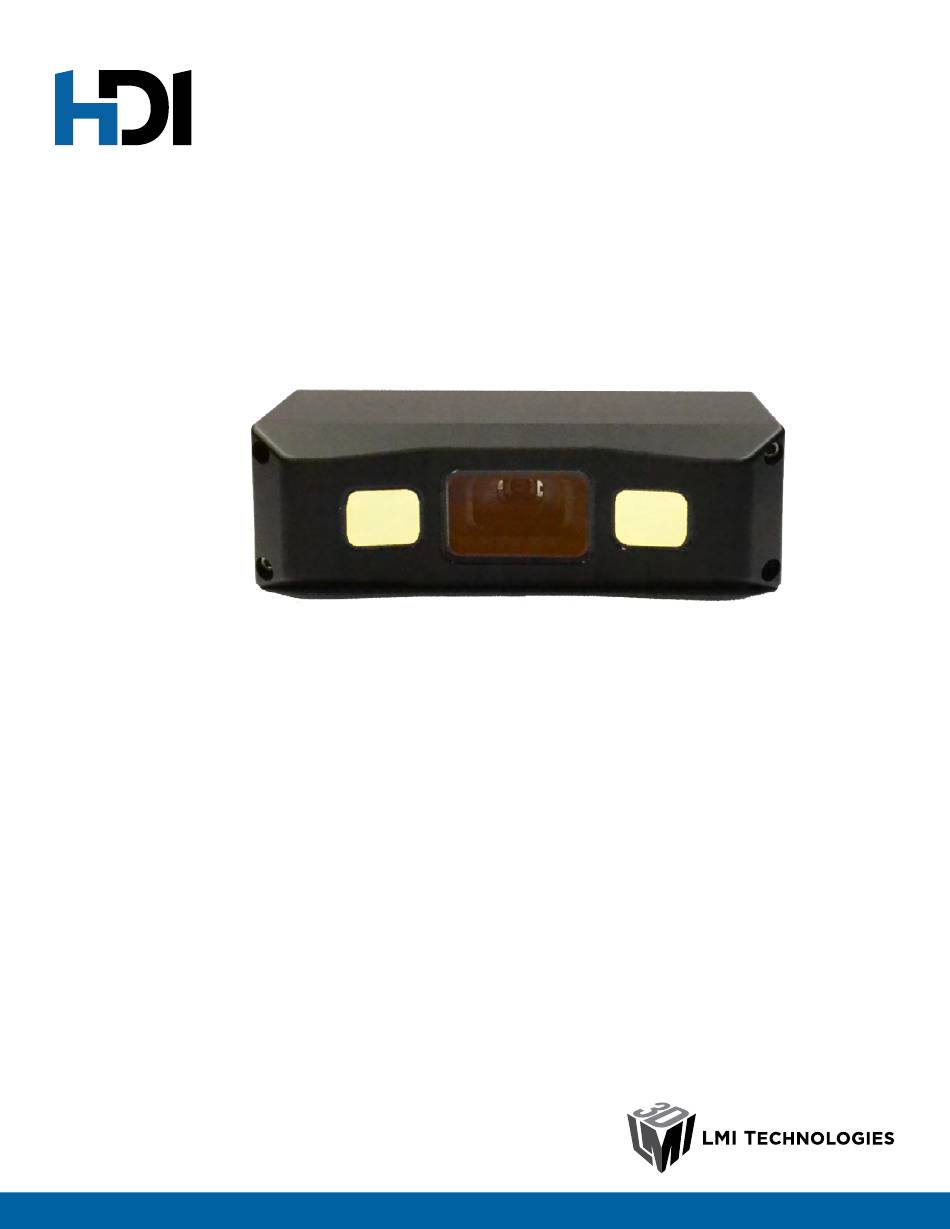

- Page 1 109 OEM Scanner Quick Start Guide 15219-1.0_MANUAL_Quickstart-HDI-109-OEM.pdf...
- Page 2 Getting Started with the HDI 109 OEM 3D Scanner Congratulations on purchasing the HDI 109 OEM 3D Scanner. This quick start guide provides you with the resources to get you started on 3D scanning. The HDI 109 OEM 3D Scanner comes with: •...
- Page 3 NOTE: Refer to the FlexScan3D User’s Guide for information on installing and using the FlexScan3D software at http://manual.lmi3d.com. When you receive your HDI 109 OEM 3D Scanner, check that these items are included: HDI 109 OEM Scanner, Blue LED Connector...
- Page 4 Mount the Scanner • Use four M5 x 0.8 screws of suitable length. The recommended thread engagement into the housing is 8 - 10 mm. Prepare a Power Cable • You must prepare a power cable using the provided connector. Refer to the table and diagram below for pin information.
- Page 5 Plug the Prepared Power Cable into the Scanner Plug an Ethernet Cable into the Scanner • Use a Cat5e Ethernet cable.
-
Page 6: Connect To Your Computer
Connect to Your Computer • Connect the Ethernet cable to a free Ethernet port on your computer. Power Up the Scanner • Apply power to the scanner. The Power indicator should light when you apply power. (Consult the User Manual for troubleshooting tips if the indicator does not light.) - Page 7 Flexscan3D software at http://manual.lmi3d.com. LMI Technologies, their partners, and resellers accept no liability for any damages (personal or to property) incurred as a result of improper use, incorrect assembly, failure to adhere to safety precautions, and/or mistreatment of this product (including its...
- Page 8 Copyright © 2015 LMI Technologies Inc. All rights reserved.
