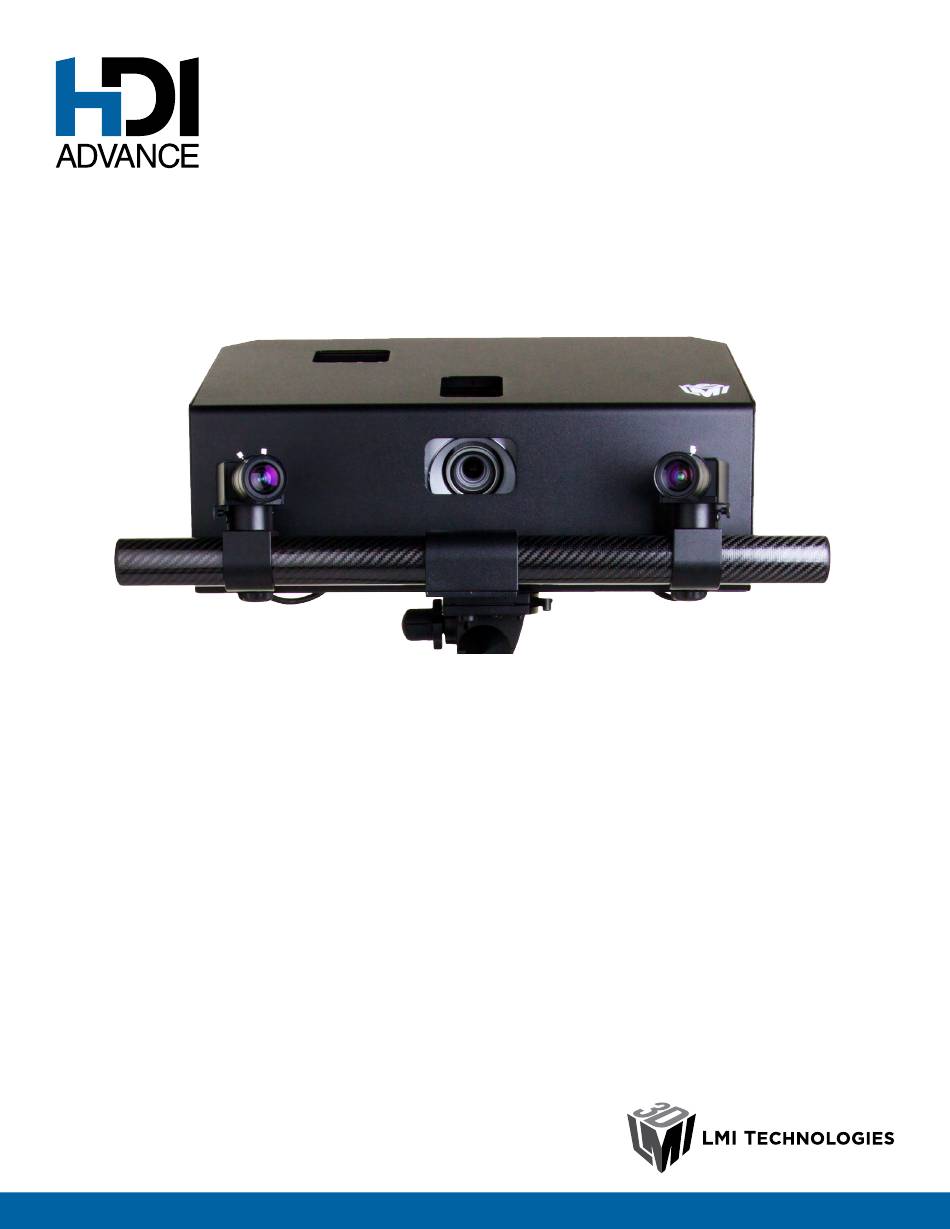

- Page 1 Quick Start Guide 15229-1.0_MANUAL_Quickstart-HDI-Advance.pdf...
- Page 2 • Physical capturing unit for capturing 3D data (some assembly is required) Downloading FlexScan3D Software The HDI Advance 3D Scanner is powered by FlexScan3D. You can download the software from the Download Center (downloads.lmi3d.com). To create a download account, please send your contact name, email address, company name, and scanner model to orders@lmi3D.com.
- Page 3 Hardware Included with Your HDI Advance Scanner When you receive your HDI Advance 3D Scanner, check that all components are included: Number Item Mount, Projector, and Remote (not shown) 2 x USB 3.0 Cameras 2 x Lenses (12mm) Tripod Legs...
-
Page 4: Tripod Setup
Tripod Setup Open the tripod legs and place them firmly on the ground. Attach the tripod head to the legs by firmly twisting the tripod head until it is hand tight. Connect the Scanner to the Tripod Depress the grey lock on the tripod head lever, and push the lever away from you until it clicks. - Page 5 Carefully lift up the pre-assembled scanner and find the mount adapter. Gently place the scanner onto the tripod head. Tilt the scanner to snap it into place on the tripod head. Attach the Lenses to the Cameras Carefully remove the lenses from the packaging and take off the camera lens cap from each camera.
- Page 6 Connect the HDMI and Power Cables to the Projector Attach the HDMI and power cables to the back of the projector. The physical assembly of the HDI Advance 3D Scanner is now complete.
-
Page 7: Use The Scanner
Use the Scanner Remove the projector lens cap. Connect the USB 3.0 cables and the HDMI cable to your computer. Plug the power cable into an electrical outlet. For information on performing scans, see the FlexScan3D user manual. - Page 8 Copyright © 2015 LMI Technologies Inc. All rights reserved.
