Life Fitness CTE200-0000-01 Parts List

Life Fitness CTE200-0000-01 Parts List

Bally cross-trainer 120v dom
Hide thumbs

Advertisement

Table of Contents

Bally Cross-Trainer

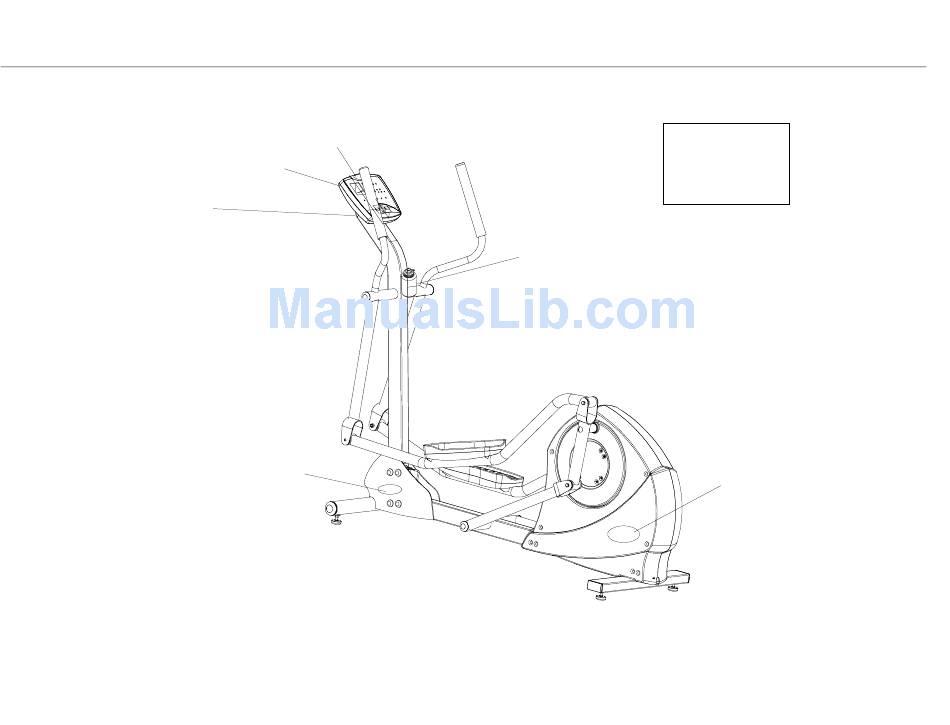

General Assembly

CONSOLE ASSEMBLY
REX235HA1
ENDCAP
REX21MV
ENDCAP SCREWS
REX0KC6
FRONT
COMPONENTS
MOVEMENT ARMS
& HARDWARE
RT4-LABEL
REX21ST
LABEL
REX223Y
1Page 1 of 6
CTE200-0000-01
WATER BOTTLE ASSY
REX235L
REAR
COMPONENTS
BLOCK
DIAGRAM
120V Dom. Eng/Eng
Hardware Bag
REX22FN
Manual
REX22FJ
LABEL
REX21RM
CABLES

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CTE200-0000-01 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Life Fitness CTE200-0000-01

Summary of Contents for Life Fitness CTE200-0000-01

  • Page 1: Rear Components

    REX235HA1 ENDCAP REX21MV ENDCAP SCREWS REX0KC6 FRONT COMPONENTS MOVEMENT ARMS & HARDWARE RT4-LABEL REX21ST LABEL REX223Y BLOCK DIAGRAM 1Page 1 of 6 CTE200-0000-01 120V Dom. Eng/Eng Hardware Bag REX22FN Manual REX22FJ WATER BOTTLE ASSY REX235L REAR COMPONENTS LABEL REX21RM CABLES...

  • Page 2: Movement Arms And Hardware

    REX219J SPRG WASHER(2) REX0J9C BOLT(2) REX21B8 ENDCAP REX219H C-RING(4) REX0JFP RT PEDAL REX2199 SPRG WASHER(8) REX0J92 SCREW(8) REX0KEH CTE200-0000-01 Rear Clevis Covers REX22XU LOCKING NUT(4) REX22RR STRAIN RELIEF BUSHING REX21BF REX219G WASHER REX22B0 SPRG WASHER(2) REX0JB7 C-RING(4) REX0JFP SPRG WASHER(2)
  • Page 3 LOCKING NUT(4) REX0KR5 RETAINIG RING REX21A7 CLAMP BOLT REX21A6 MAGNETIC BRAKE ASS'Y REX21BJ SPRG WASHER(4) REX0J9D C-RING REX0JEJ BOLT(2) REX21NS REX21BD RETAINER(2) REX217M CTE200-0000-01 BOLT(3) REX0K2W C-RING(1) REX22LR WASHER REX0J69 BEARING(2) REX0HVY C-RING(1) REX0JEG LOCK NUT(4) REX0KR3 BOLT REX0K2C BEARING(2) REX0HVQ...
  • Page 4 Bally Cross-Trainer Front Components WASHER REX22B4 SPRG WASHER(2) REX0J9C ENDCAP REX219H CTE200-0000-01 GRIP REX219Z C-RING REX0JEJ BUSHING REX219V WASHER REX22B3 SPRG WASHER(2) REX0JBD INSERTS(2) REX21NN RIGHT ARM BOLT(2) REX219U REX21B8 LOCKING NUT(4) REX22RR SCREW(12) BOLT REX0KDJ REX21BA PLATE REX218J SPACER(8)
  • Page 5 Bally Cross-Trainer Cables POWER CABLE REX01HU ADAPTOR REX01HR CTE200-0000-01 SPEED SENSOR REX01J8 CABLE REX01QT 5Page 5 of 6 120V Dom. Eng/Eng MAIN CABLE REX01RT BRAKE CABLE REX01QH DC MOTOR REX01HL...
  • Page 6 LOWER FRAME CABLE REX01QT GRAY BLUE GREEN CONSOLE BLACK WHITE YELLOW MAIN UPPER CABLE REX01R LOWER FRAME CABLE REX01QT CTE200-0000-01 (BLACK) MOTOR+ (RED) -5VDC ORANGE YELLOW BLACK POWER CABLE REX01HU BLACK WHITE BLACK BLACK / WHITE 6Page 6 of 6 120V Dom.
