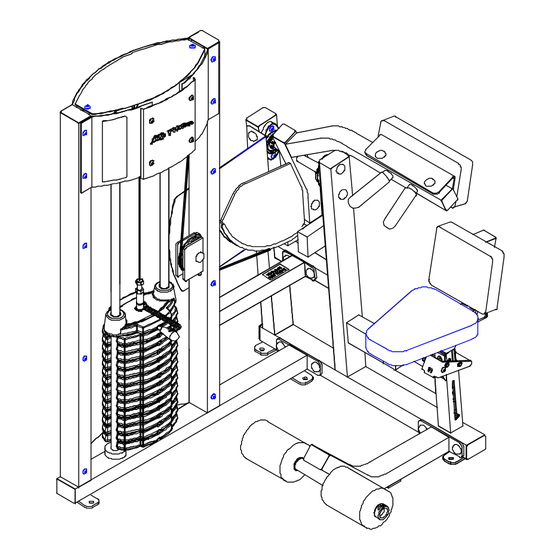

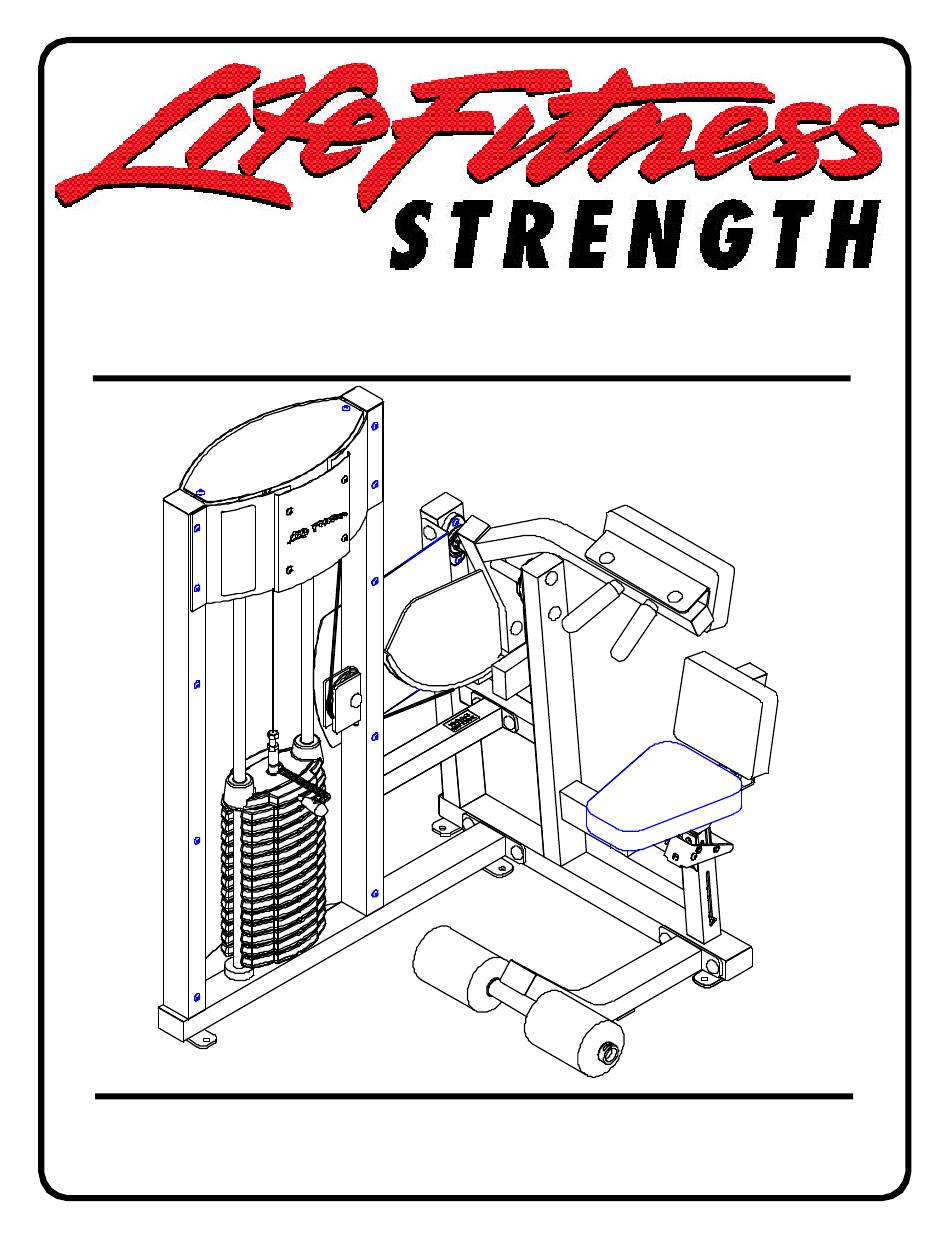

CLUB SERIES ABDOMINAL
ASSEMBLY INSTRUCTIONS
Part # 6941401
1
Revision:08/07/00
Rev A.

Advertisement

loading
Need help?

Need help?

Do you have a question about the CLUB Series and is the answer not in the manual?

Questions and answers

Related Manuals for Life Fitness CLUB Series

Summary of Contents for Life Fitness CLUB Series

  • Page 1 CLUB SERIES ABDOMINAL ASSEMBLY INSTRUCTIONS Part # 6941401 Revision:08/07/00 Rev A.
  • Page 2 PART # DESCRIPTION PART # DESCRIPTION 69159XX *TOWER 69199xx *3/16 X 12” ANGLE 6928801 CABLE, BE-TP1,T3,90-1/4 6925501 HEAD PLATE 6714901 GUIDE ROD BUSHING 3102901 3/8 X 1-1/4” BOLT 6692601 END CAP 3 X 2 3102903 3/8 X 2-1/2” BOLT 3222801 4-1/2 PULLEY 3102922 3/8 X 2-3/4”...
  • Page 3 10 3/8 X 1-1/4” BOLT 3/8” LOW HEIGHT LOCK 11 3/8 X 2-1/2” BOLT 3/8”ACORN NUT 12 3/8 X 2-3/4” BOLT 3/8” SAE WASHER 13 3/8 X 3” BOLT 14 3/8 X 3-1/2” BOLT RH CAP 15 3/8 X 3-3/4” BOLT 40 3/8 X 1”...
  • Page 4 2" 2" DETAIL A SCALE 1 : 5...
  • Page 6 3/8 X 2-3/4” 12 15 3/8 X 3-3/4” FIGURE 1 STEP 1: • LOOSELY assemble the SEAT FRAME (3) to the lower tube on the TOWER (1) using four RH CAPS (26), two 3/8 X 3-3/4” BOLTS (15), four 3/8” SAE WASHERS (19), four 3/8” RH WASHERS (20) and two 3/8” LOW HEIGHT LOCK NUTS (17) as shown in FIGURE 1.
  • Page 7 15 3/8 X 3-3/4” FIGURE 2 STEP 2: • LOOSELY assemble the FOOT SUPPPORT (2) to the SEAT FRAME (3) using four RH CAPS (26), two 3/8 X 3-3/4” BOLTS (15), four 3/8” SAE WASHERS (19), four 3/8” RH WASHERS (20), and two 3/8” LOW HEIGHT LOCK NUTS (17) as shown in FIGURE 2.
  • Page 8 14 3/8 X 3-1/2” FIGURE 3 STEP 3 • SECURELY assemble the CAM SHROUD (6) to the SEAT FRAME (3) using two RH CAPS (24), two 3/8 X 3-1/2” BOLTS (14), four 3/8” SAE WASHERS (19), four 3/8” RH WASHERS (20), two 3/8” LOW HEIGHT LOCK NUTS (17) and two RH CAPS (26), as shown in FIGURE 3.
  • Page 9 SPRING PIN SHAFT SHOULD BE INSERTED INTO SLOTTED PLATE AS SHOWN...
  • Page 10 FIGURE 4 STEP 4 • Slide three ACCORIDIAN SLEEVES (28) over the shafts on the BOOM ASSEMBLY (4) as shown in FIGURE 4. • Slide two PILLOW BLOCKS (21) over the shafts on the BOOM ASSEMBLY (4) as shown in FIGURE 4. •...
  • Page 11 FIGURE 6 11 3/8 X 2-1/2” STEP 6: • SECURELY assemble the COUNTERBALANCE (7) to the AB ARM (4) using two RH CAPS (26), one 3/8 X 2-1/2” BOLT (11), two 3/8” SAE WASHERS (19), two 3/8” RH WASHERS (20) and one 3/8” LOW HEIGHT LOCK NUT (17) as shown in FIGURE 6.
  • Page 12 CABLE FIGURE 7 STEP 7: • Slide the end of the CABLE into the bushing on the ABARM (4) as shown in FIGURE 8. 3/4" 3/8 X 1-1/4” 10 FIGURE 8 STEP 8: • SECURELY assemble the CHEST PAD (35) to the 3/16 X 12” ANGLE (8) using two RH CAPS (26), two 3/8 X 1-1/4” BOLTS (10) and two 3/8”...
  • Page 13 11 3/8 X 2-1/2” FIGURE 9 STEP 9: • SECURELY assemble the 3/16 X 12” ANGLE (8) to the AB ARM (4) using four RH CAPS (26), two 3/8 X 2-1/2” BOLTS (11), four 3/8” RH WASHERS (20) and two 3/8” LOW HEIGHT LOCK NUTS (17) as shown in FIGURE 9. 3/8 X 3”...
  • Page 14 FIGURE 11 3/8 X 1-1/4” 10 3" STEP 11: • SECURELY assemble one BACK PAD (37) to the SEAT FRAME (3) using two RH CAPS (24), two 3/8 X 1-1/4” BOLTS (10) and two 3/8” RH WASHERS (20) as shown in FIGURE 11.
  • Page 15 HEAVY WEIGHT FIGURE 12 OPTION STEP 12: • Insert the two GUIDE RODS (32) FOUND IN SHROUD KIT into the base of the TOWER (1) as shown in FIGURE 12. Lubricate the GUIDE RODS (32) with a silicon or teflon spray that is available at most hardware stores. •...
  • Page 16 FIGURE 13 11 3/8 X 2-1/2” TIGHTEN! STEP 13: • SECURELY assemble the GUIDE ROD SUPPORT (5) to the TOWER (1) using four RH CAPS (26), two 3/8 X 2-1/2” BOLTS (11), four 3/8” RH WASHERS (20) and two 3/8” LOW HEIGHT LOCK NUTS (17) as shown in FIGURE 13. •...
  • Page 17 FIGURE 14 STEP 14: • The weight stack LABEL SHEET (31) includes labels for the lbs. and kgs., for both the standard and optional stacks. • Peel the backing off the WEIGHT STACK LABELS (31), line up sheet to the right of the selector opening and apply labels to the WEIGHT PLATES (33 or 34), starting with the HEAD PLATE (9) as shown in FIGURE 14.
  • Page 18 FIGURE 16 3/8 X 1” BUTTON HEAD 40 STEP 16: • SECURELY assemble the TOP SHROUD (31) to the TOWER (1) using two 3/8 X 1” BUTTON HEAD BOLTS (40) and two STARLOCK WASHERS (38) as shown in FIGURE 16.
  • Page 19 3/8 X 3-1/2” 39 FIGURE 17 STEP 17: (NOTE: If the PARTIAL SHROUD KIT is being used follow STEP 17. If the FULL SHROUD KIT is being used follow STEP 18) • SECURELY assemble the FRONT PARTIAL SHROUD (41) and the REAR PARTIAL SHROUD (42) to the TOWER (1) using ten 3/8 X 3-1/2”...
  • Page 20 3/8 X 3-1/2” 39 FIGURE 18 STEP 18: • SECURELY assemble the FRONT FULL SHROUD (43) and the REAR FULL SHROUD (44) to the TOWER (1) using eight 3/8 X 3-1/2” BUTTON HEAD BOLTS (39), eight STARLOCK WASHERS (38), and eight 3/8” ACORN NUTS (18) as shown in FIGURE 18.
  • Page 21 FIGURE 19 STEP 19: • Assemble the PLACARD LABEL (29) or the FOREIGN LANGUAGE PLACARD LABEL (30) to the FRONT SHROUD (41 or 43) as shown in FIGURE 19.

  • Page 22: Warranty Information

    • Lube the Guide Rods. Apply the lubricant to a cotton cloth, then run the cotton cloth up and down the guide rods as needed. Do not spray lubricant directly on the Guide Rods. Thank you for purchasing the LifeFitness CLUB SERIES ABDOMINAL. If unsure of proper use of equipment, call your local LifeFitness distributor or call the LifeFitness customer service department at...
