Life Fitness CLUB Series Assembly Instructions Manual
Vertical knee raise
Hide thumbs
Also See for CLUB Series:
- User manual (48 pages) ,
- Service manual (35 pages) ,
- Operation manual (26 pages)
Advertisement
Quick Links
Advertisement
Related Manuals for Life Fitness CLUB Series
Summary of Contents for Life Fitness CLUB Series

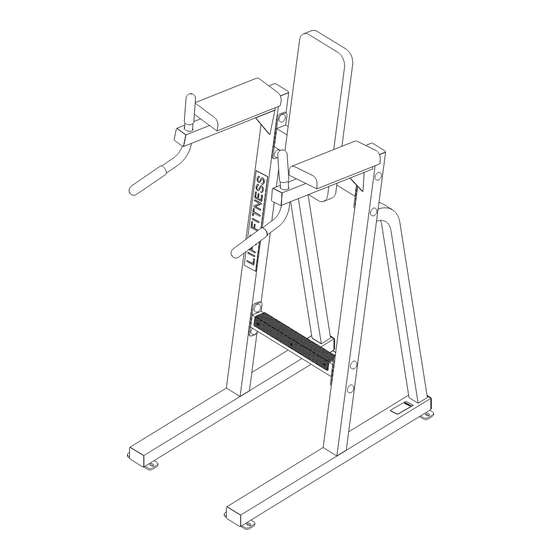

- Page 1 CLUB SERIES VERTICAL KNEE RAISE ASSEMBLY INSTRUCTIONS Part # 7335201 Revision:11/15/02 Rev. C...
-
Page 2: Parts List
PARTS LIST PART # DESCRIPTION DESCRIPTION PART # P04-0004-L LEFT FRAME 3/8” RH WASHER P05-0009 P04-0004-R RIGHT FRAME 3/8” LOW HEIGHT LOCK NUT DB2E03807200NU P04-0005 BACK SUPPORT WHITE RH CAP P06-0021 P04-0006 CROSS SUPPORT PLATINUM RH CAP P06-0021 DA1C03807716NU 3/8 X 77mm BOLT BACK PAD P07-0002 DA1C03809316NU... - Page 3 5 3/8 X 77mm BOLT 3/8” LOW HEIGHT LOCK 6 3/8 X 93mm BOLT 3/8” SAE WASHER RH CAP 3/8” RH WASHER (WHITE/PLATINUM)
- Page 4 6 3/8 X 93mm FIGURE 1 STEP 1: • SECURELY assemble the BACK SUPPORT (3) and the CROSS SUPPORT (4) to the LEFT and RIGHT FRAME (1 & 2) using sixteen RH CAPS (10), eight 3/8 X 93mm BOLTS (6), sixteen 3/8” SAE WASHERS (7), sixteen 3/8” RH WASHERS (8) and eight 3/8” LOW HEIGHT LOCK NUTS (9) as shown in FIGURE 1.
- Page 5 FIGURE 2 5 3/8 X 77mm SERIAL # LOCATION STEP 2: • SECURELY assemble the BACK PAD (11) to the BACK SUPPORT (3) using two RH CAPS (10), two 3/8 X 77mm BOLTS (5), two 3/8” SAE WASHERS (7) and two 3/8” RH WASHERS (8) as shown in FIGURE 2. •...
-
Page 6: Warranty Information
• Lube the Guide Rods. Apply the lubricant to a cotton cloth, then run the cotton cloth up and down the guide rods as needed. Do not spray lubricant directly on the Guide Rods. Thank you for purchasing the LifeFitness CLUB SERIES VERTICAL KNEE RAISE. If unsure of proper use of equipment, call your local LifeFitness distributor or call the LifeFitness customer service depart-...
