58 | Interior components diagram and parts list
13.2.5 Group 5

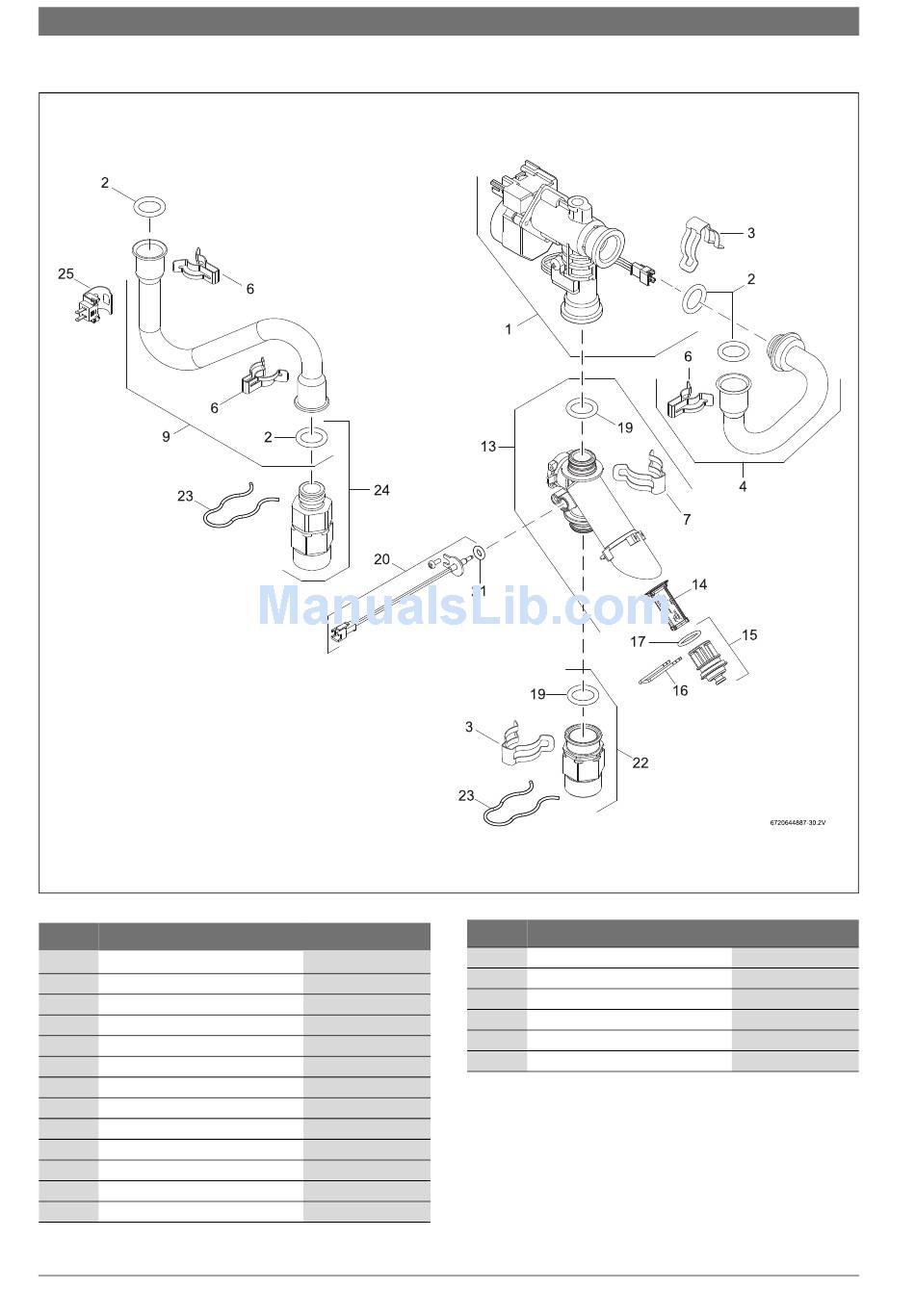

Fig. 82 Components Diagram
Item
Description
1
Water valve with engine
2
O-ring
3
Clip for water valve
4
Pipe
6
Clip
7
Clip
9
Pipe
13
Housing hydraulic block
14
Strainer
15
Cover
16
Wire form spring
17
O-ring
19
O-ring
Table 44
6 720 644 887 (2013/02)
Item
Reference
20
8 708 505 023 0
21
8 700 205 147 0
22
8 716 102 607 0
23
8 738 702 690 0
24
8 701 201 028 0
25
8 738 704 185 0
Table 44
8 738 703 311 0
8 738 704 672 0
8 700 507 081 0
8 738 702 550 0
8 704 705 029 0
8 700 205 312 0
8 700 205 157 0
Description
Temperature sensor
O-ring
Connection bush
Clip
Connection bush
Temperature sensor
Reference
8 700 400 042 0
8 700 205 310 0
8 738 702 558 0
8 701 300 025 0
8 738 703 313 0
8 700 400 015 0
C 1210 ES/ESC
Table of
Contents
Previous
Page
