13.2 Components diagram
13.2.1 Group 1

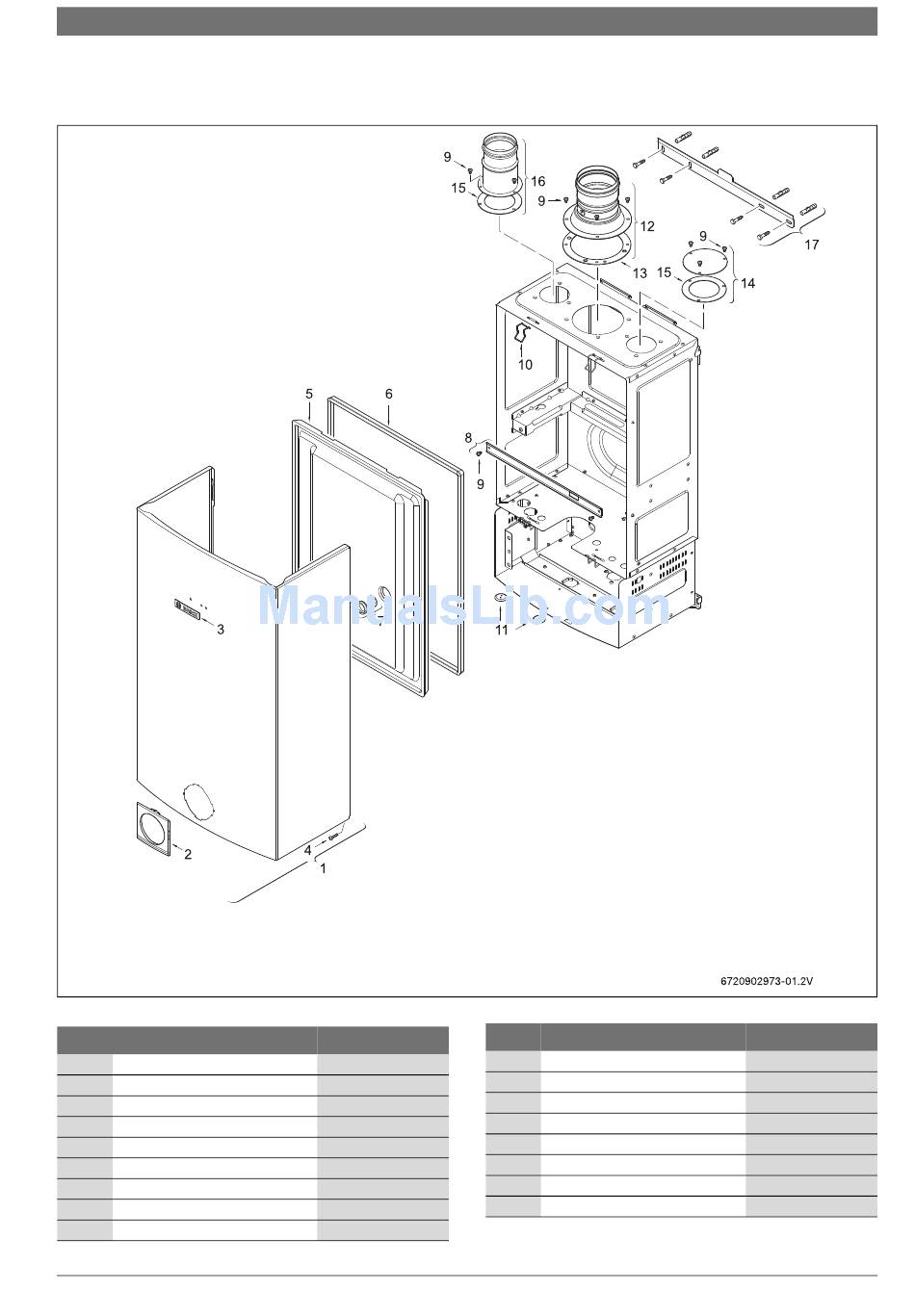

Fig. 78 Components Diagram
Item
Description
1
Front cover
2
Cover shield
3
Trade mark badge
4
Cover screw
5
Combustion cover
6
Combustion cover gasket
7
Observation window
8
Holding bracket
9
Screw
Table 40
C 1210 ES/ESC
Item
Reference
10
8 705 431 412 0
11
8 705 506 906 0
12
8 701 103 140 0
13
8 703 401 170 0
14
8 700 506 300 0
15
8 704 701 084 0
16
8 705 600 003 0
17
8 708 104 103 0
Table 40
8 703 403 012 0
Interior components diagram and parts list | 53
Description
Combustion cover clip
Grommet set
Exhaust accessory
Gasket exhaust
Inlet air cover
Inlet air gasket
Inlet air accessory
Mounting bracket
Reference
8 701 201 032 0
8 710 203 039 0
8 705 504 152 0
8 700 103 710 0
8 708 006 022 0
8 700 103 166 0
8 705 504 154 0
8 701 309 164 0
6 720 644 887 (2013/02)
