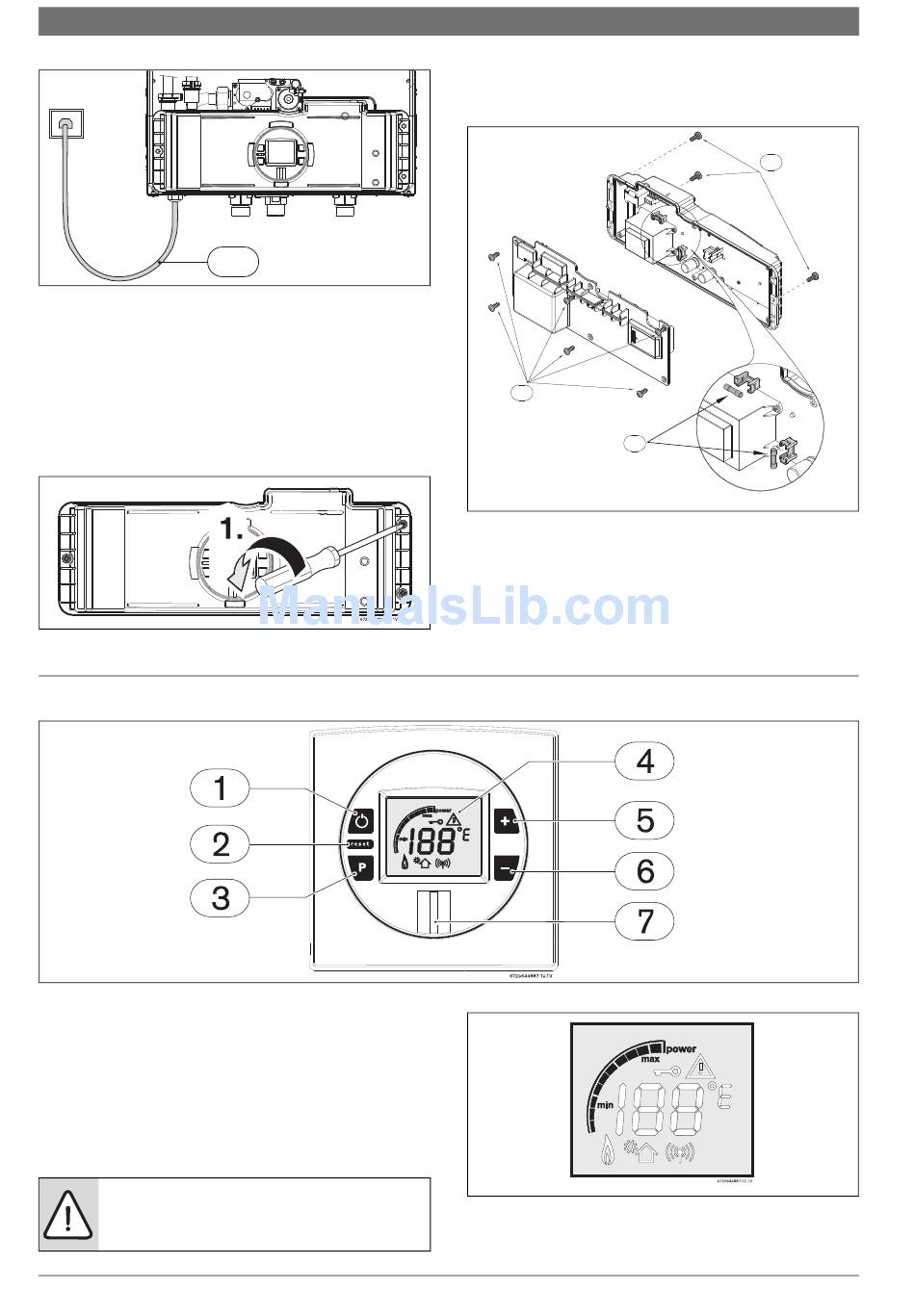

32 | Operation instructions

Fig. 44 Connecting power supply cord
[1]
Power cord length: 3ft.
Note: Outlet appliance is plugged in to should be clear from possible
water damage.
5.2

Position of the fuses in control unit

To check fuses, proceed as follows:
▶ Remove the front cover, see fig. 4, page 8.
▶ Remove the three screws from the control unit.
Fig. 45
6
Operation instructions
Fig. 47
[1]
On/Off button
[2]
Reset button
[3]
Program Key
[4]
LCD display
[5]
Up button
[6]
Down button
[7]
Power On or stand-by LED
6.1

Description LCD Display

WARNING:
▶ Do not use any cleaning aggressive or corrosive
agents to clean the window.
6 720 644 887 (2013/02)
6720608643-15.1AL
1
▶ Remove the six screws from the back cover of the control unit, see fig.
46, pos. 2.
▶ Check the fuses in the printed circuit board, see fig. 46, pos. 3.
2
3
Fig. 46 Fuses position
▶ After checking the fuses, reinstall all parts in reverse order.
Fig. 48 Power bar indicator (input)
1
6720608158-78.1AL
C 1210 ES/ESC
