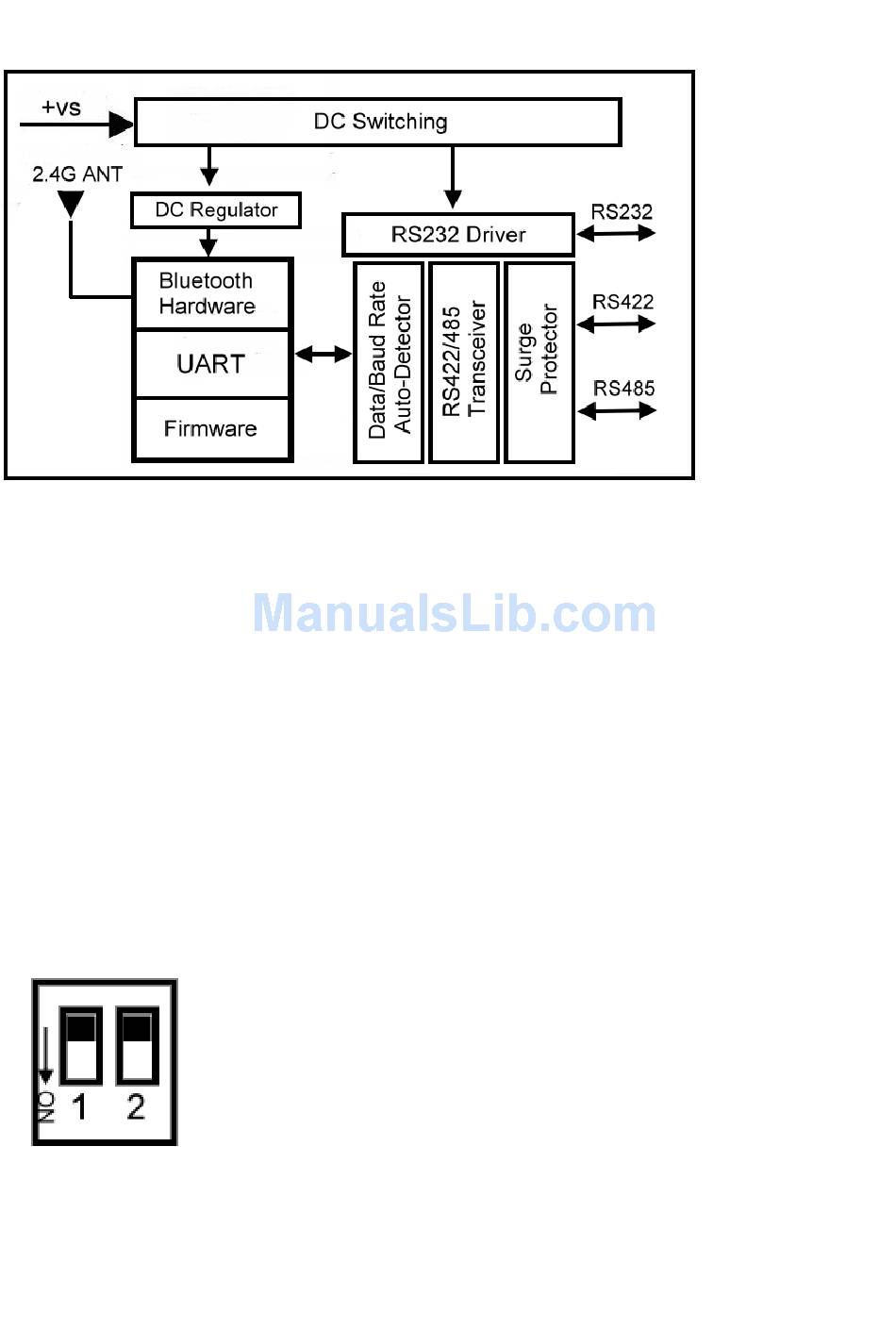

2-2.Block Diagram
2-3. LED Indictor
PWR LED:
When power is properly supplied to TRP-C51, the PWR LED will on.
LINK LED:
Turn on: Device connects availed.
TX LED: RS232/422/485 data transmitting.
RX LED: RS232/422/485 data receiving.
2-4. DIP Switch
Select RS232 or RS422 / 485
2-4-1. The 2-Pin DIP-Switch for configuration mode
SW1,2: OFF OFF: RS232
SW1,2:ON ON: RS422/485
