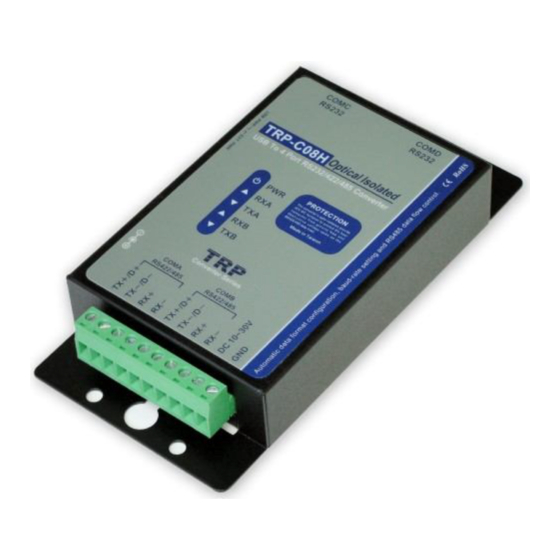

TRP-C08H
USB to 2 RS232 and 2 RS422/485 Isolated Converter
User's Manual
Printed Feb.2014 Rev 1.7
Trycom Technology Co.,Ltd
No.35, Zhongxing Rd., Guishan Township, Taoyuan County 333, Taiwan.
Tel : 886-3-350-3351 Fax: 886-3-350-3352
Web: www.trycom.com.tw
Copyright
Copyright Notice: The information in this manual is subject to change without notice to improve reliability, design and
function and does not represent a commitment on the part manufacturer. No part of this manual may be reproduced,
copied, or transmitted in any form, without prior written permission by the manufacturer. Products mentioned in this
manual are mentioned for identification purposes only. In this manual, product names appearing may or may not be
registered trademarks of their respective companies or copyright.
Advertisement
Related Manuals for Trycom Technology TRP-C08H
Summary of Contents for Trycom Technology TRP-C08H

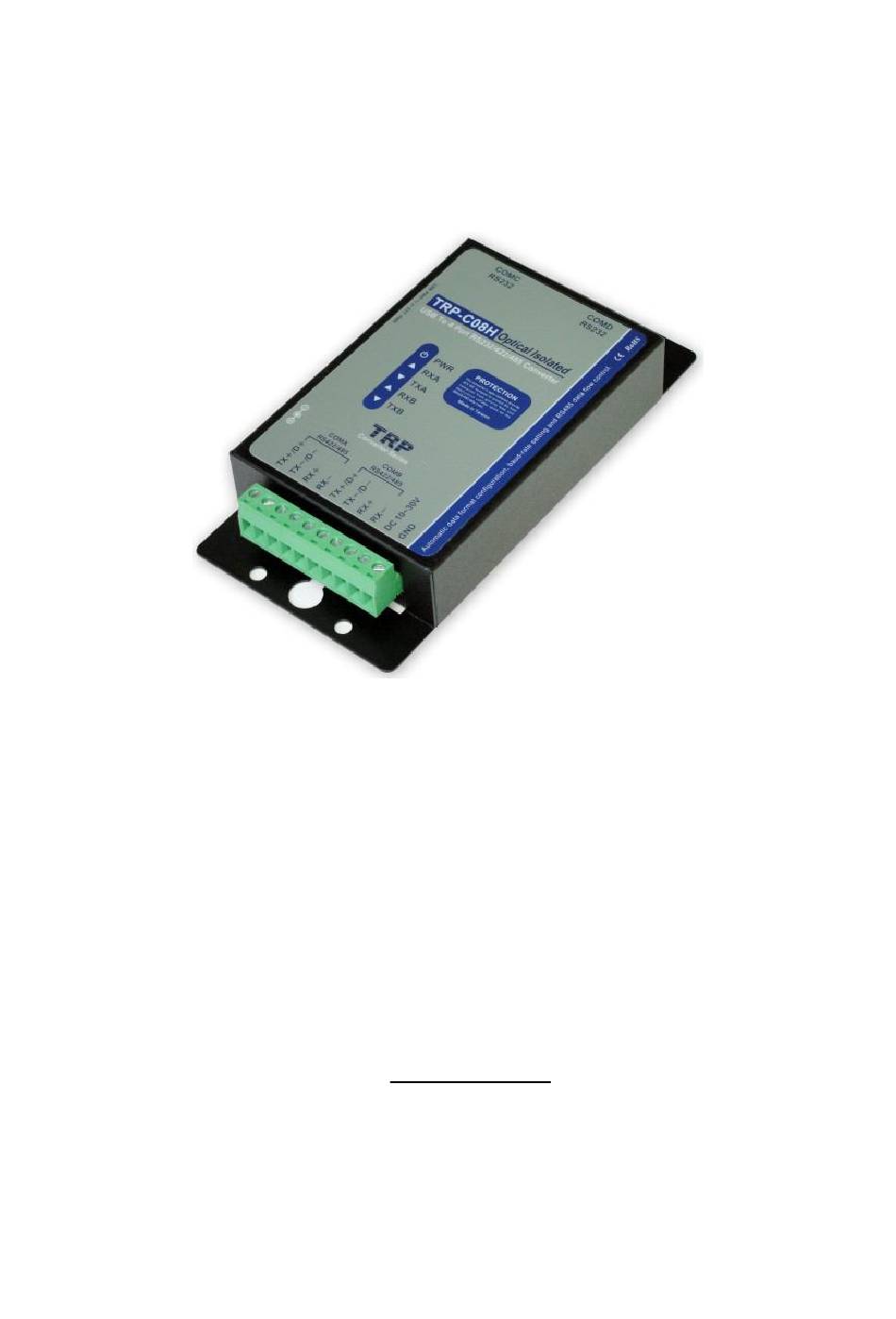

- Page 1 TRP-C08H USB to 2 RS232 and 2 RS422/485 Isolated Converter User’s Manual Printed Feb.2014 Rev 1.7 Trycom Technology Co.,Ltd No.35, Zhongxing Rd., Guishan Township, Taoyuan County 333, Taiwan. Tel : 886-3-350-3351 Fax: 886-3-350-3352 Web: www.trycom.com.tw Copyright Copyright Notice: The information in this manual is subject to change without notice to improve reliability, design and function and does not represent a commitment on the part manufacturer.
- Page 2 1. Introduction The TRP-C08H allows you to connect 4 serial devices simultaneously by using a USB interface. With auto configuration in data format, baud rate and RS485 data flow direction control TRP-C08H is able to automatically configure RS-232, RS-422 and RS-485 signals, data format and baud rate without outer switch setting.
-
Page 3: Hardware Description
Humidity: 10-90% non-condensing. 2. Hardware Description 2-1. Panel layout 2-2. LED Indictor PWR LED: System is ready. - Page 4 The TRP-C08H has two DB-9 male connector and dual 4-PIN RS422/485 connector. The serial port is configured as a DTE (data terminal equipment) device. All PC COM ports are DTE ports. A null modem cable is required to make a connection between the PC COM port and the TRP-C08H serial port.
- Page 5 2-7. RS422 Wiring The RS-422 mode supports 4 channels with full duplex operation for Receive, Transmit, the data lines are in differential pairs. 2-8. RS232 Wiring The RS-232 supports 8 channels plus Signal Ground and is configured as DTE like a computer. Signals are single ended and referenced to Ground.
-
Page 6: Trp-C08H Software Installation
2-9. USB Cable Wiring TRP-C08H is true USB 2.0 specification; it also supports USB V1.0, V1.1 standard. It is strongly to recommend user use the standard A to B type USB 2.0 cable if USB1.0 cable can not work properly. - Page 7 The utility displays a message stating “Installation completed”. Use “Exit” button to complete the driver installation. 3-1-1.TRP-C08H Device Installation & Detection: Connect TRP-C08H to the USB Host controller of the PC using a USB cable. The first time you...
- Page 8 “Your devices are ready to use”, Device driver software installed successfully. TRP-C08H device detection can be confirmed by checking at the Device manager. Check for “ High-Speed USB MultiSerial Compound Device” under Universal Serial Bus controllers and you will find “High-Speed USB Serial Port (ComX)”...
- Page 9 Use “MSSetup.exe” utility to install the driver. Double click on the utility to start the installation process. Press “Install” button to install the drivers for High-Speed USB Multi serial Device. During the installation process, a warning message will popup informing the user that the software being used has not passed the Windows Logo testing.
- Page 10 The utility will display a message stating “Installation completed”. Use “Exit” button to complete the driver installation. Connect TRP-C08H to the USB Host controller of the PC by using a USB cable. The first time you plug the adapter into the USB port, Windows will bring up the "Found New Hardware Wizard"...
- Page 11 As specified in earlier section, a warning message will popup informing the user that the software being used has not passed the Windows Logo testing. You can ignore the warning message by clicking on the option “Continue Anyway”.
- Page 12 The following window conveys that the OS had finished the software installation for “High-Speed USB Multi Serial Compound Device”. Click on “Finish” to complete found new hardware wizard.
- Page 13 Follow the same steps as explained for “High-Speed USB Multi Serial Compound Device” for the second port installation . Select the option “Install the software automatically”…… “Continue Anyway”⋯ ⋯...
- Page 14 The following wizard indicates that the OS has completed installing the software for the first serial port. Continue the same process for installing the rest of the serial ports. TRP-C08H device detection can be confirmed by checking the Device manager. Check for “High-Speed USB Multi Serial Compound Device” under Universal Serial Bus Controllers and...
- Page 15 Now the TRP-C08H Device is ready to use. 3-3 .Uninstall XP driver Use “MSUninst.exe” to uninstall the TRP-C08H device driver from your PC. Double click on the utility to run the Uninstaller. Click on OK to proceed further. Use the “Exit” button to complete the Uninstaller utility. No need to restart the PC, unless prompted by the OS.
-
Page 16: How To Test Trp-C08H
6. How to test TRP-C08H Trycom Technology Co.,Ltd offers test utility, this is utilities may help user to demo and test TRP-C08H fast and easily. User may find the utilities in Trycom support CD or download from Trycom web www.trycom.com.tw , direct to perform TRPCOM.exe from the directory. - Page 17 6-2 RS232 Loop Back Test Hardware wiring connection for RS232 Loop Test. 6-3.Loop Back Test Software Run the “TRPCOM.EXE” utility. STEP1: Click the “Setting” to set the com port and baud rate then press OK . STEP2:...
- Page 18 *Please note: “COM2” is an example of COM port number; the real COM number is assigned by user PC. . Click the "Terminal" then select Loop back enable, the counter value and pass value will be STEP3: synchronized counts.
- Page 19 6-4. RS485 test RS485 test mode, it can be connected to RS485 Device, such as connecting TRP-C28, send "$01M" instruction from the client side, when the TRP-C28 received command that will response "!01TRPC28" indicates execution completed. Step1. Run TRPCOM.exe utility. Step2.
- Page 20 7. TRP-C08H Application.
