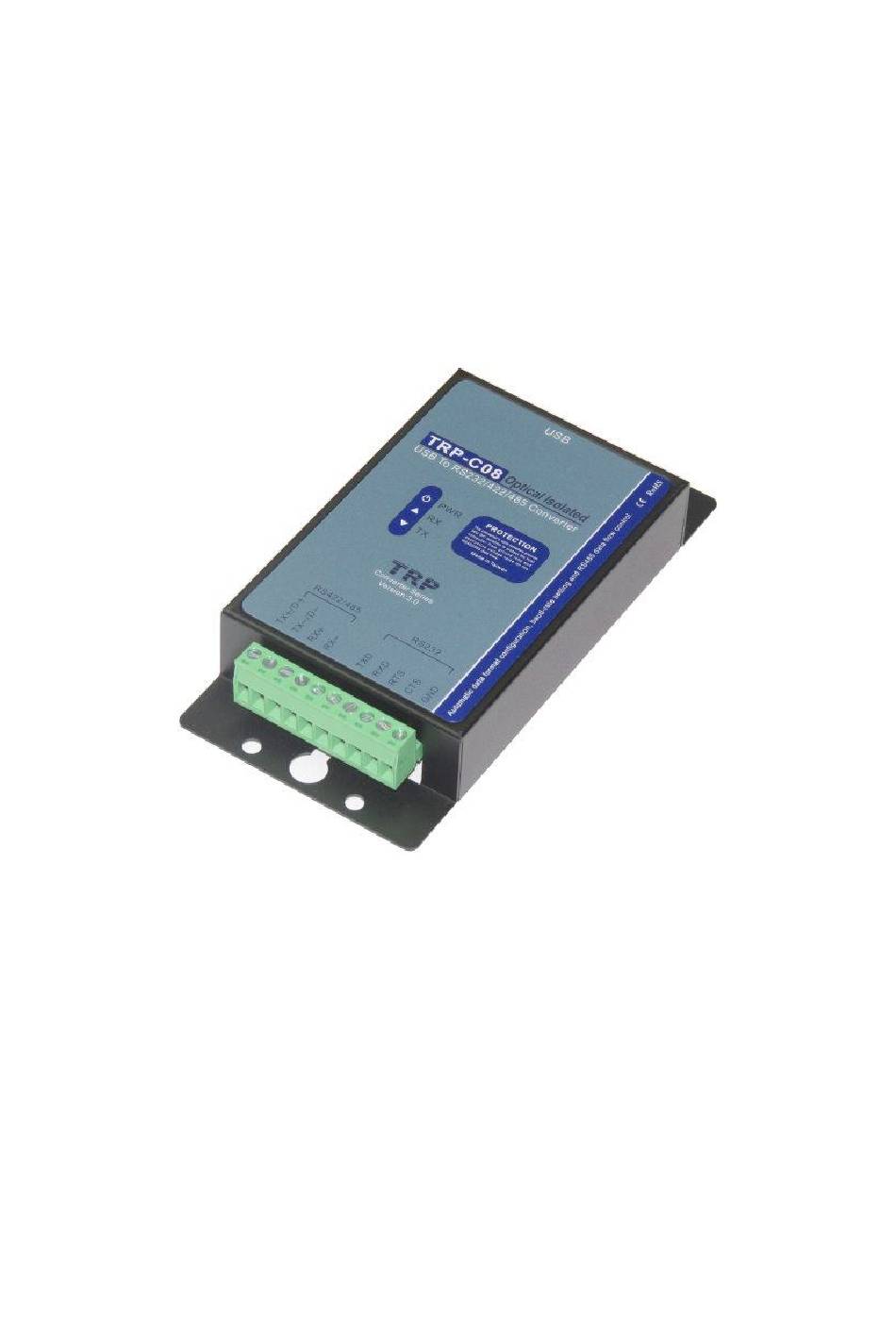

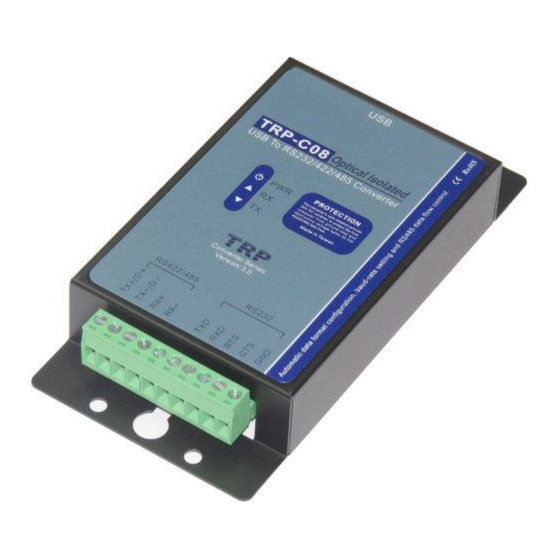

TRP-C08
(Ver: 3.0)
USB to RS232/422/485 Isolated Converter
User's Manual
Printed Nov 2022 Rev 1.0
Trycom Technology Co.,Ltd
No.35, Zhongxing Rd., Guishan Township, Taoyuan County 333, Taiwan.
Tel : 886-3-350-3351 Fax: 886-3-350-3352
Web: www.trycom.com.tw
Copyright
Copyright Notice: The information in this manual is subject to change without notice to improve reliability, design and
function and does not represent a commitment on the part manufacturer. No part of this manual may be reproduced,
copied, or transmitted in any form, without prior written permission by the manufacturer. Products mentioned in this
manual are mentioned for identification purposes only. In this manual, product names appearing may or may not be
registered trademarks of their respective companies or copyright.
Advertisement
Related Manuals for Trycom Technology TRP-C08
Summary of Contents for Trycom Technology TRP-C08
- Page 1 TRP-C08 (Ver: 3.0) USB to RS232/422/485 Isolated Converter User’s Manual Printed Nov 2022 Rev 1.0 Trycom Technology Co.,Ltd No.35, Zhongxing Rd., Guishan Township, Taoyuan County 333, Taiwan. Tel : 886-3-350-3351 Fax: 886-3-350-3352 Web: www.trycom.com.tw Copyright Copyright Notice: The information in this manual is subject to change without notice to improve reliability, design and function and does not represent a commitment on the part manufacturer.
- Page 2 TRP-C08 provides RS422/485 line surge protection and RS232/422/485 with a photo couple between USB ports. TRP-C08 can be easy to use, users have no worries about setting the serial data format and RS485 flow control, and how to wire RS422/485, everything is auto-detectable.
-
Page 3: Hardware Description
2. Hardware Description 2-1. Panel layout 2-2. Block diagram... - Page 4 Direct power input from USB bus port, current 100mA/+5V, no external power necessary. 13-2. USB Connection TRP-C08 use the standard A to B type USB cable between host and converter. 3-3. RS232 wiring connection The RS232 supports 5 channels plus Signal Ground and is configured as DTE like a computer.
- Page 5 TRP-C08's RS232 screw terminal connector (RTS & CTS SHORT). 3. TRP-C08 Software Installation 1. Power on your computer and boot to Windows. 2. Install PL-2303 driver (See figure1, 2) User may find the TRP-C08 PL2303 Driver Installer in Trycom support CD or download from Trycom web www.trycom.com.tw.
- Page 6 Step3. Windows system will auto detect a “new USB devices" and complete TRP-C08 installation 5.After installation user may verify if TRP-C08 was properly installed by Click Start – Setting -- Control panel -- double click system icon – Hardware Device Manager -- Double click on ports...
- Page 7 Use the DRemover98_2k to remove old version TRP-C08 driver. Double click DRemover98_2k If an older version of the TRP-C08 driver software existed in the system, the modify, repair or remove the program window will appear, select “Remove” to clean TRP-C08 driver completely.
- Page 8 Trycom Technology Co.,Ltd offers test utility, this is utilities may help user to demo and test TRP-C08 fast and easily. User may find the utilities in Trycom support CD or download from Trycom web www.trycom.com.tw , direct to perform TRPCOM.exe from the directory.
- Page 9 5-3.Loop Back Test Software Run the “TRPCOM.EXE” utility. STEP1: Click the “Setting” to set the com port and baud rate then press OK . STEP2: *Please note: “COM2” is an example of COM port number; the real COM number is assigned by user PC.
- Page 10 5-4. RS485 test RS485 test mode, it can be connected to RS485 Device, such as connecting TRP-C28, send "$01M" instruction from the client side, when the TRP-C28 received command that will response "!01TRPC28" indicates execution completed. Step1. Run TRPCOM.exe utility. Step2.
- Page 11 Step3.Send command “$01M” and press “Send” button. Step4. TRP-C28 response received.
- Page 12 6. TRP-C08 Application.
