Hardware Description - Trycom Technology TRP-C51 User Manual


Wireless transmission distance: Open filed: 100M.

Antenna cable length:1530mm.

RS422/485 distance: up to 4000ft. (1200M)

LED indicator: Power, Link, TX, and RX.

Power input type: Screw terminal or DC plug.(5.5*2.1*12mm/500mA)

Power consumption: 1.2 watt.

Operating temperature: -10 to 50℃.

Storage temperature: -20 to 65℃.

Humidity: 10-90% Non-condensing.

Dimension: 151mm X 75mm X 26mm.

Weight: 400g.

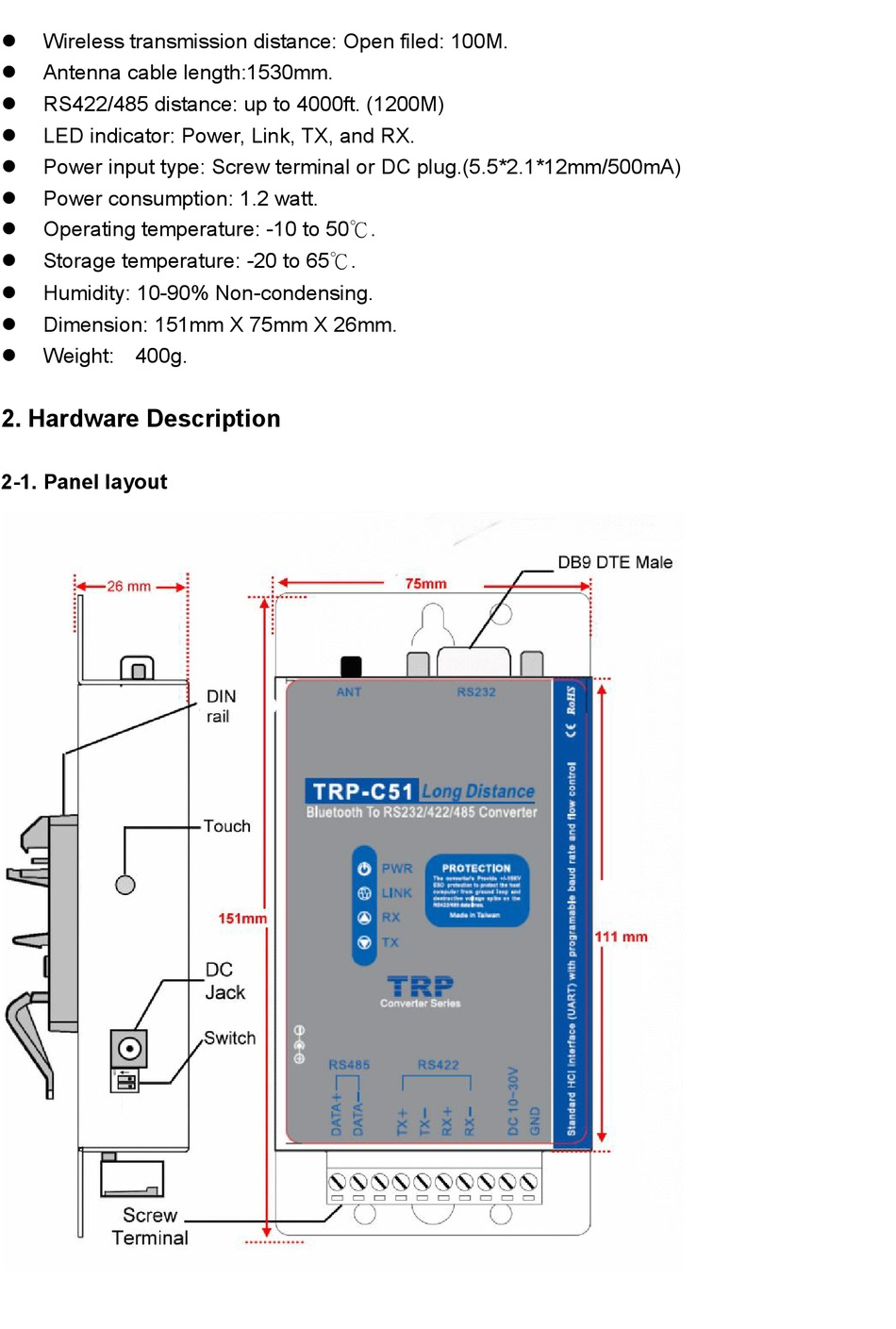

2. Hardware Description

2-1. Panel layout
