Copyright
Copyright Notice: The information in this manual is subject to change without prior notice in order to improve reliability,
design and function and dosed not represent a commitment on the part of the manufacturer. No part of this manual may
be reproduced, copied, or transmitted in any form without the prior written permission of manufacturer.
Acknowledgment Products mentioned in this manual are mentioned for identification purpose only. Products manes
appearing in this manual may or may not be registered trademarks or copyright of their respective companies.
cele mai sensibile
Electric Film S.R.L. — Aleea Scarisoara 3, Apt.42 ▪ Cluj Napoca, Cluj ▪ 400445 ▪ www.electricfilm.eu
VÂNZĂRI ▪ 0364 710319 ▪ electricfilm.eu@gmail.com ▪ SUPORT TEHNIC ▪ 0788 250583

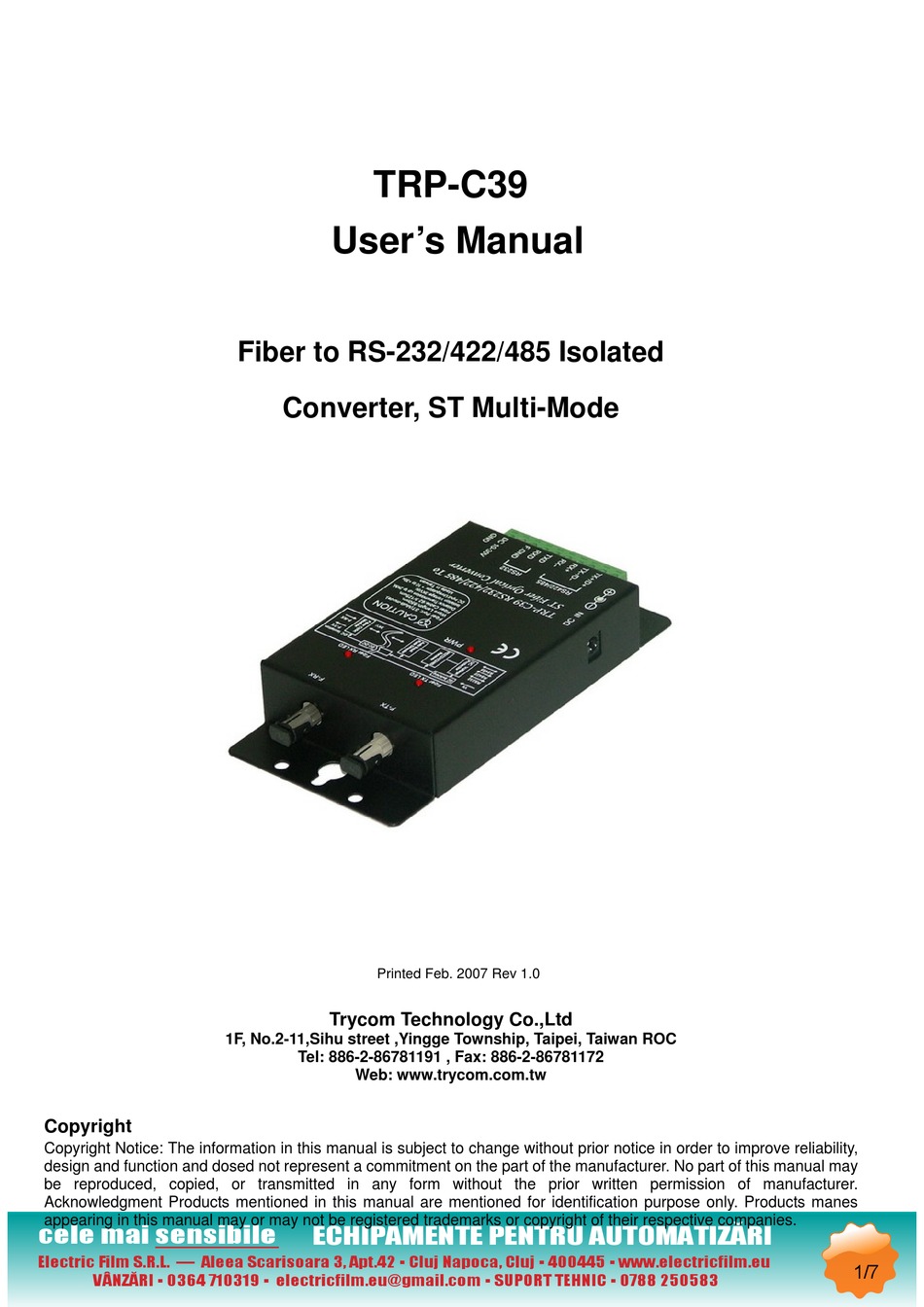

TRP-C39
User's Manual

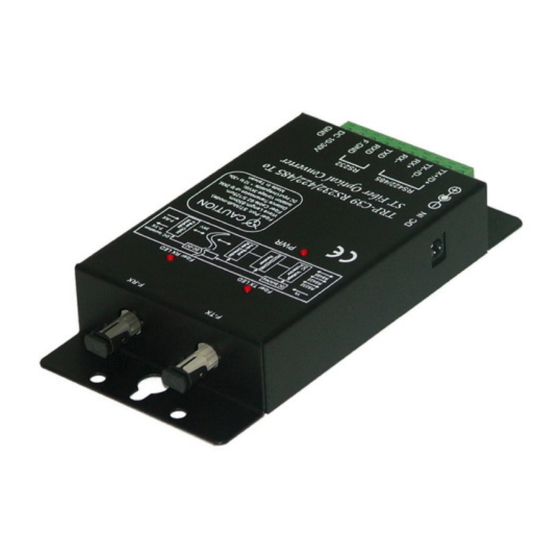

Fiber to RS-232/422/485 Isolated
Converter, ST Multi-Mode
Printed Feb. 2007 Rev 1.0
Trycom Technology Co.,Ltd
1F, No.2-11,Sihu street ,Yingge Township, Taipei, Taiwan ROC
Tel: 886-2-86781191 , Fax: 886-2-86781172
Web: www.trycom.com.tw
ECHIPAMENTE PENTRU AUTOMATIZĂRI
1/7
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Trycom Technology TRP-C39
Summary of Contents for Trycom Technology TRP-C39
- Page 1 TRP-C39 User’s Manual Fiber to RS-232/422/485 Isolated Converter, ST Multi-Mode Printed Feb. 2007 Rev 1.0 Trycom Technology Co.,Ltd 1F, No.2-11,Sihu street ,Yingge Township, Taipei, Taiwan ROC Tel: 886-2-86781191 , Fax: 886-2-86781172 Web: www.trycom.com.tw Copyright Copyright Notice: The information in this manual is subject to change without prior notice in order to improve reliability, design and function and dosed not represent a commitment on the part of the manufacturer.
- Page 2 TRP-C39 support data format, baud rate and data direction auto configuration, it also provides with 3000V DC isolation and internal surge protection. The industry DIN rail and panel mounting design enable user a fast and professional installation.
- Page 3 2. Hardware description 2-1.TRP-C39 panel layout 2-2. Block Diagram 2-3. LED Indictor PWR LED: System is ready. TX LED: Data transmitting. cele mai sensibile ECHIPAMENTE PENTRU AUTOMATIZĂRI RX LED: Data receiving. Electric Film S.R.L. — Aleea Scarisoara 3, Apt.42 ▪ Cluj Napoca, Cluj ▪ 400445 ▪ www.electricfilm.eu...
- Page 4 3. Install TRP-C39 Power connection The TRP-C39 is equipped with a 2-pin terminal block and power jack. Power can be supplied from terminal block or external power adapter and supports wide input range from + 10~30V. When power is correctly supplied the PWR LED will lighting and indicates the system is up. It is highly recommended use the power jack specification 5.5*2.1*12mm if the power supply is from external...
- Page 5 4. How to test TRP-C39 Trycom Technology Co.,Ltd offers demo and test utility, these utilities may help user to demo and test TRP-C39 fast and easily. User may download the utilities from Trycom web site www.trycom.com.tw. The testing utility includes.
- Page 6 .Click the “OK” the utility will show the input and output status. STEP3: 4-2. RS-485 test Refer to 3-2-3 for RS-485 wire connection. User may also directly link TRP-C39 to Trycom Remote IO modules, the wiring connection is as below. Step1. Install TRPCOM utility.
- Page 7 Step3.Send command “$01M” and press “Send”. Step4. Data response received. Test complete. cele mai sensibile ECHIPAMENTE PENTRU AUTOMATIZĂRI Electric Film S.R.L. — Aleea Scarisoara 3, Apt.42 ▪ Cluj Napoca, Cluj ▪ 400445 ▪ www.electricfilm.eu VÂNZĂRI ▪ 0364 710319 ▪ electricfilm.eu@gmail.com ▪ SUPORT TEHNIC ▪ 0788 250583...
