Dogtra 1700NCP Series Owner's Manual

Remote controlled dog training collar
Hide thumbs Also See for 1700NCP Series:
Table of Contents

Advertisement

Quick Links

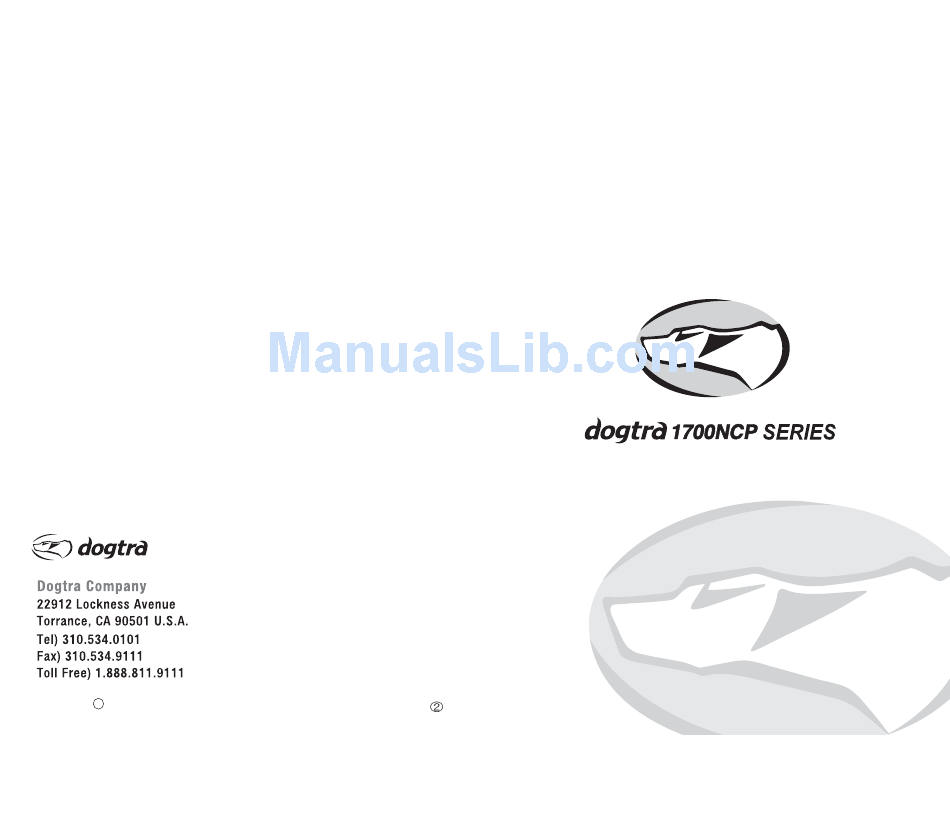

REMOTE CONTROLLED
DOG TRAINING COLLARS
OWNER'S MANUAL
Copyright c 2006 Dogtra Company
2006-
www.dogtra.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1700NCP Series and is the answer not in the manual?

Questions and answers

Related Manuals for Dogtra 1700NCP Series

Summary of Contents for Dogtra 1700NCP Series

  • Page 1 REMOTE CONTROLLED DOG TRAINING COLLARS OWNER’S MANUAL Copyright c 2006 Dogtra Company 2006- www.dogtra.com...

  • Page 2: Table Of Contents

    CONTENTS MAIN FEATURES PRODUCT SAFETY AND HEALTH STATEMENTS COLLAR PACKAGE CONTENTS DESCRIPTION OF TRANSMITTER PARTS DESCRIPTION OF COLLAR / RECEIVER PARTS BATTERY CHARGER CHARGING THE BATTERIES TESTING YOUR COLLAR OPERATING INSTRUCTIONS BELT CLIP ACCESSORY ACCESSORIES WARRANTY AND REPAIR INFORMATION...

  • Page 3: Main Features

    MAIN FEATURES MAIN FEATURES Over 3000 different identity codes to prevent MAIN FEATURES conflicts with other e-collars. Easy-to-use, ergonomic transmitter. Easily visible blue LCD screen displays exact level of stimulation and can be seen in Rheostat dial that allows for gradual the dark.

  • Page 4: Product Safety And Health Statements

    Dogs should be in good health during any e-collar does not recommend using the e-collar to training. Dogtra e-collars are not intended for use on correct dogs that are aggressive towards other dogs dogs weighing less than 12 pounds or under 6 months or people.

  • Page 5: Collar Package Contents

    PACKAGE CONTENTS TRANSMITTER DESCRIPTION OF COLLAR TRANSMITTER PARTS PACKAGE CONTENTS Transmitter (ONE-DOG) Receiver (two collar receivers for two-dog models) Antenna Battery charger and splitter cable Intensity Selection Dial Test light Owner’s manual Tri-color LED Indicator Light Carrying case Power ON/OFF “Pager”...
  • Page 6 TRANSMITTER TRANSMITTER DESCRIPTION OF TRANSMITTER PARTS (TWO-DOG) 2 Antenna Antenna Selector or Intensity Toggle Switch Selection Dial (Nick, Cont.) Transmitter Antenna Tri-color LED A short 2 antenna is supplied with the Indicator Light transmitter. -dog(Pager) (Gray Button) Power ON/OFF The antenna should be screwed into the top -dog(Pager) (Orange Button) of the transmitter to ensure that the signals are...
  • Page 7 TRANSMITTER TRANSMITTER Transmitter Indicator Light (LED window) The transmitter indicator light is located near the intensity selection dial. It will flash every 2 Intensity Selection Dial seconds when the transmitter has been turned on. The color of the light indicates the status of The intensity selection dial is located on the battery life.
  • Page 8 TRANSMITTER TRANSMITTER LCD (Liquid Crystal Display) Transmitter Screen The LCD panel indicates the stimulation level (0 - 127) on the screen. (P) appears when the Transmitter Battery Charging Receptacle Pager is pressed. The battery life indicator shows 3 bars at full charge, 2 bars at medium charge Located on the backside of the transmitter, and 1 bar when it needs to be charge.

  • Page 9: Button Function

    BUTTON FUNCTION BUTTON FUNCTION “Nick” Button BUTTON FUNCTION When the “Nick” button is pushed the ONE-DOG MODEL receiver emits a single, rapid pulse of electrical stimulation. “Constant” Button Pressing the “Constant” button gives continuous stimulation as long as the button is Nick pushed, for up to twelve seconds.
  • Page 10 BUTTON FUNCTION BUTTON FUNCTION Transmitter Power ON/OFF Battery Life Icon The button on the right side of the transmitter When the battery is fully charged, the LCD is the ON/OFF button that activates the transmitter battery icon will show 3 bars and the color of the and display screen.
  • Page 11 BUTTON FUNCTION BUTTON FUNCTION Constant simply move the toggle switch to the TWO-DOG MODELS appropriate mode. Selector or On the left side, the top gray pager button Toggle Switch corresponds to the receiver with the black collar (Nick, Cont.) and the bottom orange pager button corresponds to the receiver with the orange collar strap.

  • Page 12: Description Of Collar / Receiver Parts

    COLLAR / RECEIVER COLLAR / RECEIVER DESCRIPTION OF ON/OFF Button COLLAR / RECEIVER PARTS collar Collar strap Turning on the Collar Receiver Contact Points The ON/OFF button is on the bottom of the Battery receivers. Push and hold the button for two Charging seconds until the LED light, located on the front Receptacle...
  • Page 13 COLLAR / RECEIVER COLLAR / RECEIVER green = full charge, amber = medium charge red = needs charge When the “Constant” button on the transmitter is pushed, the collar indicator light will glow steadily as long as you hold the button down, for up to twelve seconds.

  • Page 14: Battery Charger

    BATTERY CHARGER COLLAR / RECEIVER BATTERY CHARGER Receiver Charging Receptacle Charging Cable 120 volt Charger Wall Outlet Two-dog unit only Receiver Battery Charging Receptacle The battery charger and charging cables allow On the inside of the collar receiver, next to you to charge both the transmitter and receiver at the collar strap, is a battery charging receptacle the same time.

  • Page 15: Charging The Batteries

    CHARGING THE BATTERIES CHARGING THE BATTERIES CHARGING THE BATTERIES 2. Do not charge the batteries near any flammable substances. 3. Fully charge the batteries for 14 hours if the collar is to be stored without use for a period of a month or more. 4.

  • Page 16: Testing Your Collar

    CHARGING THE BATTERIES TESTING Battery Charging Procedure TESTING YOUR COLLAR 1. Attach the charging cables to both the transmitter and receiver(s), as shown on page 26. 2. Plug the charger into a 120-volt wall outlet or, if using the accessory field charger, plug into a cigarette lighter.

  • Page 17: Operating Instructions

    OPERATING TESTING once every two seconds. (If the color of the OPERATING INSTRUCTIONS LED is red, the battery should be charged. Also, if the LCD battery icon shows 1 bar or nothing, your unit should be charged.) Fitting the Collar 3.
  • Page 18 OPERATING OPERATING Maintenance Intensity Selection The receiver and collar strap should be To select the intensity level, start on the zero cleaned periodically with detergent and water to (0) setting. Gradually increase the level until you prevent malfunction. get a response from the dog that would be equivalent to a quick pull or jerk with a leash.

  • Page 19: Belt Clip Accessory

    RECEPTION BELT CLIP ACCESSORY Reception BELT CLIP ACCESSORY collar has a half-mile range. Depending on the way you use your transmitter, the transmitting range may vary. Hold the transmitter away from your body and avoid touching the antenna to get the greatest range.

  • Page 20: Accessories

    BELT CLIP ACCESSORY ACCESSORIES BELT CLIP ACCESSORY ACCESSORIES The following items may be purchased 1) Remove the clip bracket from the rear case. separately : Fig.1. 2) Insert the belt clip post into the clip bracket (upward as shown) and then re-tighten the European Charger bolts.

  • Page 21: Warranty And Repair Information

    The Limited Lifetime Warranty will expire Dogtra unit and mail it in along with a copy of (5) years from the date a unit is discontinued in your receipt within 30 days of purchase. Or, you production by Dogtra Company.
  • Page 22 Dogtra Co. within the continental Send repair units to : United States. Any expedited shipping service will be at the owner’s expense. Dogtra is not Dogtra Company / Repairs responsible for loss of training time or 22912 Lockness Avenue...
  • Page 23 M E M O M E M O...
  • Page 24 M E M O...
