Owner's Manual
Remote Controlled Dog Training Collars
Series
www.dogtra.com
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1900S Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dogtra 1900S Series

Summary of Contents for Dogtra 1900S Series

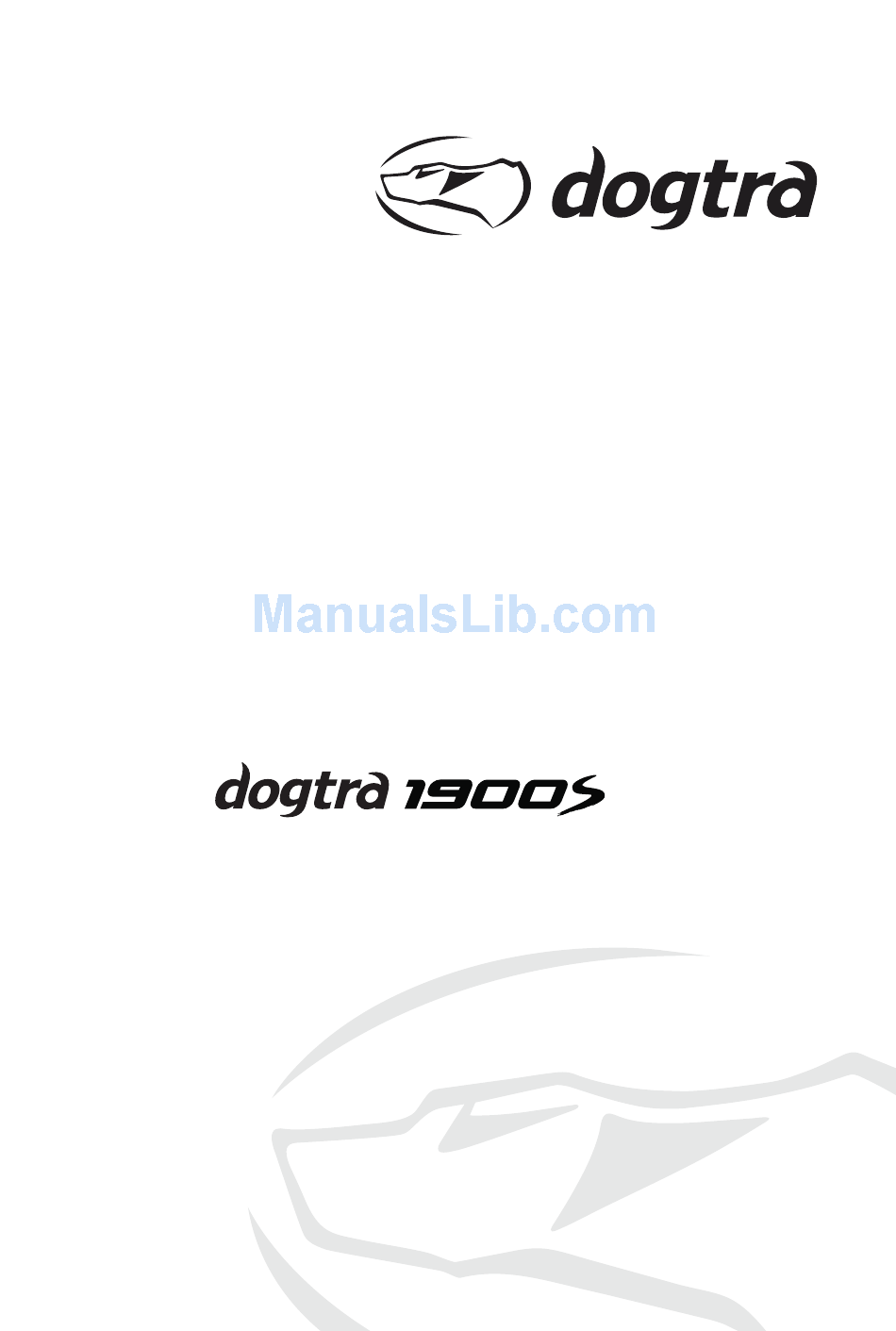

  • Page 1 Owner’s Manual Remote Controlled Dog Training Collars Series www.dogtra.com...
  • Page 2 By Dogtra Remote Controlled Dog Training Collars Owner's Manual Please read this manual thoroughly before operating the Dogtra 1900S training collar.
  • Page 3 They are T intended for human use or use on other animals. Dogtra Company does not assume any liability for the improper use of a Dogtra e-collar. Aggressive dogs Dogtra highly recommends consulting a dog training professional when using an e-collar to correct dogs that are aggressive towards other dogs or people.
  • Page 4 Training Methods E-collars can be used with many different methods. If you have any concerns in the training methods provided by Dogtra, consult with a dog training professional.

  • Page 5: Table Of Contents

    Table of Contents At a Glance ............Main Features of the 1900S ........verview ............Understanding your training system 1. ow to turn the 1900S on off ......2. How the transmitter buttons work ....... 3. Collar tting ..........4. How to nd the right stimulation ......

  • Page 6: At A Glance

    Test light Gear bag Manual Optional accessories Field auto charger Dogtra’s eld auto chargers are designed for use with a 10-volt car outlet. European charger Dogtra’s European chargers are designed for use with a 230V AC electrical outlet. To purchase accessories, please visit www.dogtra.com or...

  • Page 7: Main Features Of The 1900S

    Main Features of the 1900S Slim design receiver collar ergonomically shaped to your dog s neck Checkered grips on the handheld transmitter on-Stimulating High Performance Pager Enhanced Contact Points Rheostat volume style with stimulation levels 0 127 3 4 - mile range ick’...

  • Page 8: Verview

    Overview Antenna Rheostat intensity dial Indicator light (LED window) Pager button button n off switch Constant button Belt clip screen Battery charging receptacle & rubber plug Transmitter...
  • Page 9 Overview Antenna Rheostat intensity dial Indicator light (LED window) Constant 1 st -dog toggle 1 st -dog ick & switch Constant Pager (gray (gray n off button) button) switch 2 nd -dog 2 nd -dog ick & Pager Constant (orange (orange button) button)
  • Page 10 Collar strap Contact points Battery charging Indicator light receptacle & (LED window) rubber plug n off switch Receiver/Collar...

  • Page 11: Understanding Your Training System

    Understanding your training system 1. How to turn the 1900S on/off To turn the handheld transmitter on, hold down the button on the right side of the transmitter until the LCD screen illuminates. To turn the transmitter off, hold down the same button on the right side of the transmitter until the LCD screen shuts off.

  • Page 12: How The Transmitter Buttons Work

    2. How the transmitter buttons work 1900S The transmitter for the 1900S single dog unit has four buttons (one on the face of the transmitter, two on the left side and one on the right side). button n off switch Pager button Constant...
  • Page 13 Transmitter Power ON/OFF The button on the right side of the transmitter is the FF button that activates the transmitter and LCD screen only. To turn the transmitter on, press the FF button on the right side of the transmitter until the LCD screen illuminates.
  • Page 14 When either the orange or gray stimulation button is pressed and the toggle is set on ick the receiver emits a single pulse of electrical stimulation. When you press either the orange or gray stimulation button, and the toggle is set on Constant , the receiver emits a continuous stimulation as long as the button is pushed, for up to 12 seconds to the corresponding collar.

  • Page 15: Collar Fitting

    3. Collar fitting The receiver collar should be tted so that the surgical stainless steel contact points press rmly against the dog’s skin. When properly tted, you should be able to t a nger or two snugly in between the contact points and your dog’s skin.

  • Page 16: How To Nd The Right Stimulation

    5. To maximize the distance The Dogtra 1900S has a 3 4-mile range. The range may vary depending on the way the transmitter is held. Hold the transmitter away from your body to receive the greatest range.

  • Page 17: The Led Indicator

    6. The LED indicator The LED indicator ashes every 4 seconds when the receiver is on and ready for use. The LED indicator will blink on both the transmitter and the receiver when the transmitter buttons are pressed. The LED indicator color indicates the battery life level. Green = Fully charged, Amber = Medium, Red = eeds charging If the unit is used while the LED indicator is red, it will shut...

  • Page 18: Charging The Battery

    Battery Charging Procedure NOTE : The unit has a partial charge when it leaves the Dogtra facility, upon receipt of the collar, be sure to give it a full 2-hour initial charge before the rst use. 1. Attach the charging cables to both the transmitter and...

  • Page 19: The Handheld Transmitter Lcd

    NOTE : nly use Dogtra-approved batteries, chargers, and accessories for your Dogtra e-collars. When a charger is not in use, disconnect it from the power source. 8. The handheld transmitter LCD...
  • Page 20 Turn the LCD backlight on and off with a short press of the on off button. The LCD screen indicates the stimulation level (0-127). The LCD battery life indicator shows 3 bars at full charge, 2 bars at medium charge and 1 bar when it needs to be charged.

  • Page 21: How To Attach The Belt Clip On The 1900S

    9. How to attach the belt clip on the 1900S To attach the included belt clip to the transmitter, follow the instructions below. 1. Align the belt clip to the grooves on the back of the transmitter. 2. With a rm grip, screw on the belt clip using the provided Philips head screws.

  • Page 22: How To Use The Test Light

    10. How to use the test light 1. Turn on the receiver collar and place the test light over the contact points as shown in the diagram. 2. The test light will illuminate momentarily when the ick stimulation button is pressed on the transmitter. The light will stay lit as long as the Constant button is pressed on the transmitter, up to 12 seconds.

  • Page 23: General Training Tips

    General Training Tips Getting started with your 1900S Your dog must know some very basic obedience commands before beginning training with the 1900S. A dog learns by rst being shown a command, followed by lots of repetition over an extended period. As the dog becomes pro cient at these commands, the trainer can introduce distractions and different locations to strengthen them.
  • Page 24 By using only enough stimulation to get your point across, you will have a more controllable environment and a dog that is under less stress. Animals (and humans) perform better in a less stressful environment. For more training information, please visit our website at www.dogtra.com.

  • Page 25: Maintenance

    Troubleshooting If the unit is malfunctioning, please refer to the Troubleshooting Guide before sending it to Dogtra for service. If you have any questions or concerns, you may email them to info@dogtra.com, or call customer service at 1-888-811-9111.

  • Page 26: Troubleshooting Guide

    - The contact points may be too short for your dog’s thick or long coat. To place an order for longer contact points, please contact Dogtra or a Dogtra dealer. If you are already using longer contact points, you may need to trim the hair on the dog’s neck, so that both contact points are...
  • Page 27 If your dog was in salt-water, be sure to rinse the receiver and charging port with clean water. - For Dogtra units over two years old from the purchase date, the batteries may need to be replaced. You can replace them yourself by contacting Dogtra for a replacement battery.

  • Page 28: Warranty And Repair Information

    Dogtra will estimate the age of the unit by the serial number. Serial number estimates can differ from the actual purchase date. A serial number estimate is the only method of determining an approximate date of purchase without product registration or a proof of purchase.
  • Page 29 If the repair costs are not covered under warranty, we will call you for payment information and authorization.
  • Page 30 Dogtra Company 22912 Lockness Avenue Torrance, CA 90501 U.S.A. Tel 310.534.0101 Fax 310.534.9111 Toll Free 1 .888.811.9111 Store Website s hop.dogtra.com Copyright © 2015 Dogtra Company All rights reserved. (1)
