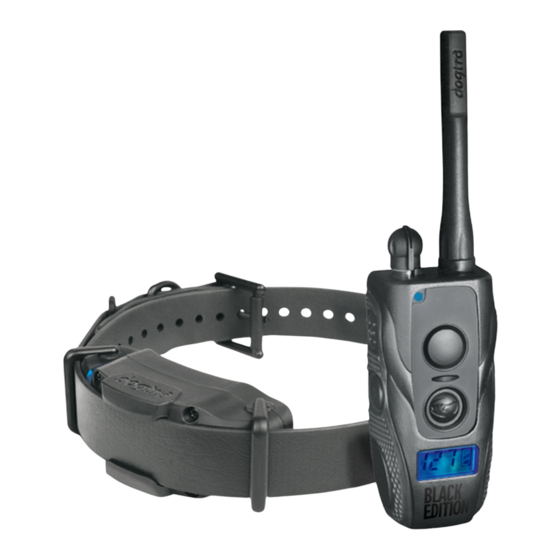

- Page 1 1900S AVAILABLE IN 2-DOG SYSTEM: 1902S Owner's Manual Please read this manual thoroughly before operating the 1900S training e-collar.
- Page 2 Dogtra product or other property. PRODUCT SAFETY Training Methods Dogtra products may be used with a variety of training methods. However, each dog may have a different reaction to training methods and to Dogtra products. Closely observe your dog when determining the right training method to use with your Dogtra product.
- Page 3 Consult your physician or medical device maker before using your medical device with a Dogtra product. If you think that your Dogtra product is interfering with your pacemaker, defibrillator, or other medical device, stop using the Dogtra product.
-
Page 4: Table Of Contents
CONTENTS AT A GLANCE ..............MAIN FEATURES ............OVERVIEW ..............UNDERSTANDING YOUR TRAINING SYSTEM TURNING THE 1900S ON/OFF ......TRANSMITTER BUTTON FUNCTION ....RECEIVER FITTING ..........FINDING THE RIGHT STIMULATION ....MAXIMIZING THE DISTANCE ......LED INDICATOR ............CHARGING THE BATTERY ........ -
Page 5: At A Glance
Clip Light Optional Accessories Auto Charger The auto charger for the 1900S has an input of 12-volts to 24-volts and has an output of 10-volts 1500mAh. European Charger Dogtra’s European chargers are designed for use with a 220 volt AC electrical outlet. -
Page 6: Main Features
MAIN FEATURES • Easy to use, ergonomically fitted transmitter • Rheostat Dial that allows for gradual adjustments in stimulation intensity with no jumps between levels (0-127) • 3/4-mile range • High output • 2 different stimulation types - Nick & Constant •... -
Page 7: Overview
OVERVIEW Antenna Rheostat Dial Indicator Light On/Off Nick Pager Button Constant Belt Clip Screen Battery Charging Receptacle & Rubber Plug 1900S Transmitter... - Page 8 Antenna Rheostat Dial Indicator Nick Light /Constant 1st Dog Toggle Nick & Switch 1st Dog Constant Pager (Gray On/Off (Gray Button) Button Button) 2nd Dog 2nd Dog Nick & Pager Constant (Orange (Orange Button) Button) Belt Clip Screen Battery Charging Receptacle &...
- Page 9 Collar Strap Contact Points Battery Charging Receptacle & LED Indicator Light Rubber Plug On/Off Button 1900S, 1902S Receiver...
-
Page 10: Understanding Your Training System
UNDERSTANDING YOUR TRAINING SYSTEM 1. Turning the 1900S On/Off To turn the handheld transmitter on, hold down the button on the right side of the transmitter until the LCD screen illuminates. To turn the transmitter off, hold down the same button on the right side of the transmitter until the LCD screen shuts off. -
Page 11: Transmitter Button Function
2. Transmitter Button Function 1900S The 1900S has four buttons on the handheld transmitter (one on the face of the transmitter, two on the left side, and one on the right side). On/Off Button Nick Pager Constant Nick Button The Nick button is located on the top of the left side of the handheld transmitter. - Page 12 Pager Button The Pager button is located on the face of the transmitter. Pressing it will give a vibration for as long as the button is pressed, for up to 12 seconds. On/Off Button The on/off button is located on the right side of the transmitter.
- Page 13 Nick & Constant Toggle Switch Located on the face of the transmitter is a toggle switch. The toggle switch has a setting for Nick and another for Constant. The color-coordinated buttons (orange for the orange receiver and gray for the black receiver) will implement the desired stimulation based on the toggle switch setting.
-
Page 14: Receiver Fitting
If the receiver is too loose, the contact will not be consistent and cause the corrections to be inconsistent. Dogtra uses medical grade stainless steel contact points and anti-microbial plastic to protect the dog’s skin. -
Page 15: Finding The Right Stimulation
4. Finding the Right Stimulation The 1900S has a Rheostat Dial on the top of the transmitter (0 is the lowest and 127 is the highest). Remember that you will need to adjust the setting (upward or downward) depending on your dog’s temperament and... -
Page 16: Maximizing The Distance
5. Maximizing the Distance The 1900S has a 3/4-mile range. Depending on the way you use your transmitter, the transmitter range may vary. To get the greatest range, hold the transmitter away from your body and avoid touching the antenna. Keep your unit properly charged for maximum signal strength. -
Page 17: Led Indicator
6. LED Indicator The LED indicator flashes every 4 seconds when the receiver is on and ready for use. The LED indicator will blink on both the transmitter and the receiver when the transmitter buttons are pressed. The LED indicator color indicates the battery life level. Green = Full charge Amber = Medium charge Red = Needs charge... -
Page 18: Charging The Battery
NOTE 2: The unit has a partial charge when it leaves the Dogtra facility. Upon receipt of the system, be sure to give it a full 2-hour initial charge before the first use away from any flammable substances. - Page 19 Follow the steps below to charge your system: 1. Open the rubber plugs on the battery charging receptacles and plug in the charging cable. 2. Plug the charger into a 120-volt wall outlet or, if using the auto charger, plug into a cigarette lighter only for lithium polymer batteries (use a 220 volt European charger for Europe).
-
Page 20: Handheld Transmitter Lcd
8. Handheld Transmitter LCD The LCD screen indicates the stimulation level on the screen ranging from (0-127). The battery life indicator shows: 3 bars = Full charge 2 bars = Medium charge 1 bar = Needs charge The battery life indicator only shows the remaining charge of your transmitter. -
Page 21: Attaching The Belt Clip
either wait until your transmitter is back in working order before emitting a correction or while holding the Constant button down, slowly turn the Rheostat Dial while watching your dog’s reaction. Do not turn the Rheostat Dial rapidly, because the receiver will emit a static correction based on the level of the Rheostat Dial, which might not be correctly reflected on the LCD screen. -
Page 22: Using The Test Light
10. Using the Test Light 1. Turn on the receiver by pressing the on/off button. The indicator light will come on for a moment then blink once every 4 seconds, showing that the receiver is ready to use (the receiver needs to be charged if the indicator light is red). - Page 23 6. Turn the Rheostat Dial on the transmitter clockwise and then counterclockwise. The test light should glow brighter with higher levels of stimulation and dimmer with lower levels. Note: The test light may not be visible if the intensity level is set below level ten.
-
Page 24: General Training Tips
GENERAL TRAINING TIPS Your dog must know some basic obedience commands before beginning training with the 1900S. A dog learns by first being shown a command, followed by lots of repetition over an extended period. As the dog becomes proficient at these commands, the trainer can introduce distractions and different locations to strengthen them. - Page 25 Animals (and humans) perform better in a less stressful environment. For more training information, please visit our website at www.dogtra.com.
-
Page 26: Maintenance
Storage maintenance The 1900S should be fully charged before storing for extended periods. While in storage, the unit should be given a full charge once a month and before the first use. -
Page 27: Troubleshooting Guide
TROUBLESHOOTING GUIDE 1. My dog is not reacting to the system. - Make sure the receiver and transmitter are turned on. - Make sure the collar strap is tight enough so both contact points are touching the dog’s skin. - The contact points may be too short for the dog. To place an order for longer contact points that are more appropriate for your dog, please call (888) 811- 9111. - Page 28 If the dog is in salt-water, be sure to rinse the receiver and charging port with clean water. – If the above does not resolve your issues, contact Dogtra customer service at info@dogtra.com or (888) 811-9111.
-
Page 29: Warranty And Repair Information
No dealer of Dogtra products, nor any employee or agent of Dogtra, is authorized to make any additions, changes, or extensions to the Warranty. Dogtra, at its sole discretion and at any time, reserves the right to modify the Warranty. - Page 30 PURPOSE. Limitation of Remedies Dogtra’s liability is limited to the cost of repair or replacement of the Dogtra product under Warranty. Any claim or action to enforce the Warranty must be commenced within thirty (30) days of the Warranty’s expiration for your product.
- Page 31 You are responsible for shipping, including cost, of your product to Dogtra for warranty service. Dogtra will handle shipping, including cost, of the repaired or replaced product back to customers in the USA. Dogtra will not be responsible for shipping, including cost and/or applicable taxes or fees, for products sent to Canada.
