SECTION 3.

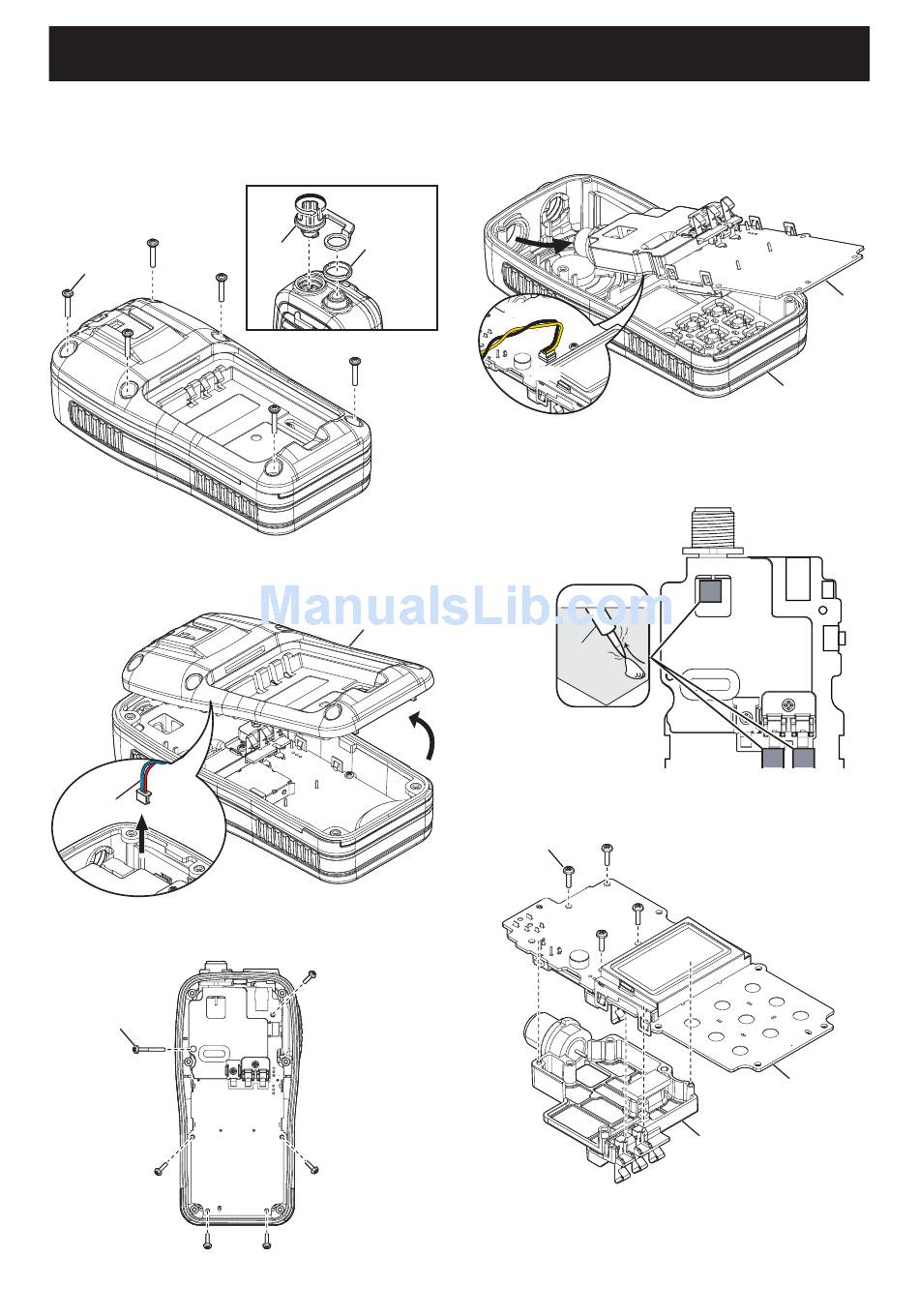

1. REMOVING THE PCB
1) Remove the battery pack from the transceiver.
2) Remove the DC cap and antenna nut.
3) Remove 6 screws from the rear panel.
6 screws
4) CAREFULLY lift the rear panel up and unplug the
wet sensor wire.
Wet sensor
wire
J602 J602
5) Remove 6 screws from the PCB.
6 screws
(Continued on the right above.)

DISASSEMBLY INSTRUCTION

Antenna nut
DC cap
Rear panel
6) CAREFULLY lift the PCB out of the front panel, and
then turn it over in order to unplug the speaker wire.
SP cable
J251
2. REMOVING THE CHASSIS
1) Unsolder 3 points shown.
UNSOLDER
Solder
remover
2) Remove 4 screws from the PCB, and then remove
the CHASSIS.
4 screws
3 - 1
PCB
Front panel
Chassis
PCB
Chassis
