Summary of Contents for M Design ZINO 700

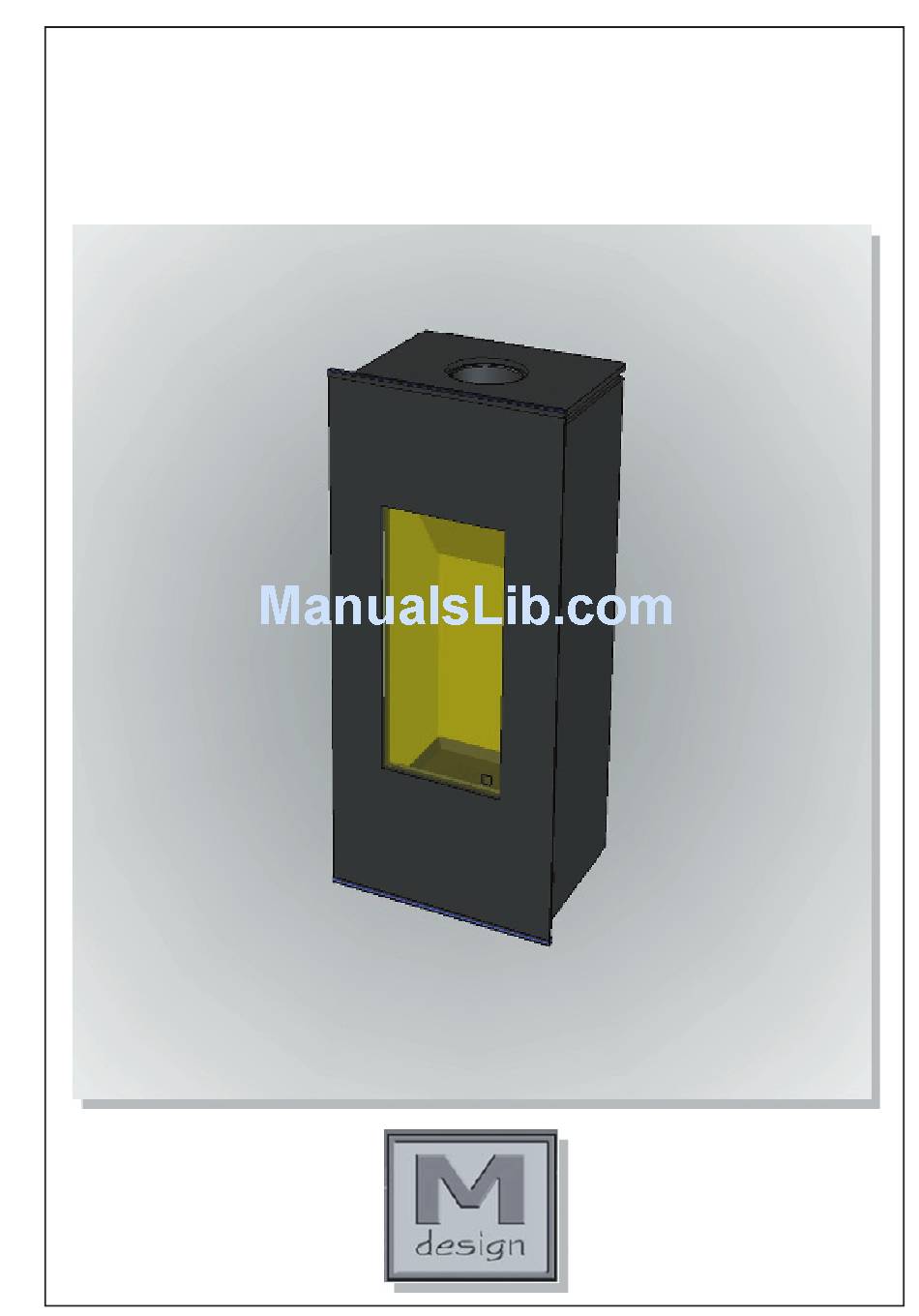

- Page 1 INSTRUCTIONS FOR INSTALLATION AND USE OF ZINO 700,900,1100...
-
Page 2: Table Of Contents
WARNING : THE SUPLIER TAKES NO RESPONSIBILITY FOR ANY POSSIBLE DAMAGE, POOR WORKING APPLIANCES AND ACCIDENT AS A RESULT OF INCORRECT INSTALLATION. 1.GENERAL ................1.1. TRANSPORT AND INSTALLATION ........ 1.2. FUEL ................1.2.1 Recommended fuel: Wood - hard, soft - damp cca 16% Recommended fuel: Wood - hard, soft - damp cca 16% Recommended fuel: Wood - hard, soft - damp cca 16% 1.2.2 Optimal operation... -
Page 3: General
GENERAL TRANSPORT AND INSTALLATION • The ZINO is transported in a horizontal position. •For facilitate transport you can use a set of solid rubber straps/belts. Before the installation of ZINO it is necessary to check that the door mechanism functions properly and that the interior lining of the stove thermal linings are remaining in their correct positions. -
Page 4: Installation
CAUTION: It is not necessary to overload the fireplace with wood. 1kg dried wood gives a 4kW power. Example: a fireplace with 80% return gives a power for about 3,2kW for 1kg dry wood. If you want a power about 6-7kW, it is just enough to put 2kg wood in the fireplace. This is like two normal pieces of wood. -
Page 5: Safe Distance Fireplace Stoves Type „Zino" From Flammable
SAFE DISTANCE FIREPLACE STOVES TYPE „Zino“ FROM FLAMMABLE MATERI- ALS, LOCATION FIREPLACE STOVES AND SMOKE EXTRACTION Appliance type series „ZINO“ must be installed in accordance with Decree MV SR No. 95/2004 statute, coll establishing specifications and requirements for fire safety during installations and operation of heating appliances, electro thermal appliances and central heating installations and the constructions and use of chimneys and flues. -
Page 6: Location The Fireplace Furnace Type Series „Zino"On The Floor
The combustion pipe might be of black respectively stainless steel pipes and elbows. The flue connection must be made by the shortest route to the flue by STN 73 4210. The combustion pipe should be implemented and consolidate in order it cannot be released accidentally or spontane- ously. -
Page 7: Security Conditions
3. SECURITY CONDITIONS In operating the fireplace furnace type series “ZINO” should observe the following pre cautions: •The fireplace furnace type series “ZINO” must only be operated by an adult. •A minimum distance of 80cm clearance to each side and 30cm back of the appliance must be maintained to avoid flammable parts, furniture and materials. -
Page 8: Maintenance
5. MAINTENANCE The customer must regularly clean ashes from an ashtray on a grid /after two full-time heating/ The customer must regularly clean ashes from an ashtray on a grid /after two full-time heating/ and check whether there is excessive fouling the ash chamber/see ( Pic.8 ) One to two times per heating season /by intensity of use and according to characteristics of the fuel/ need to check and clean the flue gas path of ash and shoot. -
Page 9: Method Of Removal And Installation Of The Deflector Plates And Pass
5.1 Method of removal and installation of the deflector plates and pass The dismantling of the deflector plate 1: -Lift plate up / approx 3cm / and remove the stainless steel beam to each slide and push to one side and a diagonal slide it out of the fireplace. -Pull the plate to pull himself / approx 4 cm / etc diagonal sway and slide it out of the fireplace. -
Page 10: Specifications
“The unit can be connected to a common chimney“ “Use only recommended fuels” The appliance is designed for: Short-term operation Serial number ( see Pic.10 ) Pic. 10 TYPE ZINO 700 ZINO 900 ZINO 1100 Rated thermal power ( kW) Average efficienty (%) 81,5... -
Page 11: Spare Parts
6.1 Spare parts... -
Page 12: Drawing
6.2 Drawing... -
Page 13: Guarantee
7.GUARANTEE TERMS AND ITEMS COVERED 7 years` guarantee on the general structure 2 years` guarantee on the parts, no guarantee on glass, seals and lining the combustion chamber (skamol plates) 8. GUARANTEE CONDITIONS The claim must be submitted to the warranty, otherwise the claim is recognized. The guarantee covers all defects in the fireplace furnace type series „ZINO“...
