SY-HDBT-100T / SY-HDBT-100R
Installation Guide
SY-HDBT-100 Extender Set
with
HDMI, IR, RS232 and Ethernet
over 100m of cat6 Cable
HDBT HDMI Extenders
SY Electronics Ltd, Unit 7, Worrall Street, Salford, Greater Manchester, M5 4TH, United Kingdom
Tel: +44 (0) 161 868 3450 – Fax: +44 (0) 161 868 3459 –
www.sy.co.uk
Advertisement
Table of Contents
Related Manuals for SY SY-HDBT-100T
Summary of Contents for SY SY-HDBT-100T
-
Page 1: Installation Guide

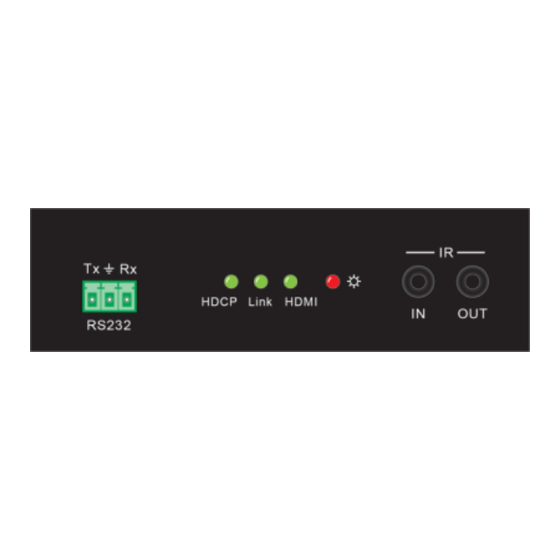

HDMI, IR, RS232 and Ethernet over 100m of cat6 Cable HDBT HDMI Extenders SY Electronics Ltd, Unit 7, Worrall Street, Salford, Greater Manchester, M5 4TH, United Kingdom Tel: +44 (0) 161 868 3450 – Fax: +44 (0) 161 868 3459 – www.sy.co.uk... - Page 2 SY-HDBT-100T / SY-HDBT-100R The HDBT-100T and HDBT-100R HDBT transmitter / receiver pair broadcast HDMI, two-way IR control, bi- directional RS232 data and Ethernet up to 100m with perfect quality. These extenders are suited to a wide range of applications in AV industry, digital signage and at home.
- Page 3 To use the RS232 Extender option, connect the RS232 equipment to the RS232 terminal blocks with the cables provided and ensure that any RS232 handshake modes are set to none. The SY-HDBT-100 Extender set, support all standard RS232 baud rates up to 115.2 K baud without setting any switches or special configuration options.
- Page 4 SY-HDBT-100T / SY-HDBT-100R Figure 1 – Configuration Example for SY-HDBT-100 Set www.sy.co.uk...
-
Page 5: Specifications
SY-HDBT-100T / SY-HDBT-100R Specifications General HDMI Resolutions 480i, 480p, 720i, 720p, 1080i, 1080p, 1920 x 1200, 4K x 2K HDMI Standard HDMI 1.4 – Supports 3D and Ethernet HDMI Link Mode HDBT, synchronous switching Link Transmission Distance Up to 100 metres... -
Page 6: Safety Instructions
SY-HDBT-100T / SY-HDBT-100R RS-45 Wiring Both connectors must be wired identically. HDBT will not pass through any Ethernet device, the HDBT-100T HDBT port must be connected directly to the HDBT-100R HDBT port. The two Ethernet ports act as a distributed four-port hub, with two ports located at the HDBT-100T position and two at the HDBT-100R position. - Page 7 Damage to the product due to incorrect usage or storage Damage caused by unauthorised repairs Damage caused by mistreatment of the product 5. Please direct any questions or problems you may have to your local dealer before contacting SY Electronics. www.sy.co.uk...
