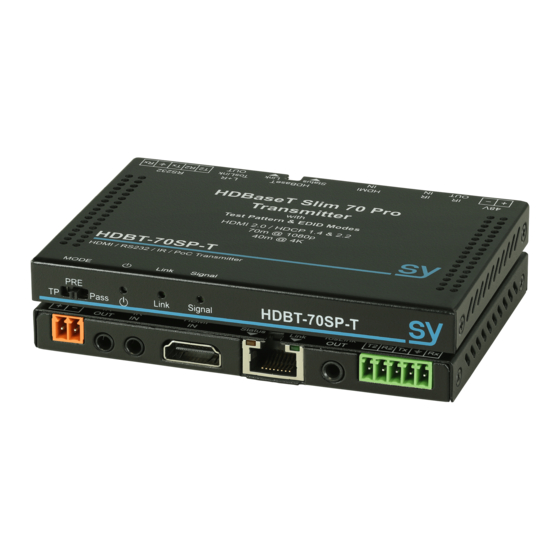

SLIM 70-PRO
User Manual
SY-HDBT-70SP-T
SY-HDBT-70SP-R
4K HDBaseT extender
70m @1080p or 40m @4K
HDBaseT Transmitter
supports:
(SY-HDBT-70SP-T)
HDMI 2.0, Test Pattern, Down-Scaler, EDID & HDCP control,
Audio de-embed, CEC & Temperature control, diagnostics, iPoC
SY Electronics Ltd., 7 Worrall Street, Salford, Greater Manchester, M5 4TH, UK
Tel: +44 (0)161 868 3450 – Web: sy.uk
Advertisement
Table of Contents
Related Manuals for SY SY-HDBT-70SP-T
Summary of Contents for SY SY-HDBT-70SP-T
- Page 1 HDBaseT Transmitter supports: (SY-HDBT-70SP-T) HDMI 2.0, Test Pattern, Down-Scaler, EDID & HDCP control, Audio de-embed, CEC & Temperature control, diagnostics, iPoC SY Electronics Ltd., 7 Worrall Street, Salford, Greater Manchester, M5 4TH, UK Tel: +44 (0)161 868 3450 – Web: sy.uk...
-
Page 2: Table Of Contents
Contents FEATURES CONNECTORS AND CONTROLS Front SY-HDBT-70SP-T SY-HDBT-70SP-R Rear SY-HDBT-70SP-T SY-HDBT-70SP-R USING THE SY-HDBT-70SP-T AND SY-HDBT-70SP-R RJ-45 WIRING TEST PATTERN AND KEEP-ALIVE FEATURES DOWN-SCALING CONNECTING TO THE IR PORTS RS232 CONTROL COMMANDS SY-PCTools HELP Command Output HDCP Command EDID Commands... - Page 3 Place the units away from heat sources and allow adequate ventilation. Shielded cable and in particular cat6, cat6a or cat7 is highly recommended. As much as possible cables should be routed away from any noisy sources and avoiding long runs in close proximity to mains cables. V1.0 sy.uk...
-
Page 4: Features
The second RS232 channel (T2, R2) can also be used for RTS/CTS handshaking. The transmitter unit (SY-HDBT-70SP), also supports de-embedded audio (L/R and Mini-Toslink optical output), as well as many useful features such as: HDCP management, EDID settings, video Down-Scale, Test Patterns, Video Keep Alive, Temperature &... -
Page 5: Rear
57600. These can also be used as RTS/CTS handshaking lines, see Figure 1. L/R Analogue Audio Output Mini Toslink – (SY-HDBT-70SP-T) 3.5mm Stereo Jack. 20Hz – 20kHz, 1.5Vrms max Mini- Toslink – Optical S/PDIF Audio Output... -
Page 6: Using The Sy-Hdbt-70Sp-T And Sy-Hdbt-70Sp-R
Using the SY-HDBT-70SP-T and SY-HDBT-70SP-R Connect a video source to the Transmitter (SY-HDBT-70SP-T) HDMI input connector and the remote display device to the Receiver (SY-HDBT-70SP-R) HDMI output connector. Ensure the catx cable is wired correctly – see RJ-45 Wiring for connection details. -
Page 7: Rj-45 Wiring
RJ-45 Wiring Both connectors must be wired identically. HDBaseT signals will NOT pass through any Ethernet device, the HDBaseT port on the SY-HDBT- 70SP-T must be connected directly to the HDBaseT port on the SY-HDBT-70SP-R. Please do make sure that the Cat6 cable uses 4 pairs of 23AWG solid copper wires. Do not use inferior copper clad cables as these exhibit much higher resistances. -
Page 8: Rs232 Control Commands
– Just pass-through. SY-PCTools SY-PCTools is a PC software package that allows the user to interface/control most of SY products, all within one Tool. Please interface with RS232 (Tx, Rx) port of Slim70-Pro (transmitter or receiver) via a com-port (or USB to RS232 dongle). The control panel provides a very simple and easy interface for managing /monitoring the Slim70-Pro set. -
Page 9: Edid Commands
Any of the following pre-defined EDID settings can be selected as the active EDID when the front EDID switch on the SY-HDBT-70SP-T is set to the PRE position. The selection is done using the RS232 command given in the following table: ... -
Page 10: Video Keep Alive (No Signal Handling)
Video Keep Alive (No Signal Handling) When there is no signal present at the Transmitter (SY-HDBT-70SP-T), two options are available: Output current Test Pattern – Maintain output Video stream (Video Keep-Alive) No timing output (default) – No output video; hence video drop-out... -
Page 11: Diagnostic Commands
As well as these, other diagnostic commands such as, Input HDMI signal details, Pulse HPD, Temperature values, can be invaluable for overall system fault finding and trouble shooting. The SY-PCTools provides an easy and simple way to run these diagnostics efficiently, as well as setting up the special features of Slim70-Pro extender set. -
Page 12: Cec Commands
Decrease sound volume Volume Mute SET TX CEC-MUTE Mute/Unmute sound volume (Toggle) Display Connection Status GET TX READ-DISPLAY Get the Connected/Disconnected info current Display Power Status GET TX DISPLAY-POWER Get the isplay device power on/off info current d sy.uk V1.0... -
Page 13: Specifications
4K60-420: Convert 4K50/60 4:4:4 inputs to 4K50/60 4:2:0 Output Video Down-scaled signals, with all others as Pass-through video Audio Formats Supported 2.0 / 2.1 / 5.1 / 7.1 channel LPCM, Dolby, AC3, DTS Audio Outputs (de-embed) Mini TosLink (optical) (SY-HDBT-70SP-T) 3.5mm analogue stereo (L/R) V1.0 sy.uk... -
Page 14: Power Supply
109 x 74 x 11.5 mm (excluding connectors) Weight (Unit only) Transmitter: 165g Receiver: 165g Package Contents Item SY-HDBT-70SP-T unit SY-HDBT-70SP-R unit Brackets 5 pin female captive screw connector IR Emitter / IR Receiver (eye) set 48V DC/0.5A Power Adapter... - Page 15 This product has a two years standard warranty, beginning from the date of purchase as stated on the sales invoice. For full details please refer to our Terms and Conditions. SY Product warranty is automatically void under any of the following conditions: ...
- Page 16 NOTES: sy.uk V1.0...
