SY-HDBT-70PT / SY-HDBT-70PR
Installation Guide
SY-HDBT-70P Extender Set
with
HDMI, IR, RS232 and Power
over 60m of cat6 Cable
HDBaseT HDMI Extenders
SY Electronics Ltd, Unit 7, Worrall Street, Salford, Greater Manchester, M5 4TH, United Kingdom
Tel: +44 (0) 161 868 3450 – Fax: +44 (0) 161 868 3459 –
www.sy.co.uk
Advertisement
Table of Contents
Related Manuals for SY SY-HDBT-70PT
Summary of Contents for SY SY-HDBT-70PT
-
Page 1: Installation Guide
HDMI, IR, RS232 and Power over 60m of cat6 Cable HDBaseT HDMI Extenders SY Electronics Ltd, Unit 7, Worrall Street, Salford, Greater Manchester, M5 4TH, United Kingdom Tel: +44 (0) 161 868 3450 – Fax: +44 (0) 161 868 3459 – www.sy.co.uk... -
Page 2: Connectors And Controls

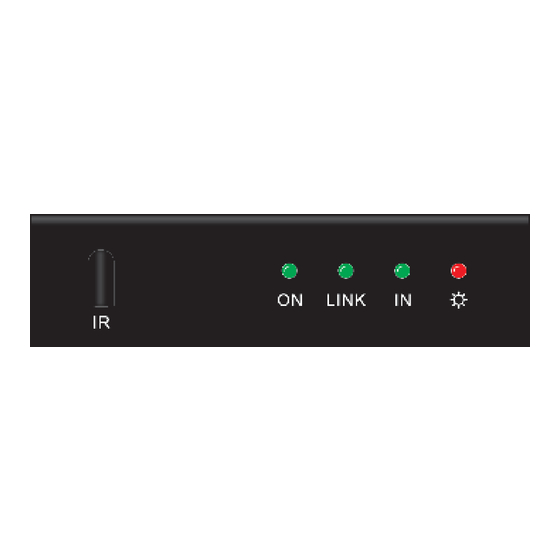

SY-HDBT-70T / SY-HDBT-70R The SY-HDBT-70PT and SY-HDBT-70PR HDBaseT transmitter / receiver pair broadcast HDMI, two-way IR control, bi-directional RS232 data and power up to 60m with perfect quality. These extenders are suited to a wide range of applications in AV industry, digital signage and at home. - Page 3 To use the IR Extender option, either point your IR remote control device at the extender unit or connect the IR detector to the IR IN socket of either the SY-HDBT-70PR or the SY-HDBT-70PT as required and the IR emitter to the corresponding transmitter or receiver IR OUT socket. Locate the IR emitter close to the device you wish to control.
- Page 4 SY-HDBT-70T / SY-HDBT-70R Figure 1 - Configuration Example www.sy.co.uk...
-
Page 5: Specifications
38kHz carrier frequency for any control protocol RS232 Supports Tx and Rx only – Any RS232 baud rates up to 115.2 Kb Power Supply 24V DC Power Consumption SY-HDBT-70P Set: 7.3 W max Environmental Operating Temperature 0 – 40 °C non condensing Physical... -
Page 6: Safety Instructions
RS-45 Wiring Both connectors must be wired identically. HDBaseT will not pass through any Ethernet device, the HDBaseT port on the SY-HDBT-70PT must be connected directly to the HDBaseT port on the SY-HDBT-70PR. Please do make sure that the Cat6 cable uses 4 pairs of 23AWG solid copper wires. Do not use inferior copper clad cables as these exhibit high resistances. -
Page 7: After Sales Service
Damage to the product due to incorrect usage or storage Damage caused by unauthorised repairs Damage caused by mistreatment of the product 5. Please direct any questions or problems you may have to your local dealer before contacting SY Electronics. www.sy.co.uk...
