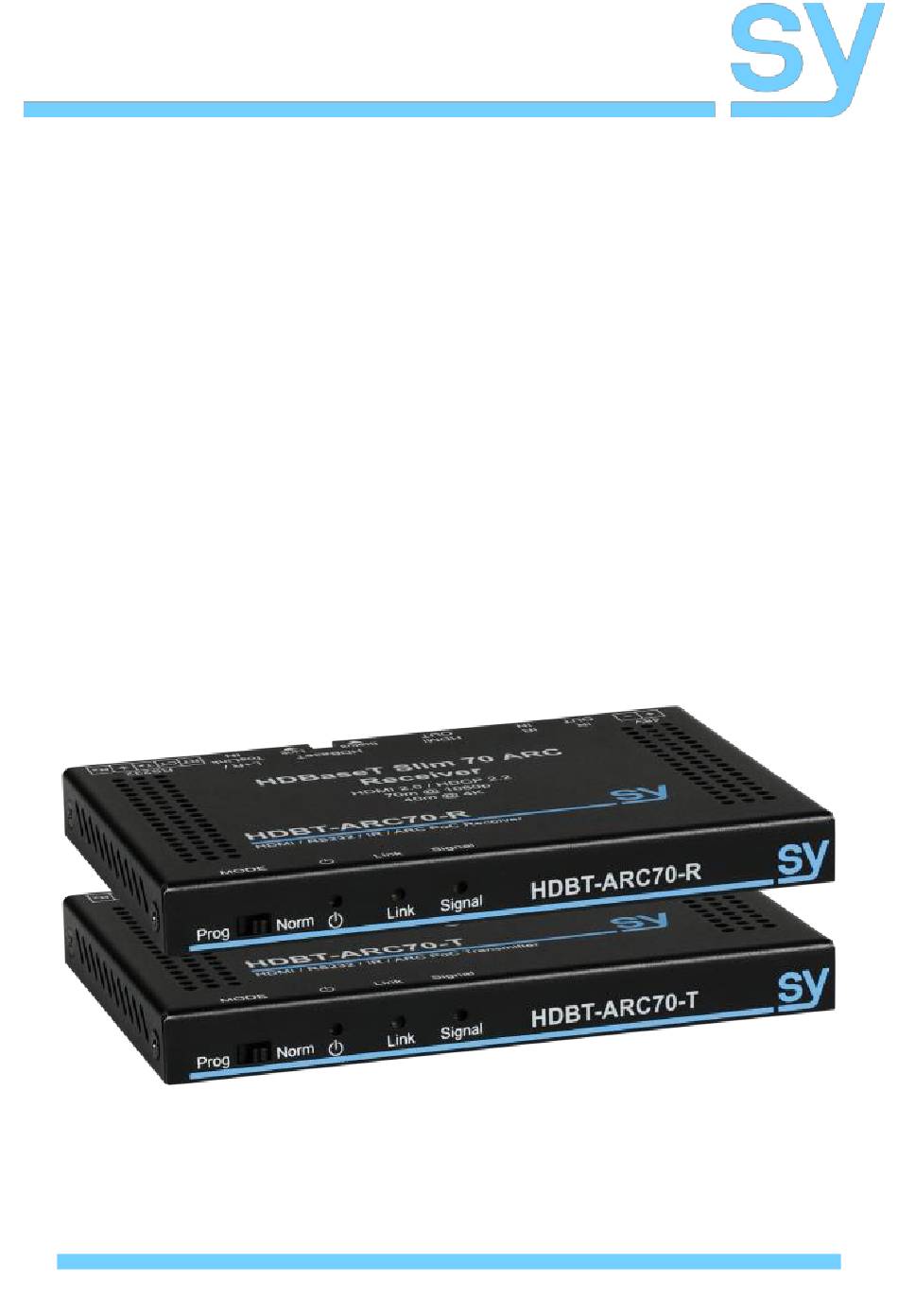

Installation Guide
SY-HDBT-ARC70
Extender Set
with
HDMI, IR, RS232, ARC and Power
over 70m of cat6 Cable
HDBaseT HDMI+ARC Extenders
SY Electronics Ltd, Unit 7, Worrall Street, Salford, Greater Manchester, M5 4TH, United Kingdom
Tel: +44 (0) 161 868 3450 – Fax: +44 (0) 161 868 3459 –
www.sy.co.uk

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HDBT-ARC70-R and is the answer not in the manual?

Questions and answers

Related Manuals for SY HDBT-ARC70-R

Summary of Contents for SY HDBT-ARC70-R

  • Page 1 HDMI, IR, RS232, ARC and Power over 70m of cat6 Cable HDBaseT HDMI+ARC Extenders SY Electronics Ltd, Unit 7, Worrall Street, Salford, Greater Manchester, M5 4TH, United Kingdom Tel: +44 (0) 161 868 3450 – Fax: +44 (0) 161 868 3459 – www.sy.co.uk...

  • Page 2: Connectors And Controls

    The SY-HDBT-SLIM-ARC70-T and SY-HDBT-ARC70-R HDBaseT transmitter & Receiver pair can broadcast 1080p HDMI with two-way IR control, bi-directional RS232 data, audio and power over 70m of cat6 cable with perfect quality. The maximum distance reduces to 40m when using 4k HDMI signals. These extenders are suited to a wide range of applications in the AV industry, digital signage and at home.

  • Page 3: Hdmi Extender

    Connect a HDMI source to the HDMI IN socket on the HDBT-ARC70-T and connect a HDMI display to the HDMI OUT socket on the HDBT-ARC70-R. Connect a Cat6 UTP cable to the HDBT sockets of both the transmitter and receiver units. Connect the 48V power supply to either the Transmitter or the Receiver unit.
  • Page 4 To use the IR Extender option, point your IR remote control device at the IR detector connected to the IR IN socket of either the SY-HDBT-70R or the SY-HDBT-70T as required. An IR emitter must also be connected to the corresponding transmitter or receiver IR OUT socket.

  • Page 5: Mode Switch

    Mode Switch The MODE switch should be set to Norm to permit transmission of RS232 signals between the two extenders. The Prog setting is only used when either the SY-HDBT-ARC70-T or the SY-HDBT-ARC70-R require a field upgrade. Figure 1 - Configuration Example V1.0...

  • Page 6: Specifications

    Supports Tx, Rx, RTS and CTS – any RS232 baud rate up to RS232 115.2 Kb Power Supply 48V DC @ 0.5A Power Consumption SY-HDBT-ARC70 Set: 7.7 W max Environmental Operating Temperature 0 – 40 °C Operating Humidity 5 – 90% RH (non-condensing)
  • Page 7 RJ-45 Wiring Both connectors must be wired identically. HDBaseT signals will not pass through any Ethernet device, the HDBaseT port on the SY- HDBT-70T must be connected directly to the HDBaseT port on the SY-HDBT-70R. Please do make sure that the Cat6 cable uses 4 pairs of 23AWG solid copper wires. Do not use inferior copper clad cables as these exhibit higher resistances.

  • Page 8: Safety Instructions

    After Sales Service Should you experience any problems while using these products, firstly refer to the Troubleshooting section in this manual before contacting SY Technical Support. When calling SY Technical Support, the following information should be provided: ...
