SY-HDBT-SLIM-70 EXTENDERS
Installation Guide
SY-HDBT-SLIM-70 EDGE
Extender Set
with
HDMI, IR, RS232 and Power
over 70m of cat6 Cable
HDBaseT HDMI Extenders
SY Electronics Ltd, Unit 7, Worrall Street, Salford, Greater Manchester, M5 4TH, United Kingdom
Tel: +44 (0) 161 868 3450 – Fax: +44 (0) 161 868 3459 –
www.sy.co.uk
Advertisement
Table of Contents
Related Manuals for SY SY-HDBT-SLIM-70 Series
Summary of Contents for SY SY-HDBT-SLIM-70 Series
- Page 1 HDMI, IR, RS232 and Power over 70m of cat6 Cable HDBaseT HDMI Extenders SY Electronics Ltd, Unit 7, Worrall Street, Salford, Greater Manchester, M5 4TH, United Kingdom Tel: +44 (0) 161 868 3450 – Fax: +44 (0) 161 868 3459 – www.sy.co.uk...

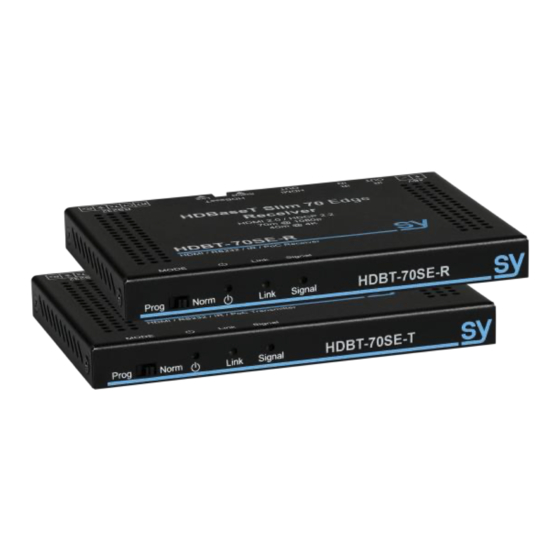

- Page 2 SY-HDBT-SLIM-70 EXTENDERS The SY-HDBT-SLIM-70T and SY-HDBT-SLIM-70R HDBT transmitter / receiver pair broadcasts 1080p HDMI, two-way IR control, bi-directional RS232 data and power over 70m of cat6 cable with perfect quality. This maximum distance reduces to 40m for 4k HDMI signals.
- Page 3 SY-HDBT SLIM-70 EXTENDERS Rear Name Transmitter Receiver POWER 48V DC power supply input Input from IR detector (3.5mm stereo Jack) IR IN Output to IR emitter (3.5mm Jack) IR OUT HDMI input from HDMI HDMI output to HDMI display HDMI...
- Page 4 To use the IR Extender option, point your IR remote control device at the IR detector connected to the IR IN socket of either the SY-HDBT-70R or the SY-HDBT-70T as required. An IR emitter must also be connected to the corresponding transmitter or receiver IR OUT socket.
- Page 5 SY-HDBT SLIM-70 EXTENDERS Figure 1 - Configuration Example sy.uk...
- Page 6 Supports Tx, Rx, RTS and CTS – any RS232 baud rate up to RS232 115.2 Kb Power Supply 48V DC @ 0.5A Power Consumption SY-HDBT-SLIM-70 Set: 7.5 W max Environmental Operating Temperature 0 – 40 °C Operating Humidity 5 – 90% RH (non-condensing)
- Page 7 RJ-45 Wiring Both connectors must be wired identically. HDBaseT signals will not pass through any Ethernet device, the HDBaseT port on the SY- HDBT-70T must be connected directly to the HDBaseT port on the SY-HDBT-70R. Please do make sure that the Cat6 cable uses 4 pairs of 23AWG solid copper wires. Do not use inferior copper clad cables as these exhibit higher resistances.
- Page 8 After Sales Service Should you experience any problems while using these products, firstly refer to the Troubleshooting section in this manual before contacting SY Technical Support. When calling SY Technical Support, the following information should be provided: ...
