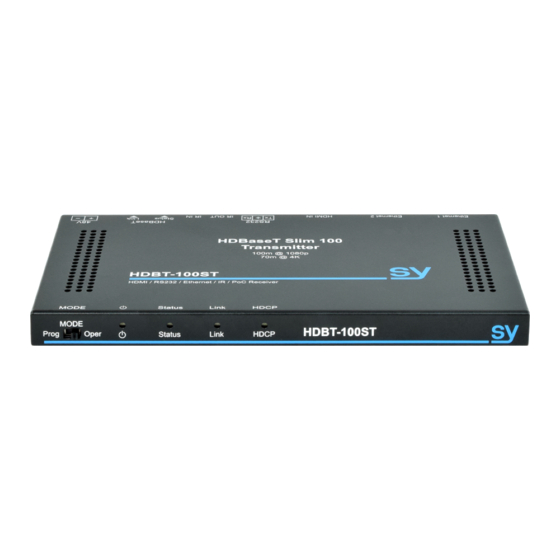

SY-HDBT-SLIM-100S EXTENDERS
Installation Guide
SY-HDBT-SLIM-100S
Extender Set
with
HDMI, Ethernet, IR, RS232 and Power
over 100m of cat6 Cable
HDBaseT HDMI Extenders
SY Electronics Ltd, Unit 7, Worrall Street, Salford, Greater Manchester, M5 4TH, United Kingdom
Tel: +44 (0) 161 868 3450 – Fax: +44 (0) 161 868 3459 –
www.sy.co.uk
Advertisement
Table of Contents
Related Manuals for SY SY-HDBT-SLIM-100S
Summary of Contents for SY SY-HDBT-SLIM-100S
-

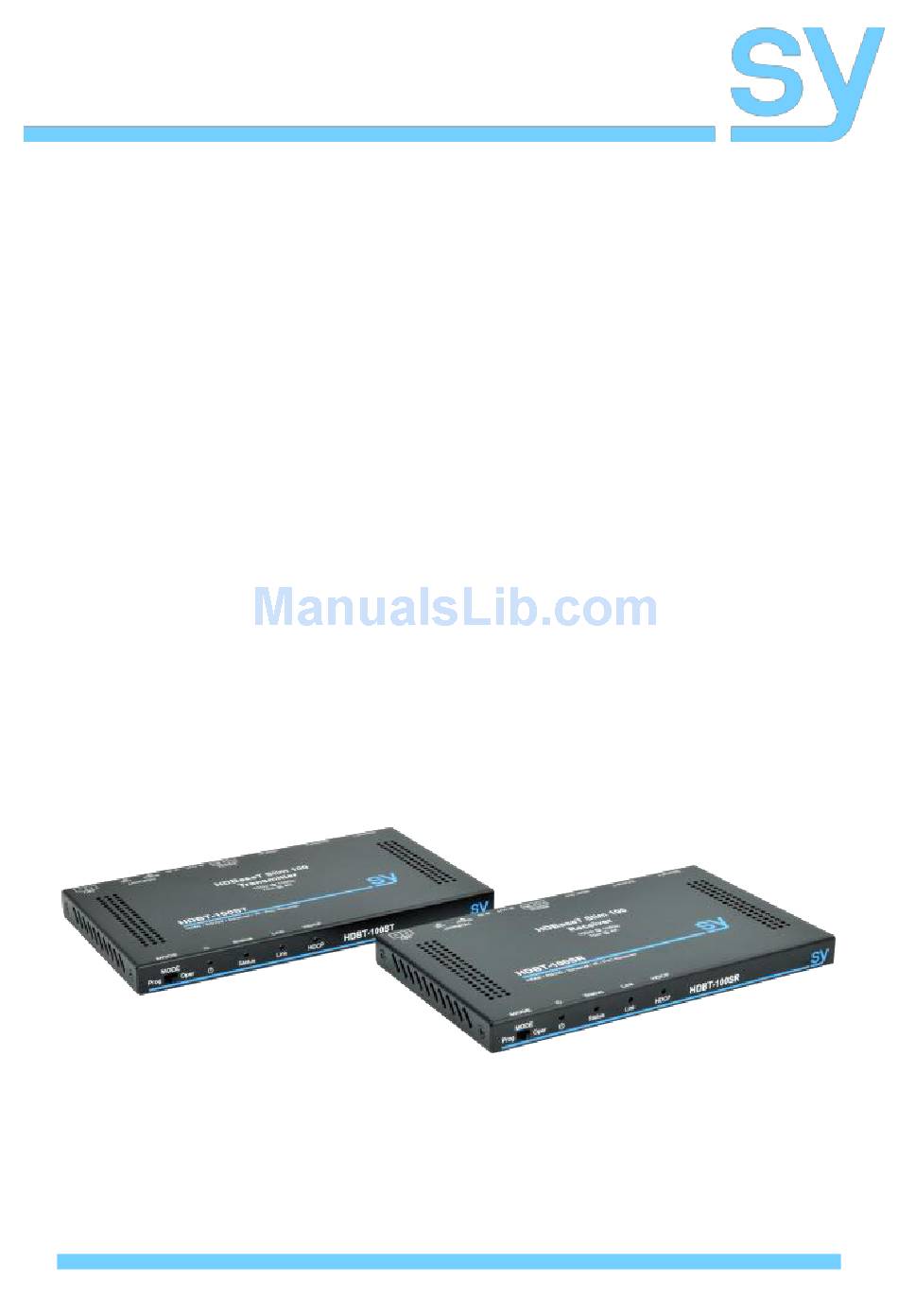

Page 1: Installation Guide
HDMI, Ethernet, IR, RS232 and Power over 100m of cat6 Cable HDBaseT HDMI Extenders SY Electronics Ltd, Unit 7, Worrall Street, Salford, Greater Manchester, M5 4TH, United Kingdom Tel: +44 (0) 161 868 3450 – Fax: +44 (0) 161 868 3459 – www.sy.co.uk... - Page 2 SY-HDBT-SLIM-100S EXTENDERS The SY-HDBT-SLIM-100ST and SY-HDBT-SLIM-100SR HDBT transmitter / receiver pair will transmit up to 4k HDMI, two-way IR control, bi-directional RS232 data, Ethernet data and power over a single cat6 cable with perfect quality. The maximum distance is dependent on the resolution and the full 100m can be achieved with 1080p HDMI signals.
-
Page 3: Connectors And Controls
SY-HDBT SLIM-100S EXTENDERS Connectors and Controls Front Name Transmitter Receiver Set to Oper to use normal RS232 communications MODE SWITCH Set to Prog to perform field upgrades POWER LED Red when unit is powered STATUS LED Blue STATUS LED indicating that the unit is operating... -
Page 4: Hdmi Extender
The following diagrams show the IR IN and IR OUT wiring, please note that the IR signal for the SY-HDBT-100S Extender set must have the IR carrier present at the IR IN connector to ensure that the correct carrier frequency is presented to the output connector at the other end of the Cat6 link. -
Page 5: Mode Switch
Receiver units. Mode Switch The MODE switch should be set to Oper to permit transmission of RS232 signals between the two extenders. The Prog setting is only used should the SY-HDBT-SLIM-100ST or the SY- HDBT-SLIM-100ST require a field upgrade. V1.0... -
Page 6: Specifications
Supports Tx and Rx only – any RS232 baud rate up to 115.2 RS232 Power Supply 48V DC @ 0.5A Power Consumption SY-HDBT-SLIM-100S Set: 7.5 W max Environmental Operating Temperature 0 – 40 °C Operating Humidity 5 – 90% RH (non-condensing) www.sy.co.uk... - Page 7 RJ-45 Wiring Both connectors must be wired identically. HDBaseT signals will not pass through any Ethernet device, the HDBaseT port on the SY- HDBT-100ST must be connected directly to the HDBaseT port on the SY-HDBT-100SR. Always ensure that the Cat6 cable uses 4 pairs of 23AWG solid copper wires. Do not use inferior copper clad cables as these exhibit higher resistances.
-
Page 8: Safety Instructions
After Sales Service Should you experience any problems while using these products, firstly refer to the Troubleshooting section in this manual before contacting SY Technical Support. When calling SY Technical Support, the following information should be provided: ...
