SY-HDBT-70S EXTENDERS
Installation Guide
SY-HDBT-70S
Extender Set
with
HDMI, IR, RS232 and Power
over 70m of cat6 Cable
Slimmest HDBaseT HDMI Extender
SY Electronics Ltd, Unit 7, Worrall Street, Salford, Greater Manchester, M5 4TH, United Kingdom
Tel: +44 (0) 161 868 3450 – Fax: +44 (0) 161 868 3459 –
www.sy.co.uk
Advertisement
Table of Contents
Related Manuals for SY SY-HDBT-70S
Summary of Contents for SY SY-HDBT-70S
-
Page 1: Installation Guide
HDMI, IR, RS232 and Power over 70m of cat6 Cable Slimmest HDBaseT HDMI Extender SY Electronics Ltd, Unit 7, Worrall Street, Salford, Greater Manchester, M5 4TH, United Kingdom Tel: +44 (0) 161 868 3450 – Fax: +44 (0) 161 868 3459 – www.sy.co.uk... -
Page 2: Connectors And Controls

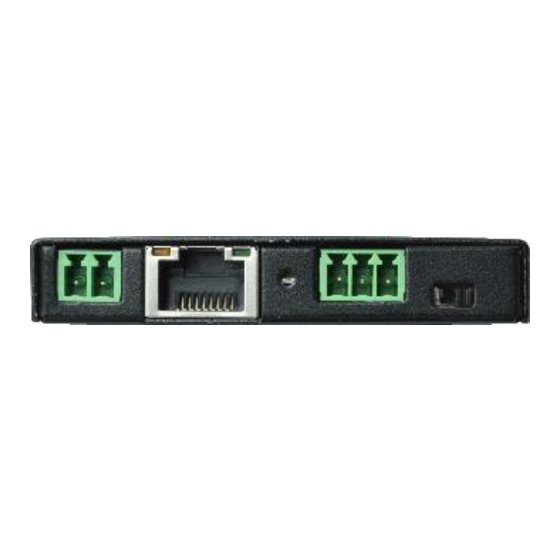

SY-HDBT-70S EXTENDERS The SY-HDBT-70ST and SY-HDBT-70SR HDBT transmitter / receiver pair broadcasts 1080p HDMI, two-way IR control, bi-directional RS232 data and power over 70m of cat6 cable with perfect quality. This maximum distance reduces to 40m for 4k HDMI signals. These extenders are suited to a wide range of applications in the AV industry, digital signage and at home. -
Page 3: Hdmi Extender
SY-HDBT-70S EXTENDERS Rear Name Transmitter Receiver Input from IR detector (3.5mm stereo Jack) IR IN Output to IR emitter (3.5mm Jack) IR OUT HDMI input from HDMI source HDMI output to HDMI display HDMI LED to indicate that the HDMI signal is present at the HDMI connector... -
Page 4: Mode Switch
To use the IR Extender option, point your IR remote control device at the IR detector connected to the IR IN socket of either the SY-HDBT-70SR or the SY-HDBT-70ST as required. An IR emitter must also be connected to the corresponding transmitter or receiver IR OUT socket. - Page 5 SY-HDBT-70S EXTENDERS Figure 1 - Configuration Example www.sy.co.uk...
-
Page 6: Specifications
Supports Tx and Rx only – any RS232 baud rate up to 115.2 RS232 Power Supply 48V DC @ 0.5A Power Consumption SY-HDBT-70S Set: 7.5 W max Environmental Operating Temperature 0 – 40 °C Operating Humidity 5 – 90% RH (non-condensing) - Page 7 RJ-45 Wiring Both connectors must be wired identically. HDBaseT signals will not pass through any Ethernet device, the HDBaseT port on the SY- HDBT-70ST must be connected directly to the HDBaseT port on the SY-HDBT-70SR. Please do make sure that the Cat6 cable uses 4 pairs of 23AWG solid copper wires. Do not use inferior copper clad cables as these exhibit higher resistances.
-
Page 8: Troubleshooting
SY-HDBT-70S EXTENDERS Troubleshooting Problem Possible Cause Power LED is off Check that the correct power supply as provided with the product is being used. Check the PSU connections and ensure that the PSU is switched If the PSU is at the other end of the RJ-45 cable, check that the cable is correctly wired and is connected to the local unit. -
Page 9: Safety Instructions
After Sales Service Should you experience any problems while using these products, firstly refer to the Troubleshooting section in this manual before contacting SY Technical Support. When calling SY Technical Support, the following information should be provided: ...
