SY-HDBT-60T / SY-HDBT-60R
Installation Guide
SY-HDBT-60 Extender Set
SY-HDBT-60 Set
HDMI + IR over 60m of cat6 Cable
HDBaseT HDMI Extenders
SY Electronics Ltd, Unit 7, Worrall Street, Salford, Greater Manchester, M5 4TH, United Kingdom
Tel: +44 (0) 161 868 3450 – Fax: +44 (0) 161 868 3459 –
www.sy.co.uk
Advertisement
Related Manuals for SY SY-HDBT-60T
Summary of Contents for SY SY-HDBT-60T
-
Page 1: Installation Guide
HDMI + IR over 60m of cat6 Cable HDBaseT HDMI Extenders SY Electronics Ltd, Unit 7, Worrall Street, Salford, Greater Manchester, M5 4TH, United Kingdom Tel: +44 (0) 161 868 3450 – Fax: +44 (0) 161 868 3459 – www.sy.co.uk... -
Page 2: Hdmi Extender

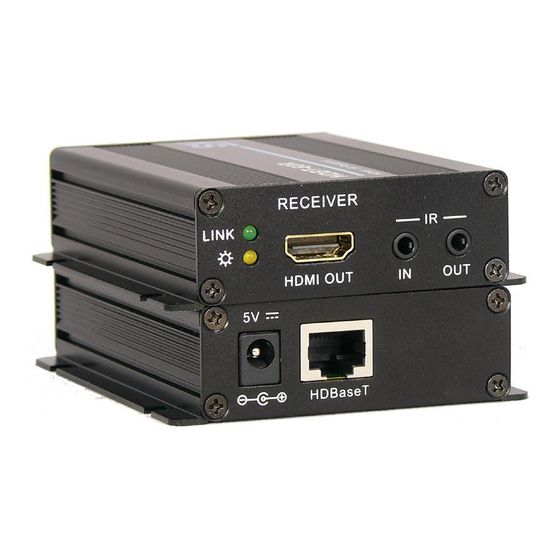

SY-HDBT-60T / SY-HDBT-60R The SY-HDBT-60T and SY-HDBT-60R HDBaseT transmitter / receiver pair, broadcast HDMI and two-way IR control up to 60m with perfect quality. Suitable for AV industry, Digital-Signage and at Home. Features Extend HDMI and data up to 60m with HDCP support and HDMI 1.4a compatibility ... -
Page 3: Specifications
Up to 60m cat6 IR Control 38kHz or 56kHz carrier frequency for any control protocol Power Supply 5V DC - DC2.5 Jack Power Consumption SY-HDBT-60T : 2.1 W SY-HDBT-60R : 5 W Environmental Operating Temperature 0 – 40 °C non condensing... - Page 4 RS-45 Wiring Both connectors must be wired identically. Note: HDBaseT will not pass through any Ethernet device, the HDBaseT port on the SY-HDBT-60T must be connected directly to the HDBaseT port on the SY-HDBT-60R. Please do make sure that all 4 pairs of 23AWG solid copper wires in the Cat6 cable are used.
