CatX AV Rx2
CatXQ AV Rx2
Manual and Installation guide
CatX AV Dual VGA receivers
Cat5/6 extenders
Audio + VGA Video with Dual VGA outputs over Cat5/6 UTP cable
Product type
150m receiver
1 x RJ45 output
300m receiver
1 x RJ45 input
Connectors
2 x 15HD male output,1.3mm DC Jack
2 x 3.5mm stereo Jack output
Advertisement
Related Manuals for SY CatX AV Rx2
Summary of Contents for SY CatX AV Rx2

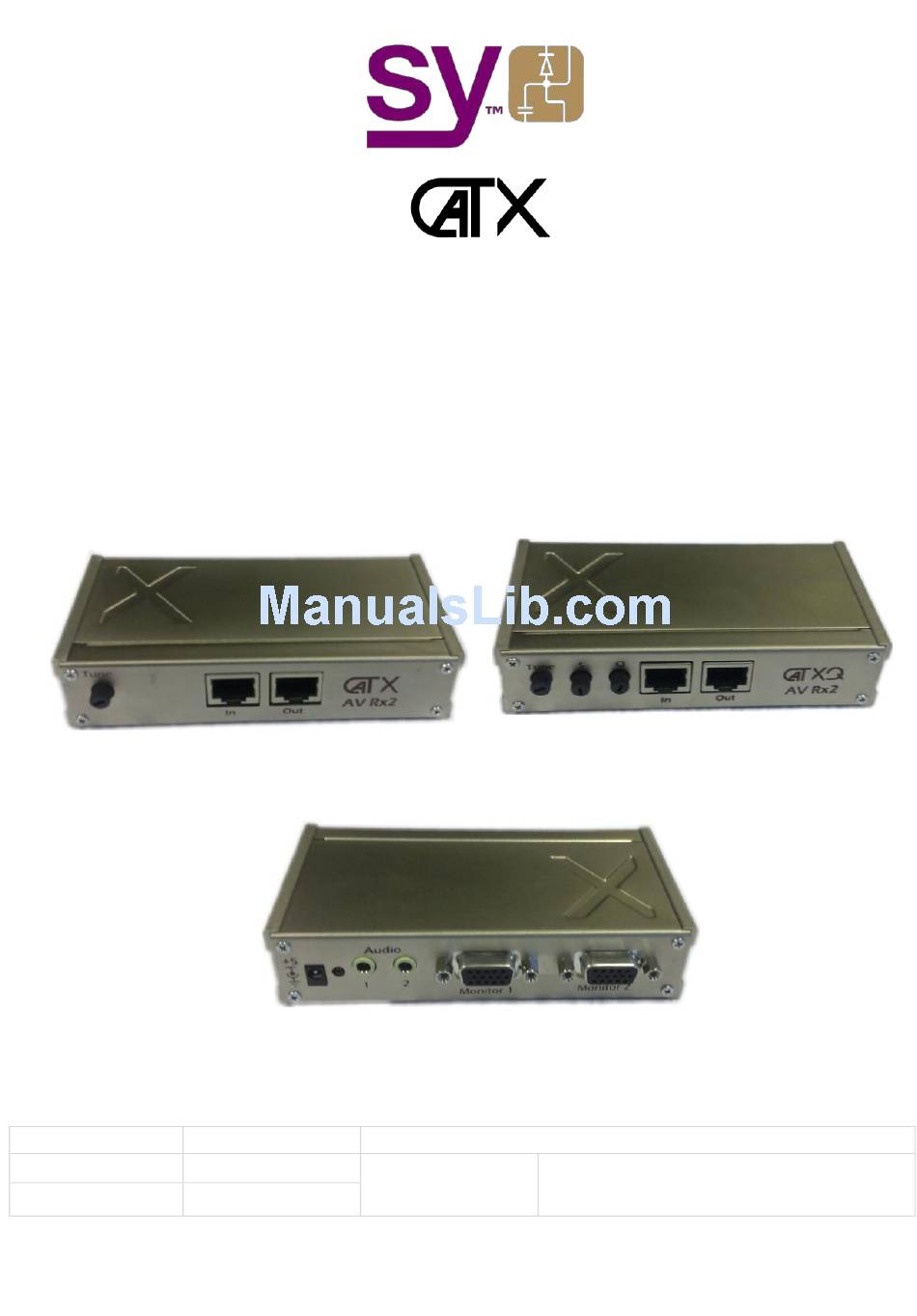

- Page 1 Cat5/6 extenders Audio + VGA Video with Dual VGA outputs over Cat5/6 UTP cable Product Product type Connectors CatX AV Rx2 150m receiver 1 x RJ45 input 2 x 15HD male output,1.3mm DC Jack 1 x RJ45 output 2 x 3.5mm stereo Jack output...
- Page 2 Overview - CatX AV receivers CatX AV receivers provide a flexible solution for outputting VGA video + Audio over Cat5/6 UTP cable up to either 150m or 300m. The CatX AV Rx receiver can be used for distances up to 150m The CatXQ AV Rx receiver can be used for distances up to 300m An external power supply is required for both types of AV receivers.
- Page 3 CatX units compatible with AV receivers The CatX AV Rx2 and CatXQ AV Rx2 receivers are compatible with the following CatX units Transmitters CatX AVP Tx2 – 2 port Audio + VGA Video or VGA Video + power transmitter up to 300m CatX AVP Tx4 –...
-
Page 4: Technical Specification
300m receiver 300m 300m 220m 150m 100m Technical Specification CatX AV Rx2 CatXQ AV Rx2 Maximum Distance 150m of Cat5/5e/6 UTP cable 300m of Cat5/5e/6 UTP cable 75 Ohms RGB input/output; VGA --- UXGA compatible; 1080P compatible VGA Video RGBHV, RGSB, YUV, Y/C, CVBS formats supported Separate or composite HV (TTL);...
