User Manual

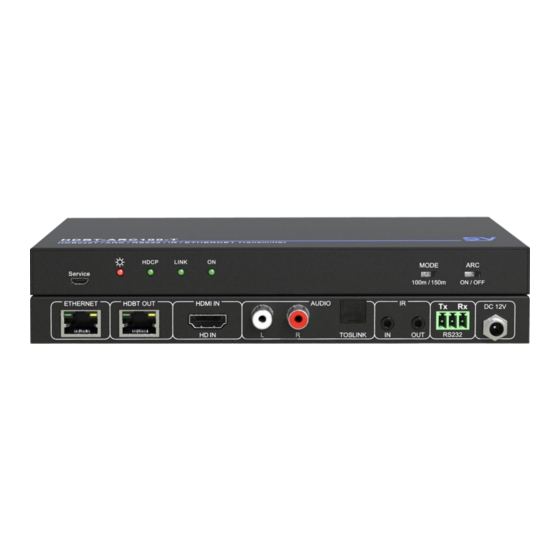

HDBT-ARC100 Set
Ultra-Thin 4K HDBaseT Extender
HDMI – HDBaseT Extender Pair
with Bi-Directional IR Support, Ethernet, RS232,
Audio return Embedding from Toslink or ARC
with De-embedding to Toslink and Analogue
4K UHD
150m @ 1080p
100m @ 4K2K (60Hz 4:2:0)
SY Electronics Ltd., 7 Worrall Street, Salford, Greater Manchester, M5 4TH
Tel: +44 (0)161 868 3450 – Fax: +44 (0)161 868 3459
Web: sy.uk
Advertisement
Table of Contents
Related Manuals for SY HDBT-ARC100
Summary of Contents for SY HDBT-ARC100
-
Page 1: User Manual
De-embedding to Toslink and Analogue 4K UHD 150m @ 1080p 100m @ 4K2K (60Hz 4:2:0) SY Electronics Ltd., 7 Worrall Street, Salford, Greater Manchester, M5 4TH Tel: +44 (0)161 868 3450 – Fax: +44 (0)161 868 3459 Web: sy.uk... -
Page 2: Panel Descriptions
This extender set can also use the HDMI audio return channel (ARC) from the display all the way through back to the HDBT-ARC100-T transmitter where the audio can be sent to an amplifier using either analogue stereo (L+R) or optical Toslink. - Page 3 Optical Toslink (S/PDIF) audio input port IR IN / IR OUT IR Input to send to the receiver and IR output from the receiver RS232 Bi-Directional RS232 port 12V DC In 12V DC input to power the transmitter V1.0 sy.uk...
- Page 4 The MODE switch should be set to the same position on both units to ensure the correct video. ARC Mode The HDBT-ARC100 can be used as an HDMI extender with or without the audio return channel, set the ARC switch to the same setting on both the transmitter and receiver units as follows:...
- Page 5 Figure 1 - HDBT-ARC100 as an HDMI Extender V1.0 sy.uk...
- Page 6 ARC not used – External audio sent from Receiver back to transmitter Figure 2 - HDBT-ARC100 as an Extender with ARC Using ARC Mode – Audio from monitor/TV is sent back to the transmitter sy.uk V1.0...
- Page 7 Generally ensure the cat cable is solid copper core of 23AWG (avoid CCA type), in one straight run (avoid/minimise patches) and avoid close proximity to any noisy electrical sources. V1.0 sy.uk...
- Page 8 For full details please refer to our Terms and Conditions. SY Product warranty is automatically void under any of the following conditions: The product is already outside of its warranty period ...
