1.2 Disassembling the Camera
Steps:
1. Loosen the lock screw on the camera cover.
2. Remove the camera cover, and you can see the oval dismountable sheet.
3. Loosen the two screws on the dismountable part.
4. Move the oval sheet aside, and you can see the reset button and the micro SD card slot.
Press and hold RESET for 10s when the camera is powering on or rebooting to restore the default settings,
including the user name, password, IP address, port No., etc.
10225 Westmoor Drive, Suite 300, Westminster, CO 80021 | www.3xlogic.com | (877) 3XLOGIC
Hardware Install Manual | VISIX 360 Network Camera
Table 1-1 Description of Overview
No. Description No. Description
1
Camera
7
Body
2
Reset
8
3
Micro SD
9
Card Slot
4
Camera
10
Cover
5
IN G 1A 1B:
11
Alarm
Interfaces
6
Ethernet
Interface

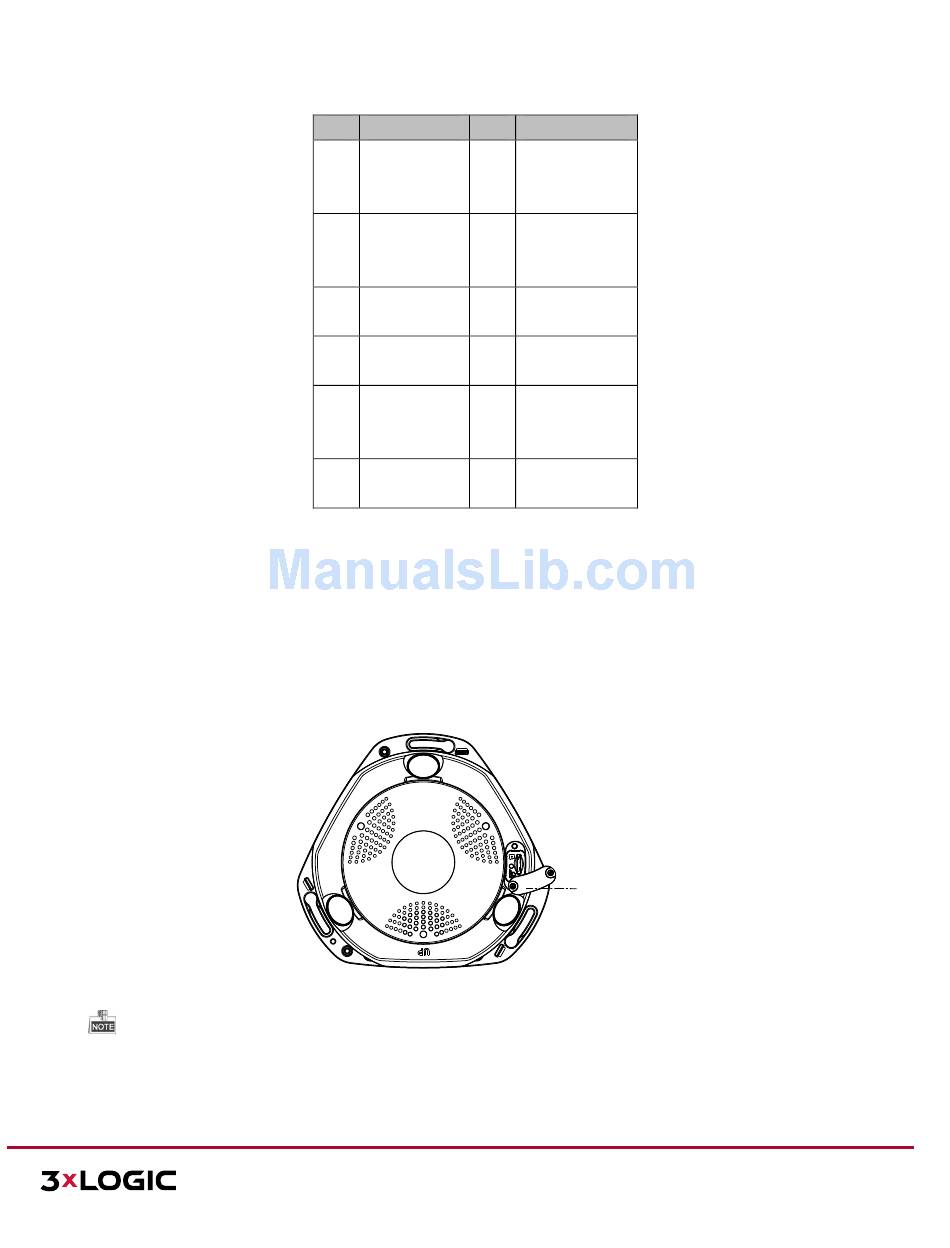

Figure 1-3 Move the Oval Sheet Aside
D- D+:
RS-485
Interface
DV-12V:
Power
Interface
Audio In
Audio Out
COAX: Video
Out/Monitor
Out
Oval Sheet
