2.2 Wall/Ceiling Mounting with a Slant Mounting Base

The wall/ceiling mounting with a slant mounting base provides a wider surveillance view compared to the wall

mounting(when positioned correctly). You need to purchase a slant mounting base separately if this mounting

method is selected.

3xLOGIC Product Number: VX-ISM-360

Steps:

1. Fix the slant mounting base to the wall with the screws.

2. Screw the three screws half-deep to the mounting base.

1. Connect the corresponding power cable, network cable, audio and alarm cables.

2. Align the screw holes to the inserted screws, hook the camera body to the screws, and route the camera

body to secure the camera with the screws.

3. Screw the half-deep screws into the wall totally.

4. Install the camera cover to the camera body, and fix them by tightening the lock screw on the camera

cover.

10225 Westmoor Drive, Suite 300, Westminster, CO 80021 | www.3xlogic.com | (877) 3XLOGIC

Hardware Install Manual | VISIX 360 Network Camera

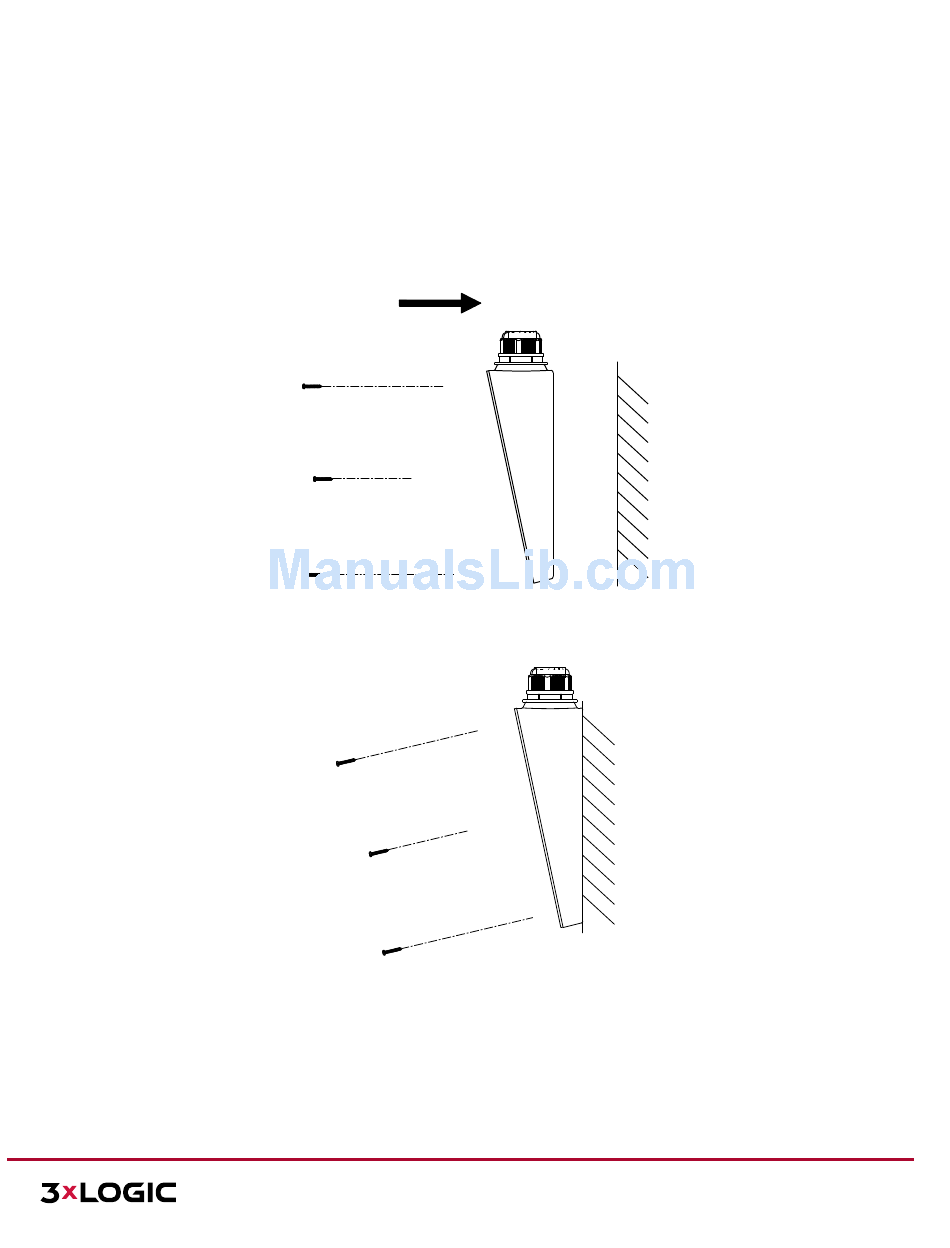

Figure 2-5 Fix the Slant Mounting Base

Figure 2-6 Hammer the Screws

(Product #: VX-ISM-360)
