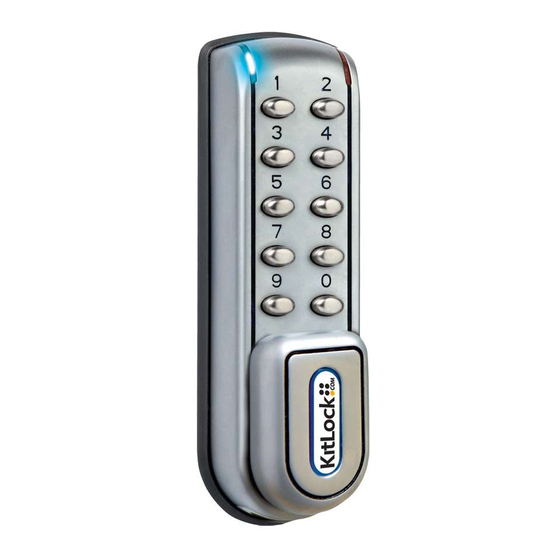

CODELOCKS CL1200 Programming & Operating Instructions

You are currently in:
CL1200 Programming & Operating
Instructions
Print Page
CODES – The Basics
The Cabinet Lock has three code levels available:
i) Master Code
ii) Sub-Master Code
iii) User Code
The Cabinet Lock is supplied with two factory set codes:
Master Code: 11 33 55 77
User Code: 22 44
When fitted immediately change the Master Code and User Code
All Master Codes and Sub-Master Codes are 8 digits long
All User Codes are 4 digits long
The lock 'open' time is set at 4 seconds

FUNCTIONS

Before programming select the most appropriate function for the application.
A) Repeated Use
Important Note: This is the default function and is already pre-programmed in new locks.
This is the most common function and is used where the same code will be repeatedly used.
B) Single User (Locker Mode)
The User enters a single use code which will lock and then open the lock once only and then be
erased.
This function is used for short term, multi occupancy applications e.g. a locker in leisure centre.
The lock will now remain open until the next single use code is entered into the lock.

OPERATING INSTRUCTIONS

Note: The Cabinet Lock has a 10 button keypad and a
button is hidden beneath the handle when in the locked position.
The lock has the following code levels:
Master Code can:
Open the lock
Change the Master Code
Codelocks UK > CL1200 Programming Operating Instructions
badged bar button. The badge bar
