Output installation
Even though the input side allows both types of terminals, the output installation

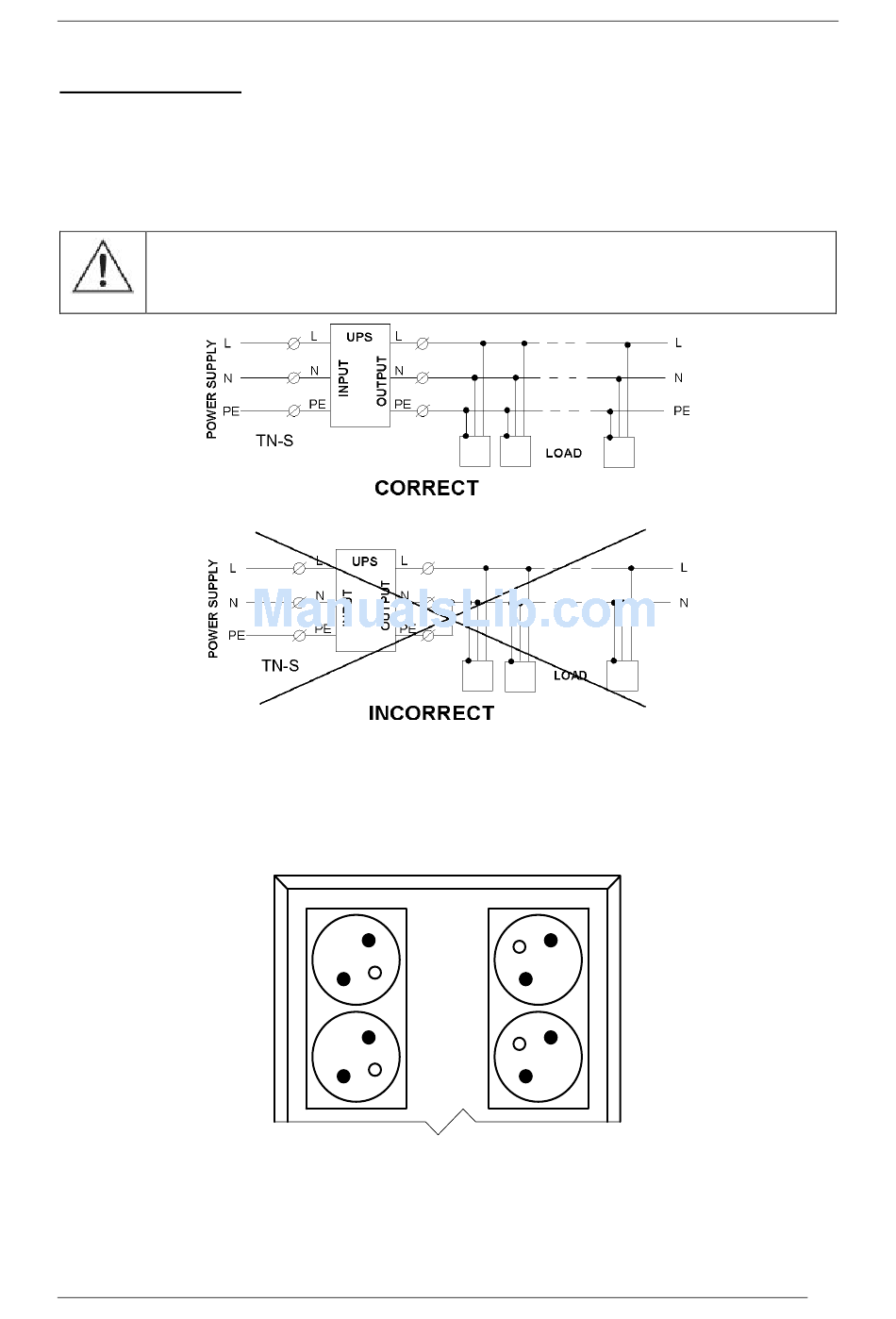

arranged inconsistently with this instruction may damage the UPS. The diagram of
correctly arranged output connections is presented on the scheme below.
WARNING! The output side of the battery module only allows the
TN-S mains configuration.
The arrangement of terminals of output sockets of Tower and Rack model Sinline
UPS is presented on figures 10 and 11 below.
Fig. 10: The arrangement of terminals of output sockets of Tower model Sinline battery module
2010/01/26
SINLINE series UPS – Instruction Manual
Fig. 9: Output installation of a Tower model Sinline UPS
L
PE
N
L
PE
N
N
PE
L
N
PE
L
