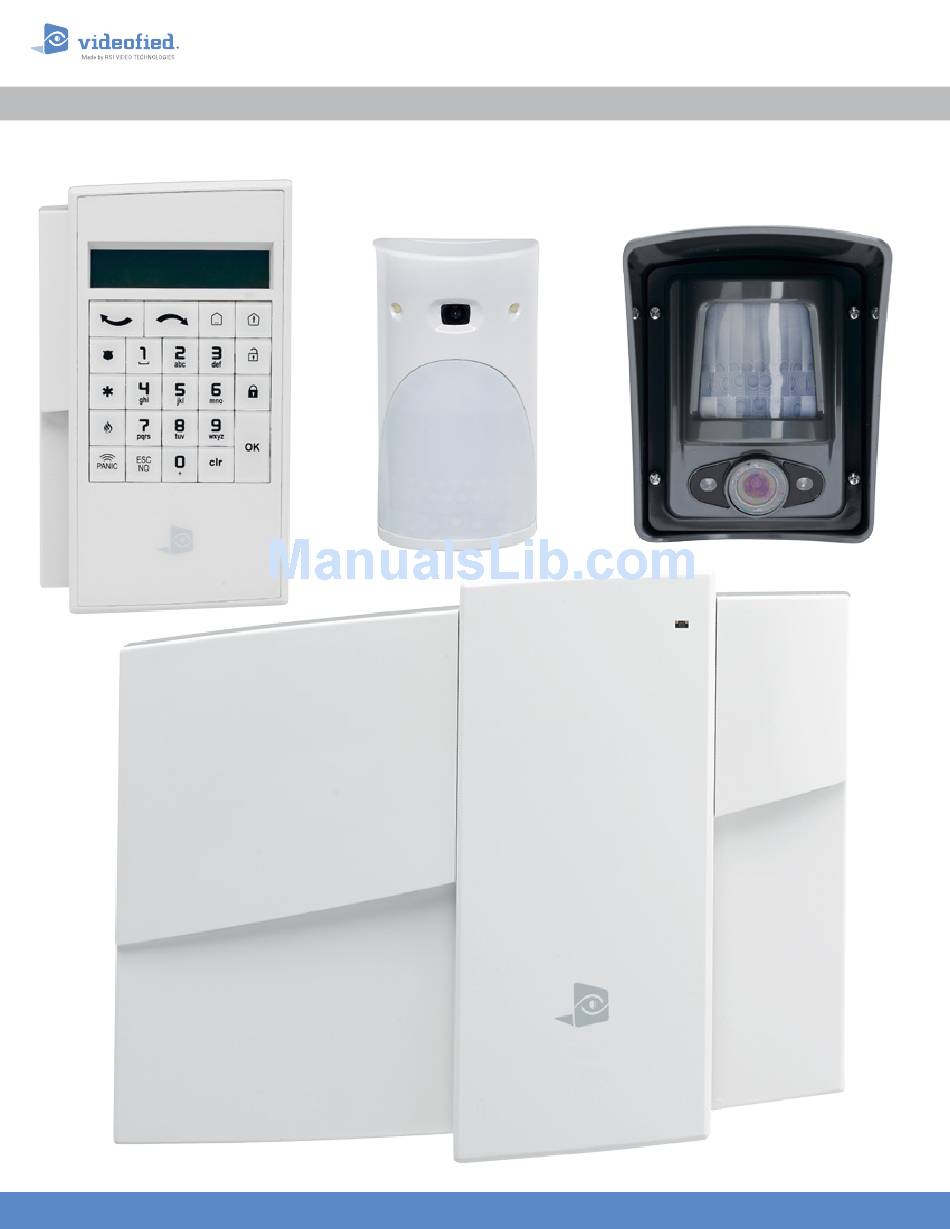

- Page 1 XL200L / XL600L / XL700L GPRS Control Panel I N S T A L L A T I O N M A N U A L Doc. - Ref. 230-XLL Last modification date : June 2014 Firmware version : XLP.04.04.05.XXX and later...
-
Page 2: Introduction

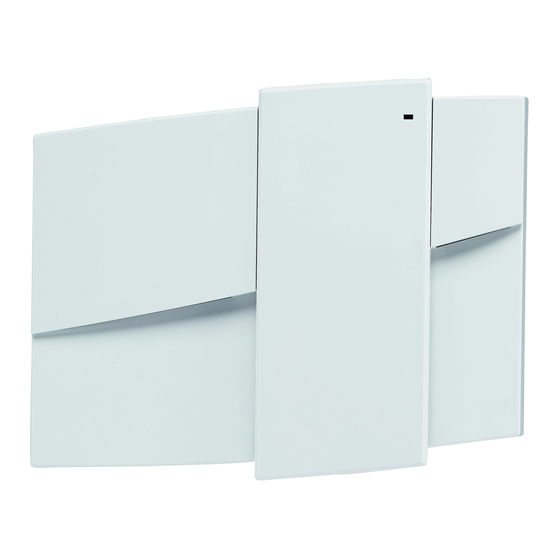

M A N U A L Description The XLL control panel is a Videofied wireless alarm system operated by battery or mains power supply. This panel is intended mainly for residential and commercial markets. With the Motion Viewers™ and Videofied ®... -
Page 3: Table Of Contents
3.4 Manage badges and access codes...................15 3.5 Delete the keypad or any other device................17 3.6 Read the events log......................18 3.7 Opening the cover of an installed panel................18 3.8 Golden rules........................18 4. Transmitted Events List..................19 5. 2G3G Error Codes....................20 6. Technical Specifications and Security Notes............21 www.videofied.com... -
Page 4: Xll Panel Setup
Connect the panel’s face to its base by carefully placing the hinges on it. 2 locking clips are provided to strengthen the hinges: position each locking clip before locking them completely (The EN50131 standard requires the installation of these locking clips). Locking clips location www.videofied.com... -
Page 5: Powering And Initialization
THE CONTROL PANEL MUST BE CONNECTED TO AN EXTERNAL POWER SUPPLY (OPTION 1) WHEN USING THE RINGTONE FEATURE OR SMARTPHONE APP. Batteries cable Batteries connector Option 1 To install the power supply inside the box, break the plastic battery separator. Mains Connector Programming button Option 2 www.videofied.com... -
Page 6: Pairing The Remote Keypad
• Do not mount the keypad. It will display one of the following screens: RSI (c) 2013 <=========XX=========> videofied.com • Press on both ESC NO keys at the same time and release. The indicator LED on the keypad will blink rapidly. - Page 7 There is no back door or Default codes to the system. OK or YES Please refer to the restriction rule for codes (Chapter 3.4). Some codes are already used by default and therefore CONFIRM CODE cannot be used. OK or YES www.videofied.com...
- Page 8 13/10/14 10:47 ENTRY COMPLETE ! CONNECTED TO MONITOR. STATION? OK or YES Use the Alphanumeric Keypad to enter in a 4-8 digit ACCOUNT NUMBER : account number provided by the Central Station. ACCOUNT NUMBER : 567001 OK or YES www.videofied.com...
- Page 9 Events list NOT TRANSMITTED: event is not transmitted, however it will appear on the keypad. Please liaise with your Monitoring Station to ensure that the requested events to transmit are correctly set. SERVER ADDRESSES ? OK or YES www.videofied.com...
- Page 10 It makes a difference between UPPER and lower case letters. To switch between UPPER and lower case, use the M/m key from CMA keypad or hold a digit key (0-9) for XMA/XMB. 2G3G PARAMETERS? 2G3G LEVEL ? www.videofied.com...
- Page 11 The 2G3G level test can last several minutes. Do not interrupt the test or remove the SIM card during the test. IMPORTANT : Videofied will require a 3/5 grade or OK or YES better for reliable transmission of Video alarms.
- Page 12 OK or YES closed and the indicator LEDs are off. After initial programming has been completed, make SYSTEM CHECK use of the menu overview document (available on our IN PROGRESS technical support website), to see full programming options. INSTALLATION SUCCESSFUL ! www.videofied.com...
-
Page 13: Xll Features Guide
OK or YES enter your user code press OK or YES ( XMB model only) and press OK or YES enter your user code With remote Present your badge on badge reader the badge reader BR250 With remote Press Press keyfob www.videofied.com... -
Page 14: Arming And Siren Mode Configuration
(by default : all opening contacts with external access*) * You can set your devices as : External, Perimeter, ou External +Perimeter. Please go to the menu: CONFIGURATION (LVL 4) -> AREAS AND DEVICES -> DEVICES -> DEVICES CONFIGURATION -> DEVICE TYPE www.videofied.com... -
Page 15: Manage Badges And Access Codes
After 1 min of no use of the keypad and no tests running, the display returns to the standby display and LVL1. • When standby display, if the ESC NO key is held during 5s, the level is changed to LVL1. www.videofied.com... - Page 16 Access codes in any combination. From 999898 to 999999 The table presents the reserved From 314157 to 314159 code possibilities that cannot be All codes +1 used. All codes +2 A total of 186 codes are All codes -1 forbidden. All codes -2 www.videofied.com...
-
Page 17: Delete The Keypad Or Any Other Device
OK or YES A1 : KEYPAD KEYPAD 1 OK or YES DELETE OK or YES < = = = = XX = = = = > You can now remove the batteries from the device www.videofied.com... -
Page 18: Read The Events Log
A colon display [:] means that the parameter can be need to be portable during programming. changed. Always clean the lens of the cameras after the installation (Use a clean, dry cloth, taking care not to exert pressure on the lens). www.videofied.com... -
Page 19: Transmitted Events List
After initial programming, using a remote keypad : Use the arrows to access : CONFIGURATION (level 4) > CONFIGURATION MONITOR. STATION > MONITORING PARAMETERS > EVENT TRANS. MODIFICATION Then use the arrows to determine the event to modify. Press OK or YES to edit. www.videofied.com... -
Page 20: G3G Error Codes
Insufficient GPRS Network: When the panel is unable to find any signal, proceed to GPRS level test in another location on site. You can also find the network state or condition of use by directly contacting your local operator. www.videofied.com... -
Page 21: Technical Specifications And Security Notes
- Can be self-powered - 105 dB (A) at 1 meter EMEA SALES North American Headquarters 1375 Willow Lake Blvd, Suite 103 23, avenue du Général Leclerc Vadnais Heights, MN 55110 92340 BOURG-LA-REINE FRANCE E-Mail : usasales@rsivideotech.com E-Mail : emeasales@rsivideotech.com www.videofied.com...
