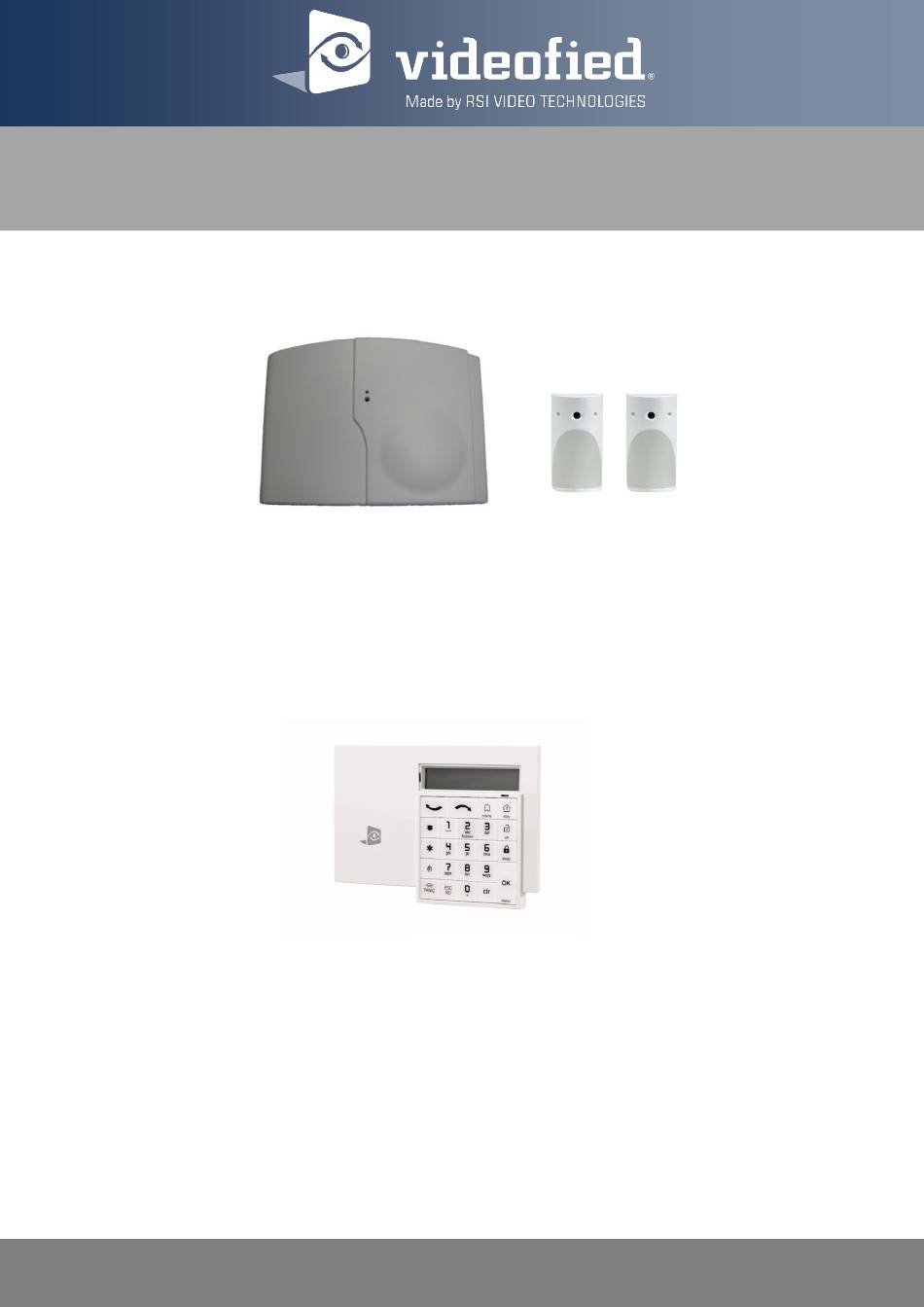

- Page 1 Document #2002-XTIPIN Complete Setup and Programming Guide for XT-IP315 *A Videofied WMB Alphanumeric Keypad is required for programming and maintenance* WWW.VIDEOFIED.COM...
-
Page 2: Table Of Contents
2012/1/9 Ed 1.1 Setup and Programming manual for XTIP series Table of Contents Page Installation Guidelines Introduction Initial Programming 6-15 Device Installation Entering Badges and Access Codes 17-18 Choosing Siren Options Disabling Monitoring Ethernet Parameters and Testing Testing 2G3G Level and Error Codes List Testing Device RF Level XTIP Power Chart Mounting XT/XTX... -
Page 3: Fcc
2012/1/9 Ed 1.1 Setup and Programming manual for XTIP series Regulatory Information for USA and Canada FCC Part 15.21 Changes or modifications made to this equipment not expressly approved by RSI Video Technologies may void the FCC authorization to operate this equipment. FCC Part 15.105 Class B This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. -
Page 4: Installation Guidelines
2) Call into the AC&T (1-800-345-7362) to obtain the CS number (account number). Although the prefix will be IVI#### the Videofied control panel will only require the numbers. You will be required to have the following information for the AC&T: a. -
Page 5: Introduction
Setup and Programming manual for XTIP series Introduction: Description: The XT-IP series control panel is a Videofied wireless, battery operated hybrid alarm system. It is designed for residential, small business and commercial security applications. The XT-IP series provides integrated Video Verification and features dual communication paths: Ethernet and 2G3G. - Page 6 2012/1/9 Ed 1.1 Setup and Programming manual for XTIP series SETUP MANUAL FOR XT-IP SERIES 2G3G PANEL *THIS SYSTEM REQUIRES A CMA/WMB/XMA or TMT2 INSTALLER SOFTWARE FOR PROGRAMMING* **TO TRANSMIT ALARMS AND VIDEO VIA ETHERNET, THE SYSTEM REQUIRES AN EXTERNAL POWER SUPPLY WITH 4 ALKALINE BATTERIES FOR BACK-UP (PP4)** XT Initial Programming Open the Control Panel Using a #1 Phillips screwdriver, remove...
- Page 7 2012/1/9 Ed 1.1 Setup and Programming manual for XTIP series *The SIM card must NOT be inserted or removed while the panel is powered* Install the SIM card Slide SIM card into the slot. Make sure it is aligned correctly. The SIM card is not required if you plan to use Ethernet only.
- Page 8 2012/1/9 Ed 1.1 Setup and Programming manual for XTIP series Control Panel Power 4 x E95VP Alkaline D-Cell + 12v 2amp DC Class 2 power supply (not supplied) Used for Standalone or Xtender mode where Programmable Inputs/Mapping, Programmable Outputs, Ethernet connection, or SMS will be used E95VP Specifications: Operating Temp: 0°F to 130°F Power Supply Requirements...
- Page 9 2012/1/9 Ed 1.1 Setup and Programming manual for XTIP series XT-IP Programming Reset the XTIP Panel: Press and hold programming button ( ) for 10sec until the Indicator LED blinks twice Press and instantly release the programming button ( The indicator LED will blink once.
-
Page 10: Initial Programming
2012/1/9 Ed 1.1 Setup and Programming manual for XTIP series YES/OK RADIO RANGE The Radio Range test must be run during device recording TEST ? to ensure proper pairing with the control panel. This test the number of successful pings between the device and the control panel. - Page 11 2012/1/9 Ed 1.1 Setup and Programming manual for XTIP series ADJUSTING TIME AND DATE DATE (Year) : DATE(Year) : Use the to set the Year YES/OK DATE (Month) : 13/01/ DATE (Month) : Use the to set the Month 13/11/ ...
- Page 12 5 minutes. Once the level or error has posted press YES/OK to continue in programming. TEST IN PROGRESS YES/OK = END Videofied will require a 3/5 or better for reliable transmission 2G3G LEVEL of Video alarms. Cellular errors can be found on page 21 YES/OK...
- Page 13 2012/1/9 Ed 1.1 Setup and Programming manual for XTIP series ETHERNET PARAMETERS DHCP: ENABLE OR DISABLE DISABLE PANEL IP • These parameters are not necessary if you choose IP MASK DHCP ENABLE ENABLE • These parameters are the local network parameters. It’s necessary to configure all these parameters if GATEWAY DHCP is disabled.
- Page 14 2012/1/9 Ed 1.1 Setup and Programming manual for XTIP series Enter the name of the logical area 1 + YES/OK. Repeat AREAS this step for areas 2, 3, 4. Refer to page 4 for more CONFIGURATION information. Press ESC/NO if you want to let default value. AREA NAME 1: Note: Areas are designed to define logical separation ...
- Page 15 2012/1/9 Ed 1.1 Setup and Programming manual for XTIP series Arming Delay is the number of seconds the system will wait ARMING DELAY to arm after voltage is latched on the arming input. This feature can be used as an exit delay. Enter the value you would like for the Arming Confirmation ...
-
Page 16: Device Installation
2012/1/9 Ed 1.1 Setup and Programming manual for XTIP series Device Installation DCV651 – Outdoor MotionViewer / BR651 Outdoor Badge Reader Place batteries in Device. Wait for LED to turn on. Press and release the programming button. DCV601 – Indoor MotionViewer / ITR601 – Indoor Blind PIR/ IMD601/IMV601 – Indoor Motion and MotionViewer Place batteries in device. -
Page 17: Entering Badges And Access Codes
2012/1/9 Ed 1.1 Setup and Programming manual for XTIP series Entering a Badge or Access Code for Arming/Disarming After Initial programming has been completed, you are not able to arm and disarm the system until you enter a user code or badge (the installer code cannot arm and disarm the system). Codes can be 4-6 digits and the 4 digit must be 2 values higher or lower than any other code on the system: Example: User code 1234, next code cannot be 1235, 1236, 1233, or 1232 –... -
Page 18: Choosing Siren Options
2012/1/9 Ed 1.1 Setup and Programming manual for XTIP series A total of 186 codes are forbidden Access level Definition & rights LVL1 Stand by level Restricted USER level where it is only possible to arm/disarm the system. LVL2 USER level where it is possible to arm/disarm the system, check the event log, test the devices. -
Page 19: Disabling Monitoring
2012/1/9 Ed 1.1 Setup and Programming manual for XTIP series How to Disable/Enable Monitoring Disabling monitoring can be a useful tool in many situations. Before mounting devices and moving the panel to find a good 2G3G level, disabling monitoring will ensure that you will have access to programming and that unnecessary signals are not sent to the monitoring station. -
Page 20: Ethernet Parameters And Testing
2012/1/9 Ed 1.1 Setup and Programming manual for XTIP series ETHERNET Parameters: nging Siren Options To configure or modify Ethernet Parameters, go to: CONFIGURATION (level 4) + [YES/OK] >> GENERAL PARAMETERS + [YES/OK] >> ETHERNET + After initial programming has been completed any sounder on the system will be enabled by default, [YES/OK] this includes the sounder on the Keypad and Badge Reader. -
Page 21: Testing 2G3G Level And Error Codes List
2012/1/9 Ed 1.1 Setup and Programming manual for XTIP series Before the system is mounted you will need to check the 2G3G level to make sure it is adequate. If the level is 3/5 or better you can mount the control panel in that location. EVENT LOG 2G3G Level Error... -
Page 22: Testing Device Rf Level
How to test RF for deployment of devices Running the RF test during the mounting of devices is key to a successful Videofied installation. This test will ensure that all devices have adequate communication with the control panel. All Videofied devices are bi-directional which allows the system to ping the device and expect a response. -
Page 23: Xtip Power Chart
The following application notes are available on http://support.videofied.com: Direct Bypass Configuration Programmable Input Configuration Programmable Output Configuration Partitioning Configuration Chime Configuration System Status Configuration Scheduling Configuration Ringtone Configuration Videofied Remote (Smartphone app) Configuration 23 | P a g e... -
Page 24: Arming Input Wiring Diagram
Setup and Programming manual for XTIP series Arming Input Wiring Diagram When in the ‘Arm From Host’ mode the Videofied system will only arm and disarm when 9-12v is supplied and sustained. When both arming inputs are supplied voltage at the same time the Videofied Keypad display will show ‘SYSTEM ARMED. -
Page 25: Testing To Central Station
2012/1/9 Ed 1.1 Setup and Programming manual for XTIP series How to test to the dispatch center Testing to the dispatch is done twice during installation. Once while you are programming the system and then again once the installation has been completely finished. Although both will use the same steps the initial test will be just confirmation using one device to verify the programming. -
Page 26: Troubleshooting
Good communication between the MotionViewers and the Control Panel is key to getting successful video to the monitoring station. During mounting of any device on your Videofied system you must run the Radio Range/Device Locating test to ensure that the mounting location is with-in range of the Control Panel. - Page 27 2012/1/9 Ed 1.1 Setup and Programming manual for XTIP series Monitoring Station is not getting any signals: Communication between the Control Panel and the Monitoring Station is either over the Ethernet Connection or 2G3G side of the GSM cellular network. ...
- Page 28 2012/1/9 Ed 1.1 Setup and Programming manual for XTIP series Unable to record device or getting ‘Pairing Failure’ error This usually occurs when the device still has a pairing key from a previous system or setup. To perform a pairing key override: 1.
-
Page 29: After Initial Programming Flow Chart
2012/1/9 Ed 1.1 Setup and Programming manual for XTIP series XT-IP -SERIES ‘AFTER INITIAL PROGRAMMING’ FLOW CHART Parameters are only available in Access Level 4 29 | P a g e... - Page 30 2012/1/9 Ed 1.1 Setup and Programming manual for XTIP series 30 | P a g e...
- Page 31 2012/1/9 Ed 1.1 Setup and Programming manual for XTIP series 31 | P a g e...
-
Page 32: Addendum
2012/1/9 Ed 1.1 Setup and Programming manual for XTIP series Addendum 1. LSH20 Control Panel Batteries: 2. LS14500 Peripheral Batteries: Excludes SE601 and SE651 3. Lithium Battery Storage: 32 | P a g e... -
Page 33: Finding Manufacture Week/Year
2012/1/9 Ed 1.1 Setup and Programming manual for XTIP series 4. Finding Manufacture Week and Year: The Manufacture week and year can be found in the serial number of the device/control panel. The second sets of 4 numbers in the serial number are WWYY. ####0411######## = Which shows that this device was manufactured in the 4 week of 2011. -
Page 34: Replacing Device And Control Panel Batteries
Setup and Programming manual for XTIP series 7. Replacing Device and Control Panel batteries When replacing batteries in the Videofied control panel or devices the battery replacement mode must be used. This will ensure that the low battery algorithm on the panel/device is properly reset and also helps keep the devices synced with the control panel.
