Videofied ITR110 Installation Instructions

Product Summary
The PIR Model ITR110/ITR600 is a wireless, indoor motion
detector designed for use in VIDEOFIED
detector includes the following features:
>
Lithium batteries for long life.
>
Standard coverage lens (12 m/40 ft. distance).
>
Dual tamper function provides detection for both wall
and cover tamper.
>
Transmits check-in/status signal every 8 minutes.
Programming/RF Testing
The following provides summarized steps for device
programming and testing. For complete details, refer
to the control panel installation manual.
1
Loosen bottom screw, separate base
from detector and install battery.
2
Re-attach base to secure tamper
switch.
3
Put control panel into programming
configuration mode.
/
4 Using a programmed alphanumeric
keypad, proceed through menus until
the display shows RECORDING
DEVICES.
5
Press YES. The display shows PRESS
PROGRAM BUTTON OF DEVICE.
6
Press and release program button
on detector using a paper clip end.
The detector LED flashes. Wait for
keypad display to show DETECTOR
(1 - 24) RECORDED.
7
Press YES. The display shows
RADIO RANGE TEST? Press YES
again. The detector LED starts
flashing and keypad display shows
TEST IN PROGRESS.
Manufactured by RSI VIDEO TECHNOLOGIES
security systems. The
TM

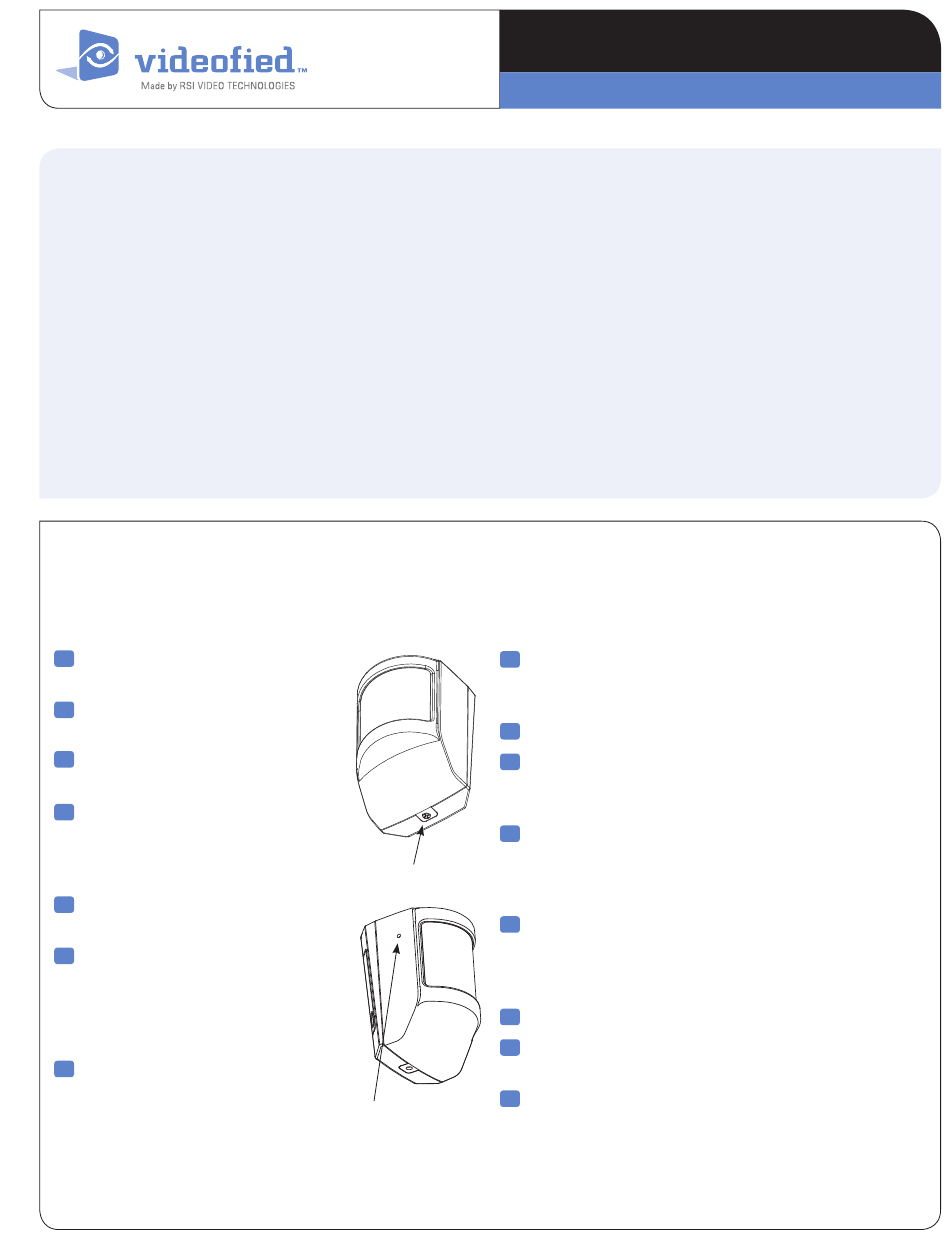

Screw
Program Button
PIR Model ITR110/ITR600
I N S T A L L A T I O N I N S T R U C T I O N S
Installation Guidelines
For easier installation, programming and RF testing
should be done to check for good communication between
the control panel and all system devices before mounting
system devices. Install the detector and other system
devices in the following order:
>
Programming/RF Testing - program detector
and all other devices into the control panel and test
RF communication from each intended device location
to the control panel.
>
Mounting - mount detector at the tested location.
8
Take detector to its intended mounting location and
make sure LED flashes continuously, indicating good
communication with control panel.
9 Press YES to end radio range test, then press ESC/NO.
10
The display shows AREA ASSIGNMENT AREA:
1. Press either arrow button repeatedly until desired
AREA number appears, then press YES.
1 1
The display shows NAME + LOCATION. Enter appropriate
device name/location (up to 16 characters), then press
YES. The display shows the device number and name
for your verification.
12
Press YES. The display shows VERIFY DETECTION?
Press YES again and verify detector operation. For
example, wave your hand in front of detector to
activate its LED indicating detection.
13
Press YES to end detection verification.
14
The display shows ADD A NEW DEVICE?
Repeat steps 1 - 13 for remaining detectors.
15
When finished programming, put control panel
into operating mode.
