INSTALL SHEET
Product Summary

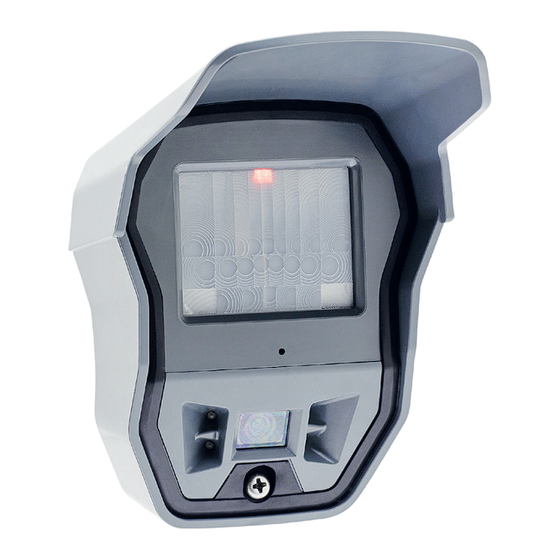

The OMV 210/611/712/713/810 MotionViewer is a wireless,
battery operated, motion activated or electrically activated
outdoor camera designed for use in Videofied
• Powered by 4 Lithium batteries for extended battery life.
• 90° multi-purpose lens (by default).
• Provided optional lenses: curtain, pet-immune or long range beam.
• 4 infrared LEDs for 12m night vision.
• Standard detection distance up to 12 meters (29ft for OMV611).
• Fully weatherproof
(-25°C/+70°C) for outdoor use or non-temperature controlled
environments.
• Wall, cover and movement tamper triggered by tilt sensor.
• Transmits check-in/status signal every 8 minutes.
• 3 wired programmable inputs.
• 1 wired programmable output triggered on detection.
Installation Guidelines
For easier installation, programming and RF testing should be done to check
for good communication between the control panel and all system devices
before mounting system devices.
Install the detector and other system devices in the order of the following
steps:
>
Programming/RF Testing - program detector and all other devices into the
control panel and test RF communication from each intended device location
to the control panel.
>
Mounting - mount detector at the tested location.
Mounting
> Use proper tools and hardware.
>
Mount camera between 2.5 m to 3,5 m height.
>
The OMV MotionViewer detection distance may vary depending on
mounting (height, tilt). The OMV is not suitable to protect an area, it needs to
be used to protect an access point or any property.
>
Mount detector aimed toward the spot to protect.
> In order to reduce false alarms, do not aim the detector toward vegetation,
a road, or unlimited space.
> Do not cover the Fresnel lens. Use only the provided masking kit to block
detection towards specific spots (trees, bushes, etc.).
OMV OUTDOOR MOTION VIEWER
®
security systems.
(IP54) and temperature resistant
DOC. - REF. 213-OMV
VERSION : MAY 2017
MB110 Mounting kit for
Outdoor MotionViewer
