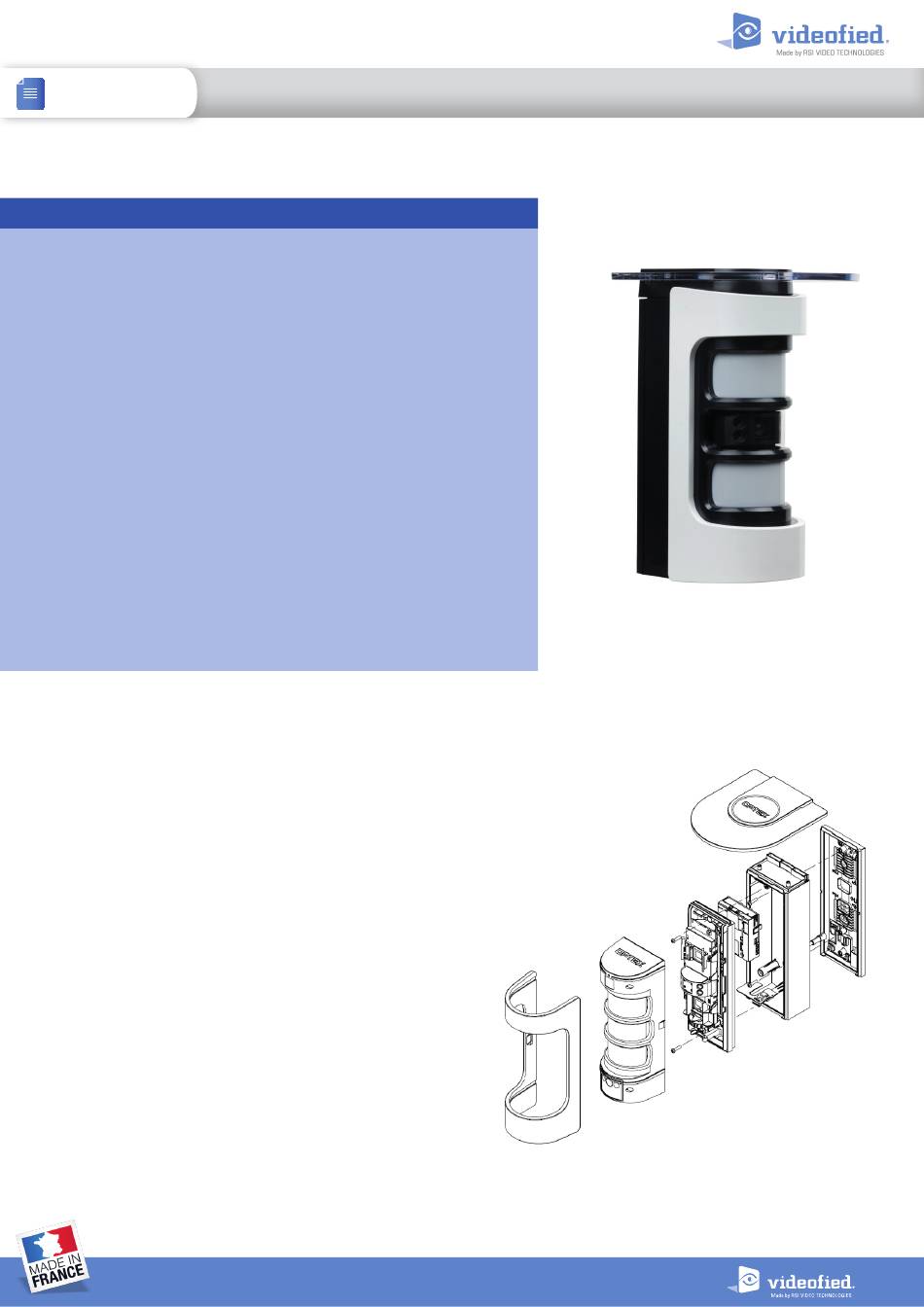

OMV-VX OUTDOOR VISUAL VERIFICATION DETECTOR
INSTALL SHEET
Product Summary
The OMV-VX outdoor visual verification detector is a wireless,
battery operated, motion activated outdoor camera designed for
®
use in Videofied
security systems.
• Powered by 3 Lithium batteries for extended battery life.
• 4 infrared LEDs for 12m night vision.
• Fully
weatherproof
(-20°C/+60°C).
• 12 m (40 ft.) by 90 degree flexible detection pattern adjustable
to 5 ranges
• SMDA Logic for advanced temperature compensation and
environmental noise immunity.
• Easy masking of sensitive objects.
• Over spill protection
• Double Conductive Shielding against bright light disturbance.
• Transmits check-in/status signal every 8 minutes.
Installation Guidelines
For easier installation, programming and RF testing should be done
before mounting to check for good communication between the
control panel and all system devices.
Install the detector and other system devices in the order of the
following steps:
>
Programming/RF Testing - program detector and all other
devices into the control panel and test RF communication from
each intended device location to the control panel.
>
Mounting - mount detector at the tested location.
Mounting
>
Use proper tools and hardware.
>
Mount camera between 0.8 m to 1,2 m height.
>
In order to reduce false alarms, do not aim the detector toward
vegetation, a road, or unlimited space.
>
Do not cover the Fresnel lens.
(IP55)
and
temperature
resistant
DOC. - REF. 213-OMV-VX
VERSION : FEBRUARY 2017
1
