Enhanced Zone Programming - Safewatch QuickConnect Plus Programming Manual

This interactive menu mode is used to program zone numbers, zone types, alarm and report codes, and to
identify the type of loop input device and can be used for entering 5800 Series transmitter serial numbers. Press
656 while in programming mode.
Note: Entering a number other than the one specified may give unpredictable results.
A01 A01 A01 A01
ZONE NUMBER ZONE ZONE ZONE NUMBER NUMBER NUMBER
b
ZONE ZONE TYPE TYPE
ZONE ZONE TYPE TYPE
C C C C
REPORT REPORT REPORT REPORT CODE CODE CODE CODE
d
INPUT TYPE INPUT TYPE
INPUT INPUT TYPE TYPE
E E E E
LOOP#/AUTO LOOP LOOP LOOP AUTO AUTO AUTO LEARN LEARN LEARN LEARN
E E E E 2L LEARNED 2L LEARNED
2L LEARNED 2L LEARNED
LOOP LOOP LOOP#/AUTO LEARN LOOP AUTO LEARN AUTO LEARN AUTO LEARN

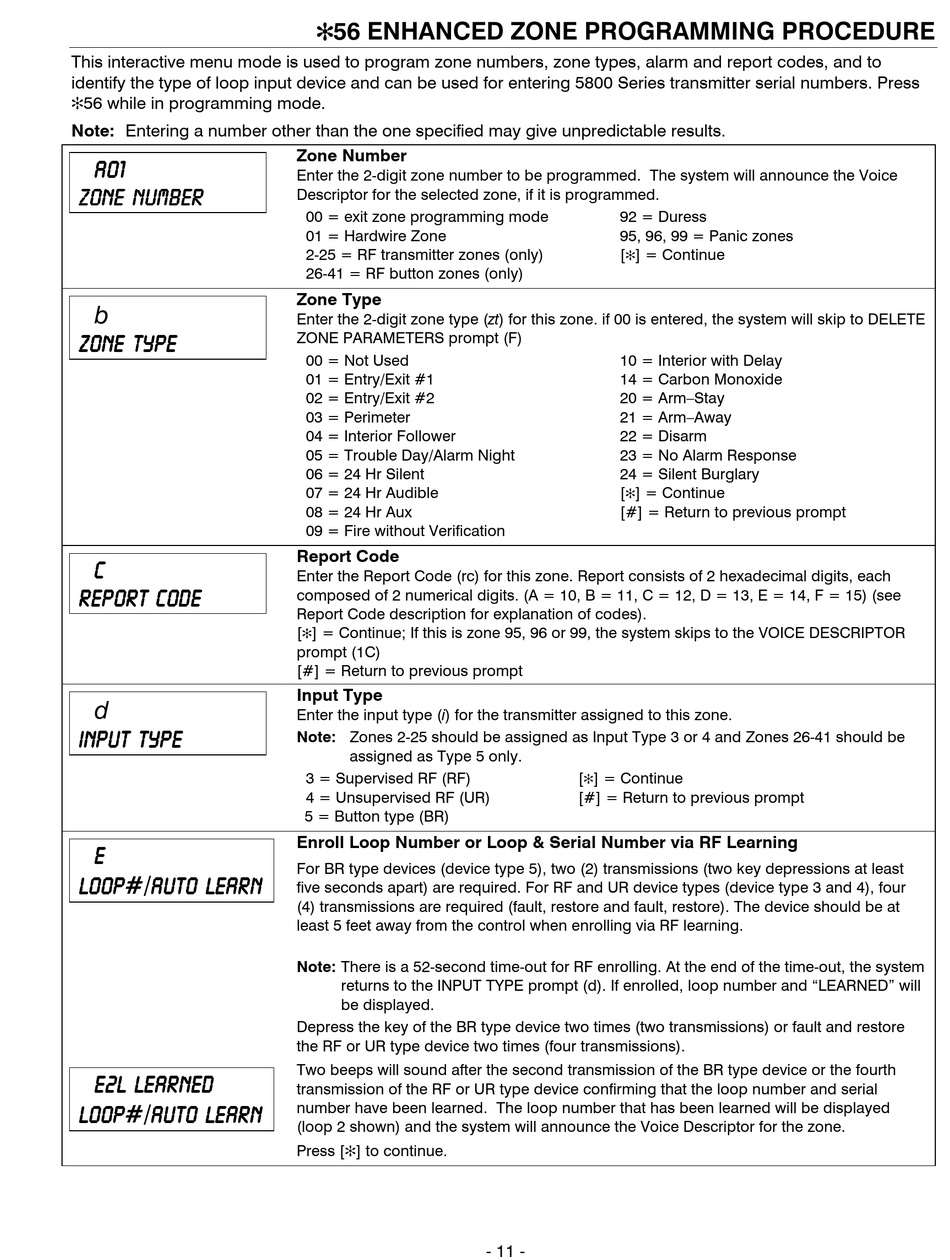

6 6 6 6 56 ENHANCED ZONE PROGRAMMING PROCEDURE
Zone Number
Enter the 2-digit zone number to be programmed. The system will announce the Voice
Descriptor for the selected zone, if it is programmed.
00 = exit zone programming mode
01 = Hardwire Zone
2-25 = RF transmitter zones (only)
26-41 = RF button zones (only)
Zone Type
Enter the 2-digit zone type (zt) for this zone. if 00 is entered, the system will skip to DELETE
ZONE PARAMETERS prompt (F)
00 = Not Used
01 = Entry/Exit #1
02 = Entry/Exit #2
03 = Perimeter
04 = Interior Follower
05 = Trouble Day/Alarm Night
06 = 24 Hr Silent
07 = 24 Hr Audible
08 = 24 Hr Aux
09 = Fire without Verification
Report Code
Enter the Report Code (rc) for this zone. Report consists of 2 hexadecimal digits, each
composed of 2 numerical digits. (A = 10, B = 11, C = 12, D = 13, E = 14, F = 15) (see
Report Code description for explanation of codes).
[ ] = Continue; If this is zone 95, 96 or 99, the system skips to the VOICE DESCRIPTOR
6
prompt (1C)
[#] = Return to previous prompt
Input Type
Enter the input type (i) for the transmitter assigned to this zone.
Note: Zones 2-25 should be assigned as Input Type 3 or 4 and Zones 26-41 should be
assigned as Type 5 only.
3 = Supervised RF (RF)
4 = Unsupervised RF (UR)
5 = Button type (BR)
Enroll Loop Number or Loop & Serial Number via RF Learning
For BR type devices (device type 5), two (2) transmissions (two key depressions at least
five seconds apart) are required. For RF and UR device types (device type 3 and 4), four
(4) transmissions are required (fault, restore and fault, restore). The device should be at
least 5 feet away from the control when enrolling via RF learning.
Note: There is a 52-second time-out for RF enrolling. At the end of the time-out, the system
returns to the INPUT TYPE prompt (d). If enrolled, loop number and "LEARNED" will
be displayed.
Depress the key of the BR type device two times (two transmissions) or fault and restore
the RF or UR type device two times (four transmissions).
Two beeps will sound after the second transmission of the BR type device or the fourth
transmission of the RF or UR type device confirming that the loop number and serial
number have been learned. The loop number that has been learned will be displayed
(loop 2 shown) and the system will announce the Voice Descriptor for the zone.
Press [6] to continue.
92 = Duress
95, 96, 99 = Panic zones
[ ] = Continue
6
10 = Interior with Delay
14 = Carbon Monoxide
20 = Arm–Stay
21 = Arm–Away
22 = Disarm
23 = No Alarm Response
24 = Silent Burglary
[ ] = Continue
6
[#] = Return to previous prompt
[ ] = Continue
6
[#] = Return to previous prompt
